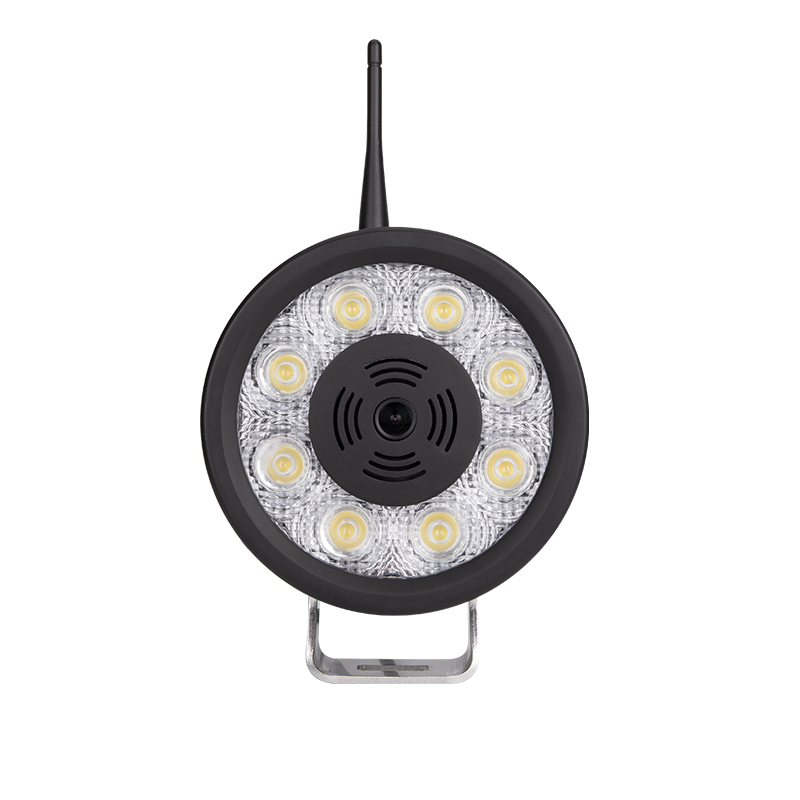

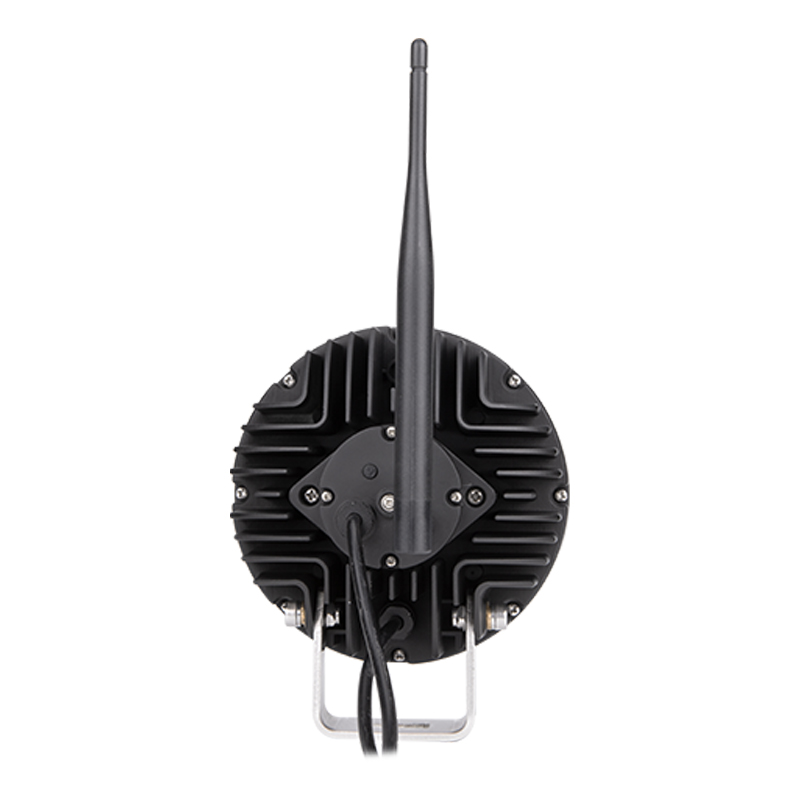

Wireless Led Working Light
Model:WLWC-1
Image Sensor 1/2.9 GC2053
TV System NTSC/PAL
Effective Pixels 1280（H）ⅹ960（V）
Sensing Area 2.8μmX2.8μm
Sync. System Internal
Resolution 130W
Minimum Illumination 0.1 Lux
Microphone Optional
IR LED Qty white light*8PCS
Light angle 120°
Night vision distance 30-50m
TV System NTSC/PAL
Effective Pixels 1280（H）ⅹ960（V）
Sensing Area 2.8μmX2.8μm
Sync. System Internal
Resolution 130W
Minimum Illumination 0.1 Lux
Microphone Optional
IR LED Qty white light*8PCS
Light angle 120°
Night vision distance 30-50m
Features
2.4GHz wireless technology for video signal transmission,
achieving a transmission distance of up to 140 meters in open areas
night vision for enhanced visibility in low-light conditions
achieving a transmission distance of up to 140 meters in open areas
night vision for enhanced visibility in low-light conditions
Parameter
| Image Sensor | 1/2.9 GC2053 |
| TV System | NTSC/PAL |
| Effective Pixels | 1280（H）ⅹ960（V） |
| Sensing Area | 2.8μmX2.8μm |
| Sync. System | Internal |
| Resolution | 130W |
| Minimum Illumination | 0.1 Lux |
| Microphone | Optional |
| IR LED Qty | white light*8PCS |
| Light angle | 120° |
| Night vision distance | 30-50m |
| Microphone | NO |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 43dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Lens | 1.98mm |
| Lens Angle | H：110° V：80° D：125° |
| LED lamp plate voltage | DC12-24V |
| LED lamp board power | 18W |
| Luminous flux / lumen | 1154/lm |
| Color temperature | 6500K |
| Lens material | PC |
| Power Supply | DC12V |
| Current Drain | 145mA±20mA (day)/1.6A±0.2A(night vision) |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
