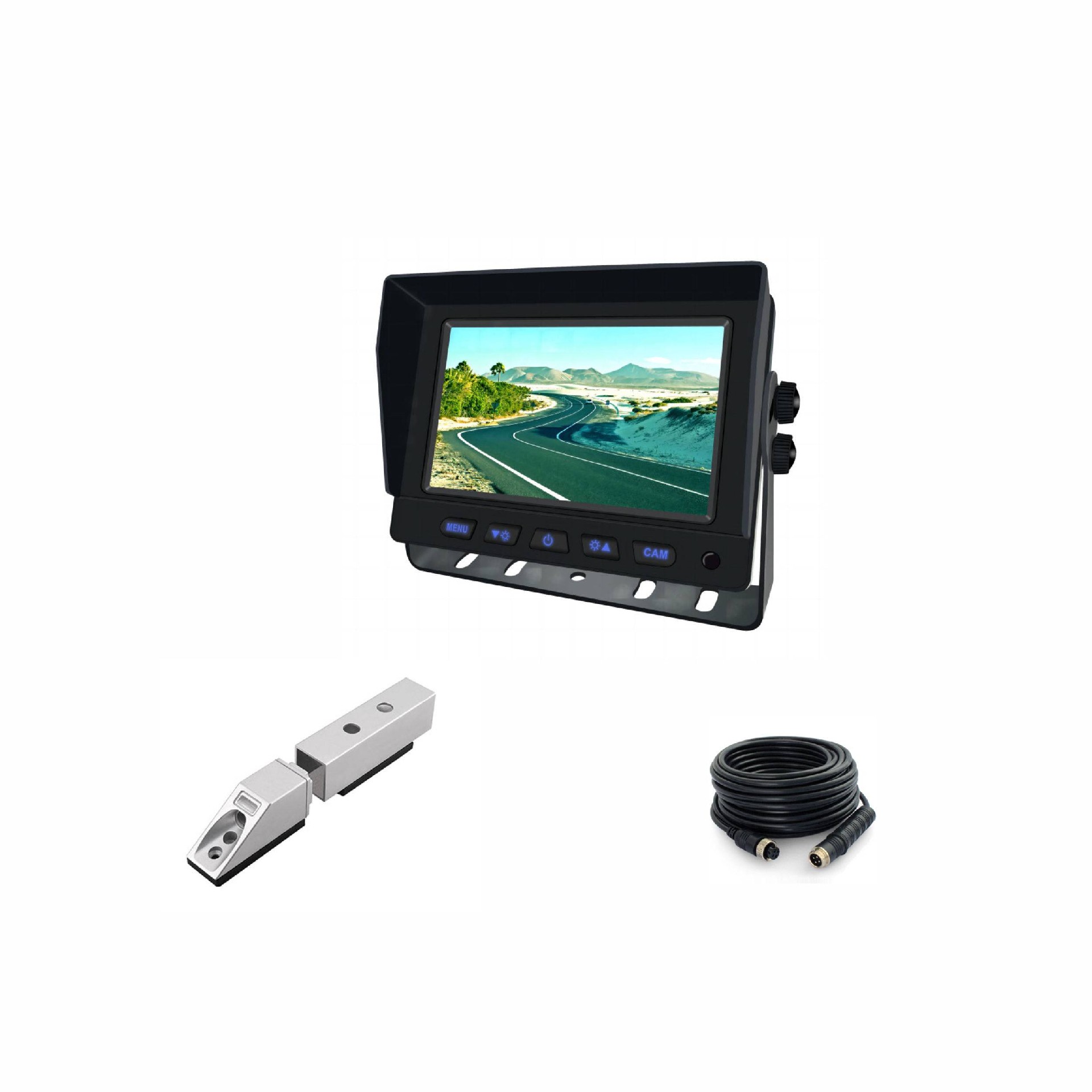

AHD Waterproof Froklift System
Model:

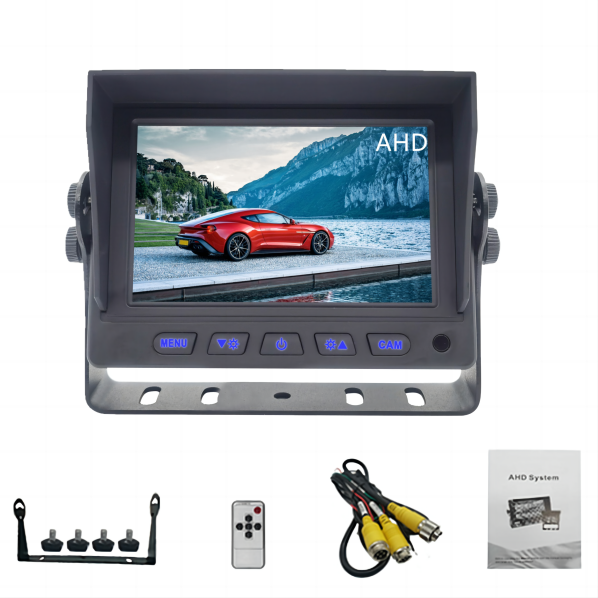

5"inch AHD vehicle mounted display (Detachable sunshade)
AV Resolution:800*R.G.B*480 Back Light Luminance：LED, 500cd/㎡
View angle: L/R:70°,UP:50°,down: 70° degree
2channel HD video input, single image display,support720P/960P/1080P (Video Compatibility: CVBS /AHD)
AV Resolution:800*R.G.B*480 Back Light Luminance：LED, 500cd/㎡
View angle: L/R:70°,UP:50°,down: 70° degree
2channel HD video input, single image display,support720P/960P/1080P (Video Compatibility: CVBS /AHD)
Features
Audio Input：Built-in speaker，1 way audio input(V2)
Automatically switch to V2 when reversing，Reverse reference point
(optional)3 channel HD video input, single image display, support720P/960P/1080P (Video Compatibility: CVBS /AHD)
Audio Input：Built-in speaker，1 way audio input(V2)
3 ways Trig Trigger priority:V2>V1>V3
Reference point and time control for reverse gear setting
System:PAL&NTSC auto-switching
Automatically switch to V2 when reversing，Reverse reference point
(optional)3 channel HD video input, single image display, support720P/960P/1080P (Video Compatibility: CVBS /AHD)
Audio Input：Built-in speaker，1 way audio input(V2)
3 ways Trig Trigger priority:V2>V1>V3
Reference point and time control for reverse gear setting
System:PAL&NTSC auto-switching
Parameter
Application
7"-inch AHD vehicle mounted display (Detachable sunshade)
Waterproof Monitor
AV Resolution:1024*R.G.B*600
Back Light Luminance：LED,500-650cd/㎡
View angle: L/R:85°,UP:85°,down:85° degree
2 channel HD video input, single image display, support720P/960P/1080P (Video Compatibility: CVBS /AHD)
Forklift camera
1/3＂AHD CMOS，1080P，200W，0.01Lux/F1.2 ,View angle:45°PAL
10 M extend cable with 4 PIN lock connector
5M/10/15M/20 M extend cable with 4 PIN lock connector ( optional）
Accessories
