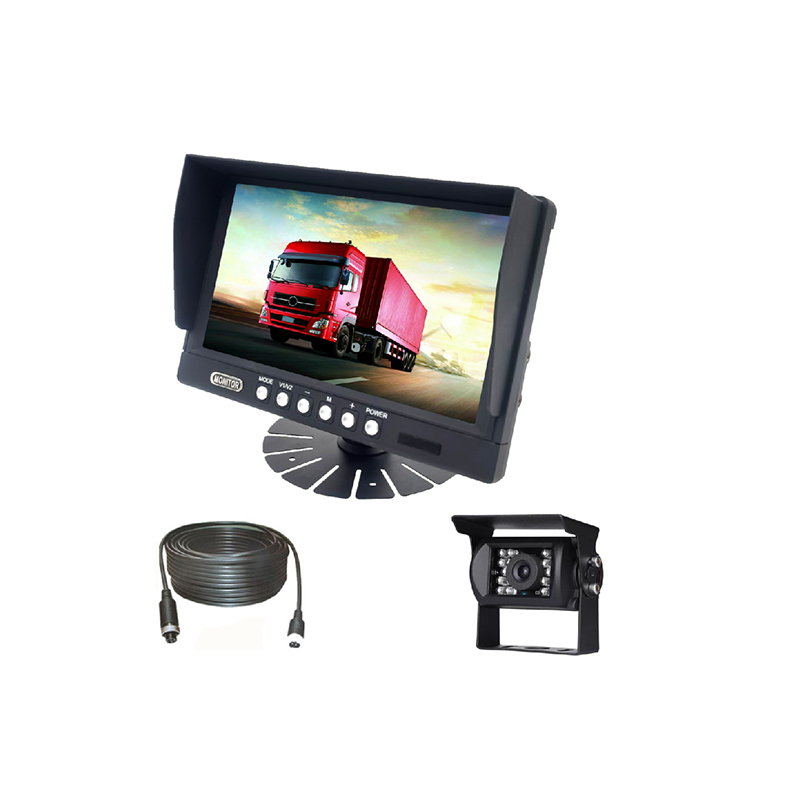

9 Inch Car Rear View S ystem
Model:
Resolution: 800*R.G.B*480 ，
Brightness：LED,300-350cd/m2
View angle:L/R 70°,UP:50°,down: 70° degree
4 ways Trig function， 1 way audio inputfor V1
Full image/2 images/3images/4 images adjustable
4 ways Trig Trigger priority:V2>V1>V3>V4)
Brightness：LED,300-350cd/m2
View angle:L/R 70°,UP:50°,down: 70° degree
4 ways Trig function， 1 way audio inputfor V1
Full image/2 images/3images/4 images adjustable
4 ways Trig Trigger priority:V2>V1>V3>V4)
Features
System:PAL&NTSC auto-switching
with light sensor receiver,can adjust screen brightness automatically day & night
Power supply:DC 12V-36V input,12V output Operating
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Apearance color: black rubber painte
standard：Metal U type bracket
Butterfly bracket/fan bracket/Suction Cup holder/Headrest frame(optional)
with light sensor receiver,can adjust screen brightness automatically day & night
Power supply:DC 12V-36V input,12V output Operating
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Apearance color: black rubber painte
standard：Metal U type bracket
Butterfly bracket/fan bracket/Suction Cup holder/Headrest frame(optional)
Parameter
7/9 inch Stand Alone Monitor(with shade)
Resolution:800*R.G.B*480
Back Light Luminance：LED400cd/㎡（
Back Light Luminance：LED350cd/㎡
View angle:L/R 70°,UP:50°,down: 70° degree
2 way video input,2 way audio input,
Automatically switch to V2 when reversing
Power supply:DC 9V-36Vinput，12V output
2videp 4pin connector
bus/truck camera ( CCD420TVL，120 degree view angle )
High resolution camera
20 M extend cable with 4 PIN lock connector
Application
Accessories
