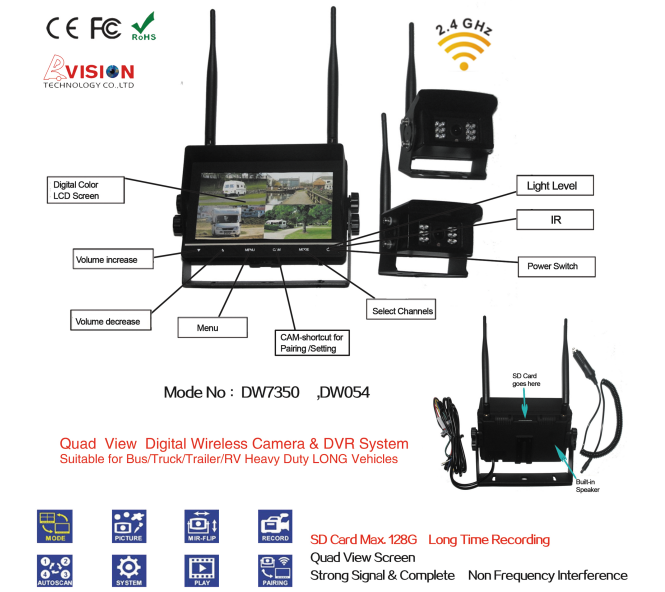

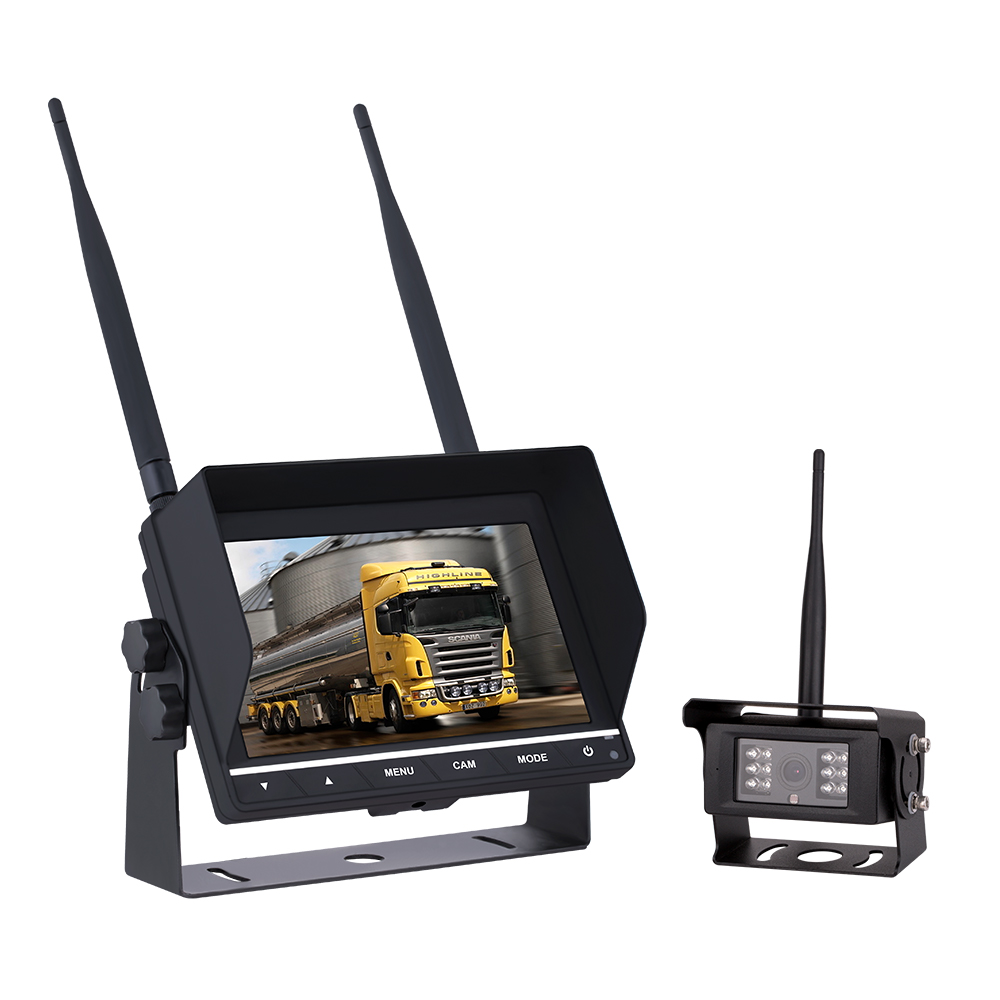

Digital Wireless System
Model:
Resolution 800 x 3 (RGB) x 480
Aspect Ratio 16:09
Channel 4 channels(quad view)
Sensor 1/3 CMOS 1089
Resolution: N:510×492 pixels P: 500×582 pixels
TV line 420
Lens: 2.8mm
Min illumination: 0Lux (LED ON)
IR led: 12pcs
Night Vision distance: 45ft
Waterproof IP69K
Split mode, auto-scan mode and single-display mode available.
Auto pairing happens when camera is activated.
Support 4-channel composite and single-channel recording in AVI signal format.
Auto dim function available.
Full-function remote control.
On-board speaker.
SD- 128G
Auto switch to the working channel when trigger is activated
MONITOR (Receiver) | |
LCD size | 7" Digital Panel |
Resolution | 800 x 3 (RGB) x 480 |
Aspect Ratio | 16:09 |
Channel | 4 channels(quad view) |
Operating Frequency | 2400 - 2483.5 MHz |
Receiving Sensitivity | -89 dBm |
Decompression Form | MPEG4 |
Transmit Output Power | 17 dBm |
Modulation | 2.4G FSK/GFSK |
Time Delay | 120ms |
Transmitting Distance | 30-120 M |
Micro-SD /TF Card | Max. 128G |
System Format | PAL / NTSC |
Power Supply | DC 10-32V |
Power Consumption | Max. 6W |
Loudspeaker | 1.5W/8Ω |
Operating temperature | -20~+70ºC,RH90% |
Storage temperature | -30~+80ºC,RH90% |
CAMERA (transmitter) | |
Sensor | 1/3 CMOS 1089 |
Resolution: | N:510×492 pixels P: 500×582 pixels |
TV line | 420 |
Lens: | 2.8mm |
Min illumination: | 0Lux (LED ON) |
IR led: | 12pcs |
Night Vision distance: | 45ft |
Waterproof | IP69K |
View angle: | 120° |
Power voltage: | 12-24V |
Operating temperature | -20~+70ºC,RH90% |
Storage temperature | -30~+80ºC,RH90% |
