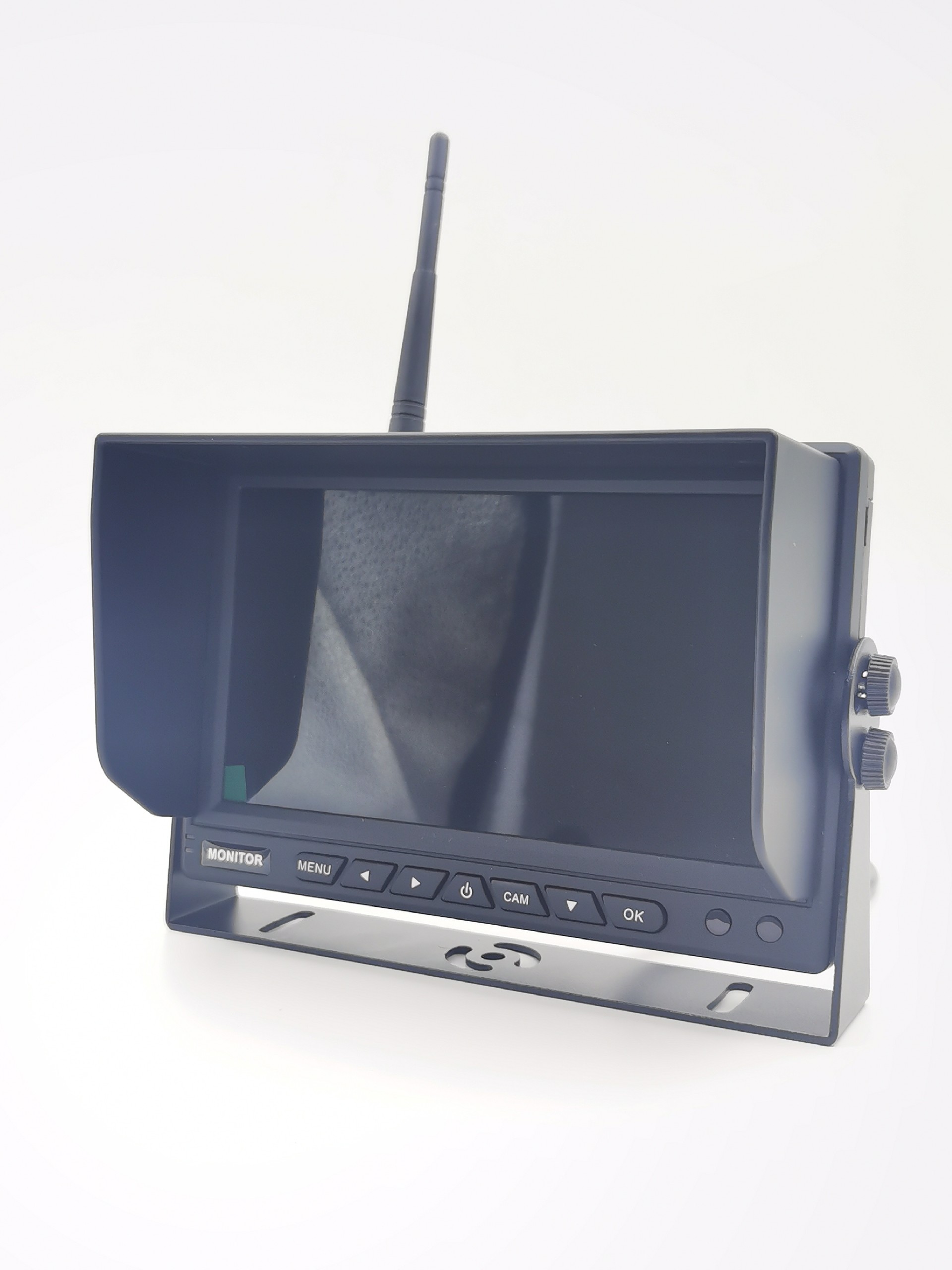

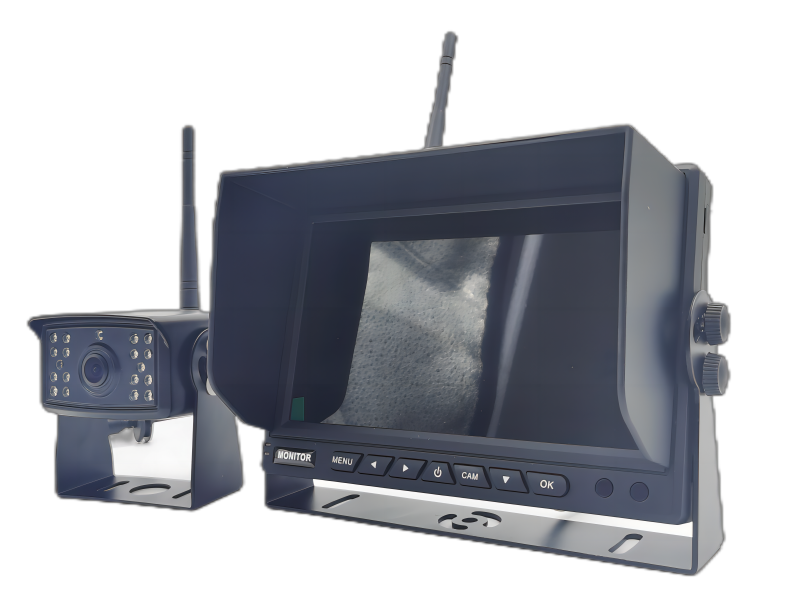

7 Inch AHD Wireless Rearview System
Model:
Resolution:1024*R.G.B*600
Brightness：LED，500-650cd/㎡
View angle: L/R:85°,UP:85°,down:85° degree
1 way 2.4G wireless video signal input,support 720P@25/30
2.4G in open area:200M
Image sensor:1/3" 1.0MP CMOS Sensor 2.8MM
Brightness：LED，500-650cd/㎡
View angle: L/R:85°,UP:85°,down:85° degree
1 way 2.4G wireless video signal input,support 720P@25/30
2.4G in open area:200M
Image sensor:1/3" 1.0MP CMOS Sensor 2.8MM
Features
CDS night version change:Change to black and white image automatically in the night
image angle:120°
Power supply :12V~24V
Water proof class :IP67
Aluminum alloy shell, outside hanging design
Watrproof .shockproof,infrared night vision, Resistance to high temperature and humidity
image angle:120°
Power supply :12V~24V
Water proof class :IP67
Aluminum alloy shell, outside hanging design
Watrproof .shockproof,infrared night vision, Resistance to high temperature and humidity
Parameter
Resolution | 1024*R.G.B*600 |
Brightness： | LED，500-650cd/㎡ |
View angle | L/R85°,UP85°,down85° degree |
Image sensor | 1/3" 1.0MP CMOS Sensor 2.8MM |
Effective Pixel | NTSC/PAL 1280(H)*720(V) 100W |
Minimum illumination | 05.lux |
CDS night version change | Change to black and white image automatically in the night |
image angle | 120° |
Power supply | 12V~24V |
Water proof class | IP67 |
Application
Accessories
