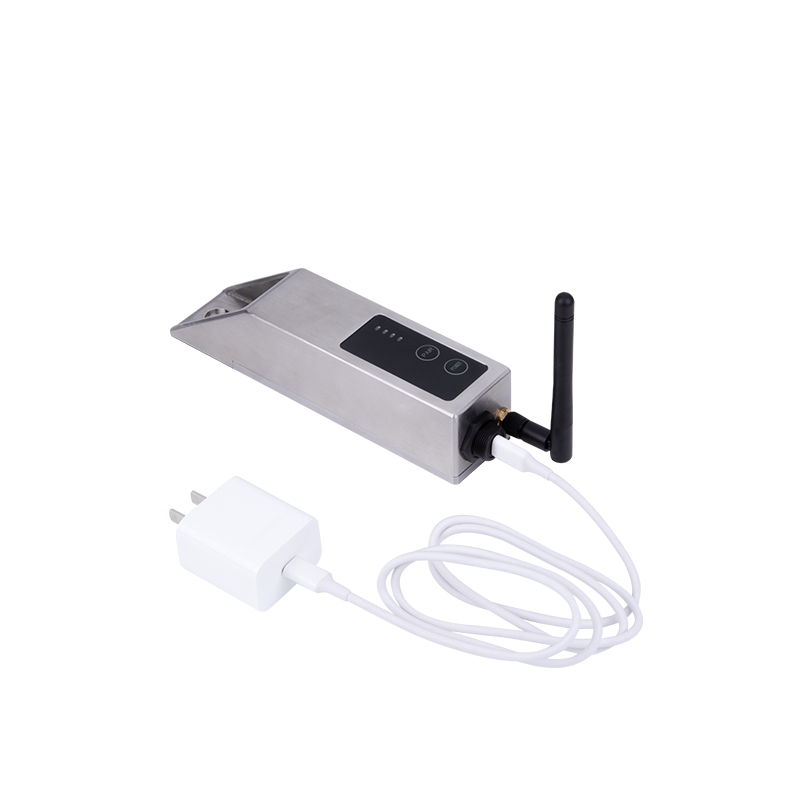

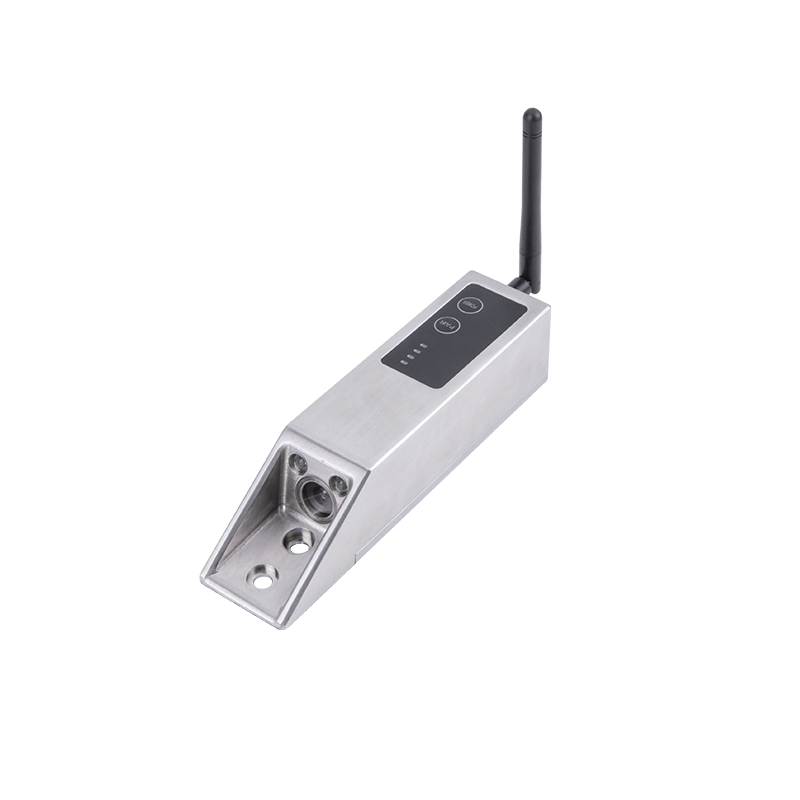

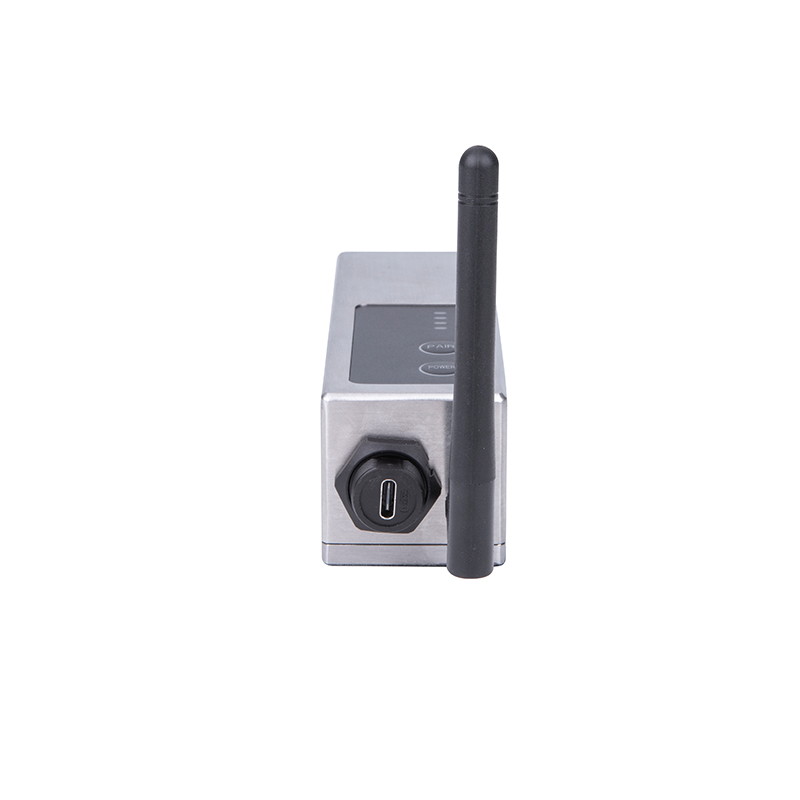

Waterproof Wireless Forklift Camera
Model:FC-03
TV System NTSC/PAL
Effective Pixels 1280(H) X 720(V)
Sync. System Internal
Resolution 720P
Lens Focal Length 6mm
Lens Angle 83°
Lens Angle H 52°/V 30°/D 55°
Transmission Distance 30m
Minimum Illumination 0.1 Lux
LED Qty 2PCS
With laser positioning function
Image can be flipped to adapt to different forklifts
Noise reduction technology enhances image clarity
Quick startup, instant connection
Built-in battery for long-lasting power
Supports various fast charging methods, strong voltage adaptability
LED indicator displays battery level
Long-distance connection, stable signal
IP68 waterproof design, suitable for outdoor use
Magnetic design for convenient installation
Image Sensor | 1/2.9 CMOS |
Effective Pixels | 1280(H) X 720(V) |
Resolution | 720P |
Minimum Illumination | 0.1 Lux |
LED Qty | 2PCS |
Battery Indicator Light | 4PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | Interlace |
Signal to Noise Ratio | Better than 38dB |
Dynamic Balance | 81dB |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Built-in Power | 3.7V/5000mAh |
Charging | Supports voltage input of 5V@3A/9V@2A/12V@1.5A, with a maximum charging power of 18W |
Fast Charging Protocol | QC2.0/QC3.0/PD2.0/PD3.0/FCP/AFC |
Power Consumption | 1.85W |
Standard operating time at room temperature | 10 Hours |
Charging Time | 2.3 Hours |
Image Latency | ＜200ms |
Waterproof Grade | IP68 |
Lens Focal Length | 6mm |
Lens Angle | 83° |
Lens Angle | H 52°/V 30°/D 55° |
Transmission Distance | 30m |
Operating Temperature | -20℃-60℃,RH 95% MAX |
Storage Temperature | -20℃-60℃,RH 95% MAX |
