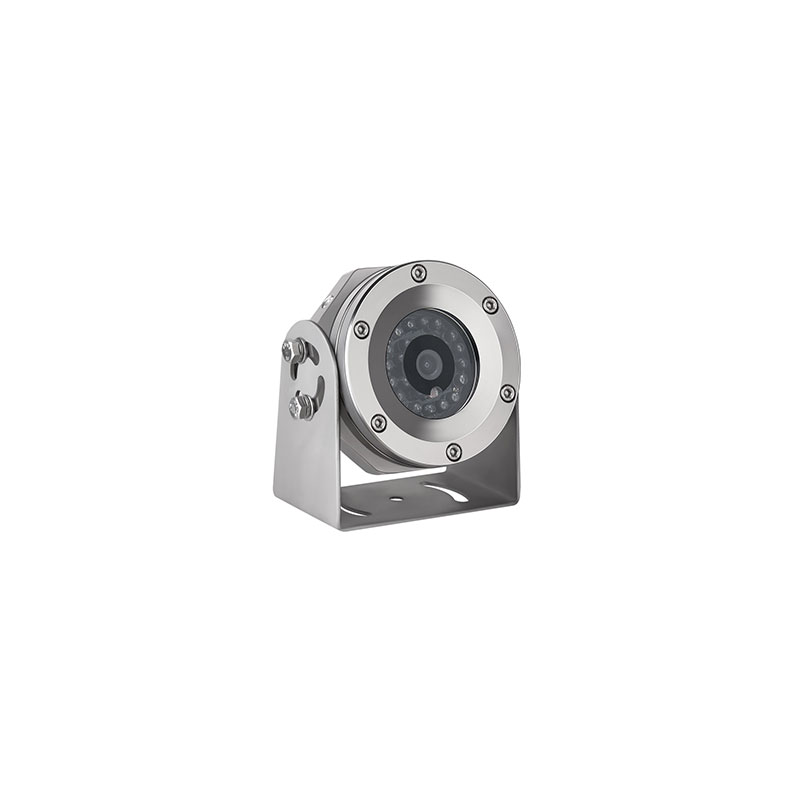

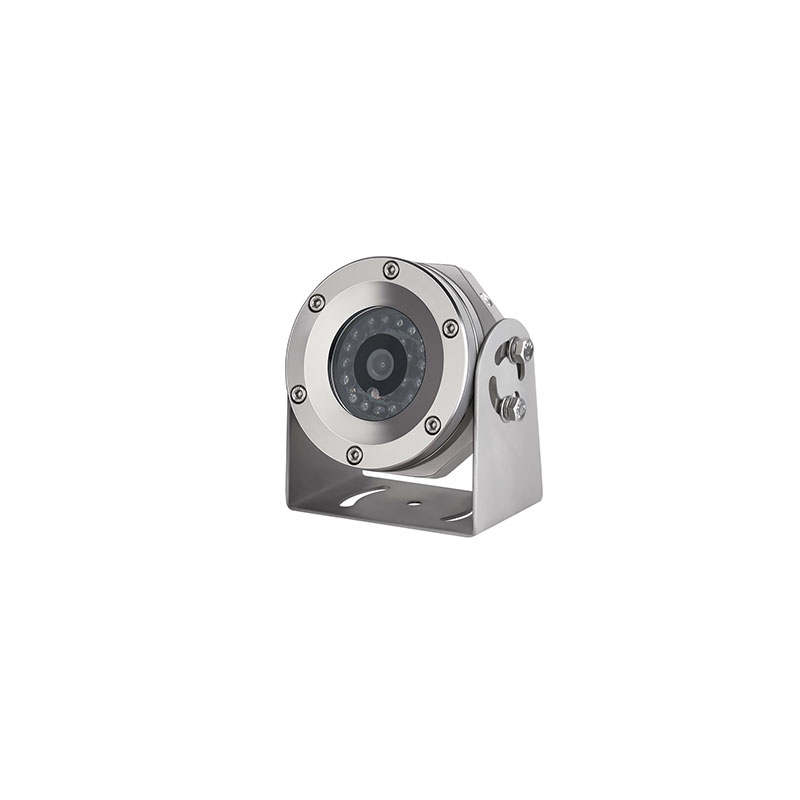

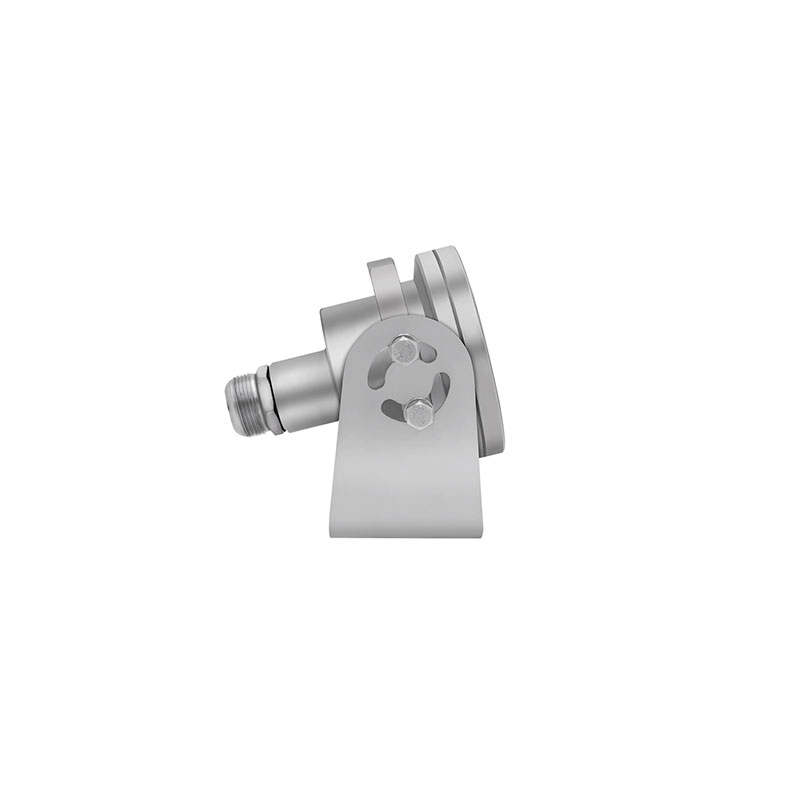

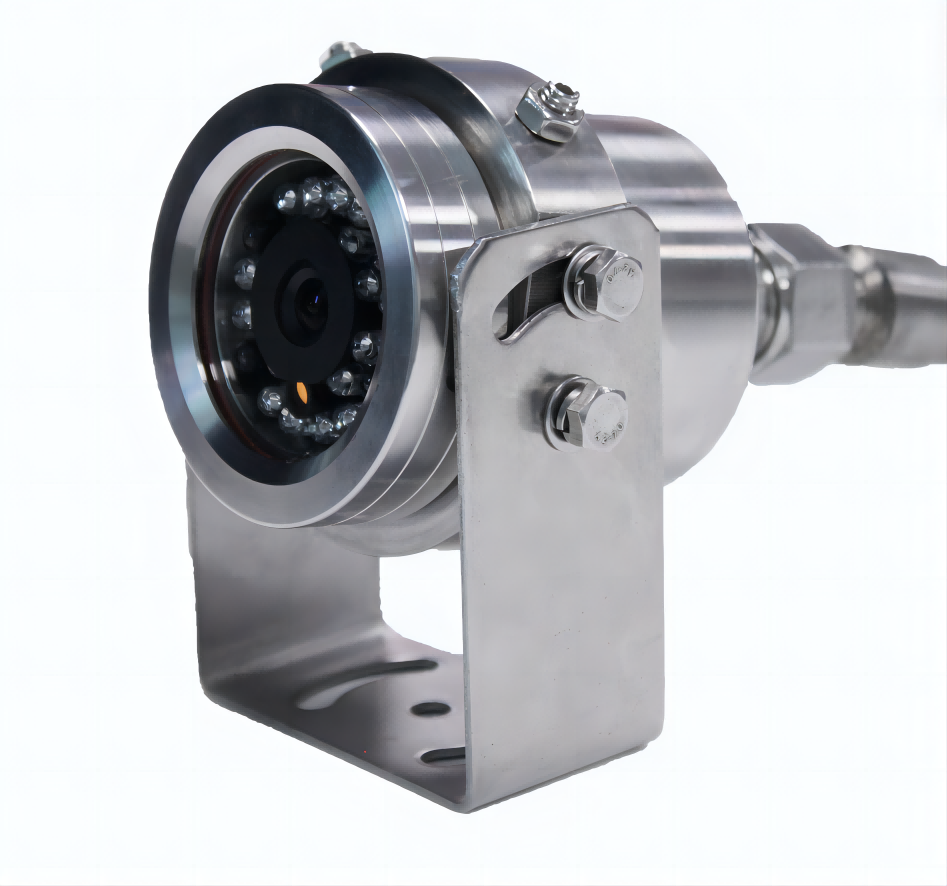

Explosion-proof Camera
Model:CA-645
304 Stainless steel anti-explosion
1/3” SONY EX view HAD CCD II
TV line: 700TVL
Viewing Angle: 92°/ 69°
IR LED: 24pcs
IP rating: IP69K
1/3” SONY EX view HAD CCD II
TV line: 700TVL
Viewing Angle: 92°/ 69°
IR LED: 24pcs
IP rating: IP69K
Features
Anti-explosion Camera
-304 stainless steel molded in integral with polished finish
Anti-explosion, waterproof, dustproof, anti-shock, small size
Installation angle can adjustable
Built-in 15-meter infrared lamp for night
Mainly used in inflammable,explosive workplace and transport vehicles for inflammables
-304 stainless steel molded in integral with polished finish
Anti-explosion, waterproof, dustproof, anti-shock, small size
Installation angle can adjustable
Built-in 15-meter infrared lamp for night
Mainly used in inflammable,explosive workplace and transport vehicles for inflammables
Parameter
Image sensor | 1/3" SONY CCD | |
Resolution | N:976×494 pixels | |
Horizontal Resolution | 700TVL | |
TV System | NTSC/PAL | |
Lens | 3.6mm | |
View angle | 90 degree (75Horizotal,60 Vertical) | |
Power supplier | 12VDC | |
Current consumption | 150mA | |
Power consumption | 1.8W @ 12VDC | |
Min illumination | 0 Lux (LED ON) Night Vision | |
IR LED | 24 pcs (Night vision distance 10-12m) | |
Waterproof rating | IP69K | |
Packing weight | 1.5KG | |
Dimension(WxHxD) | 86mm x 110mm x 119mm (MAX) | |
Operation temperature | -20 ~ +70 C-degress |
