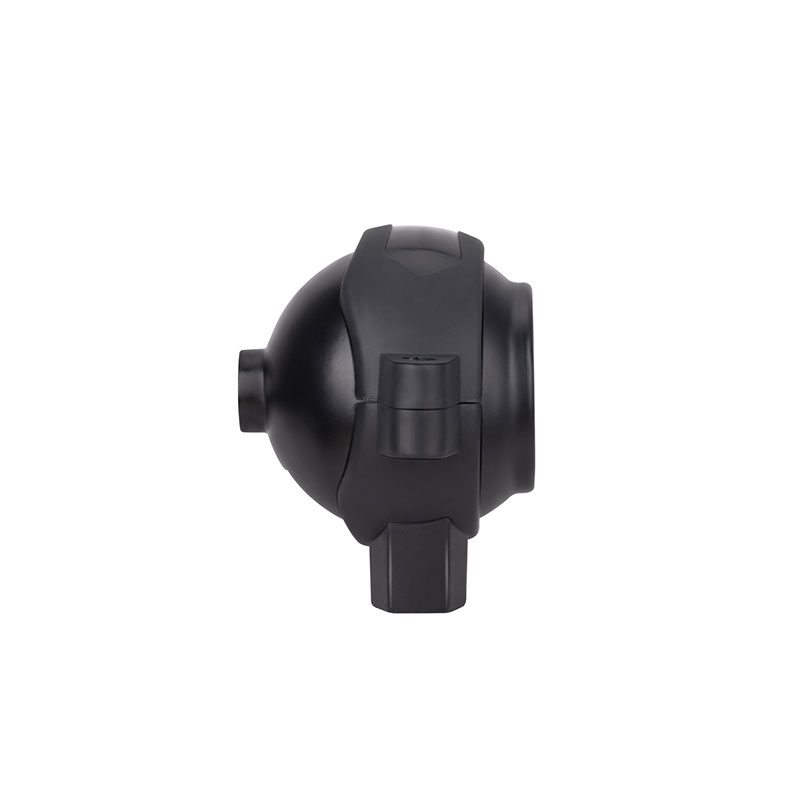

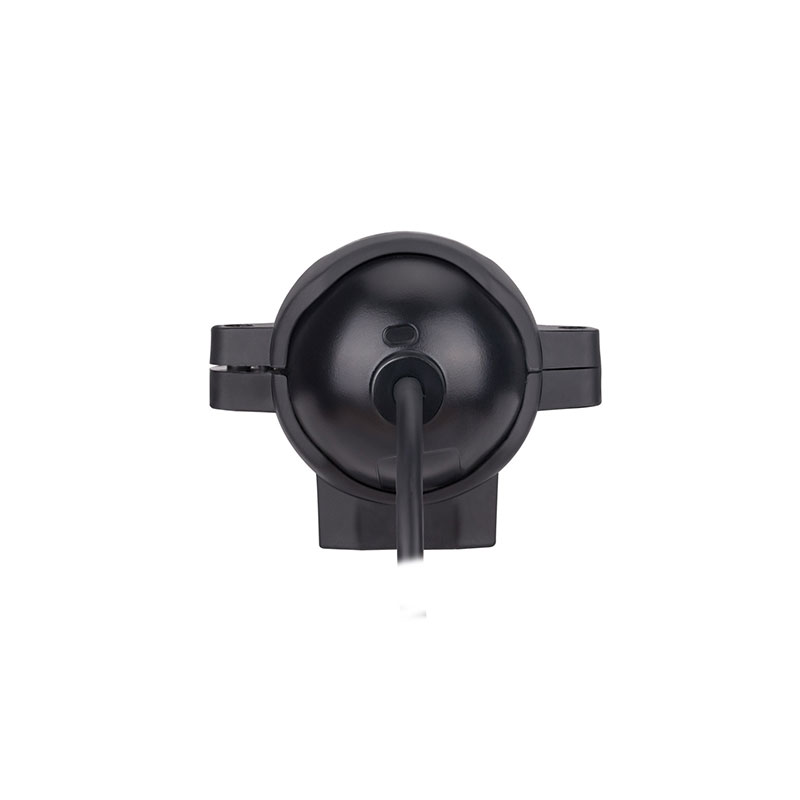

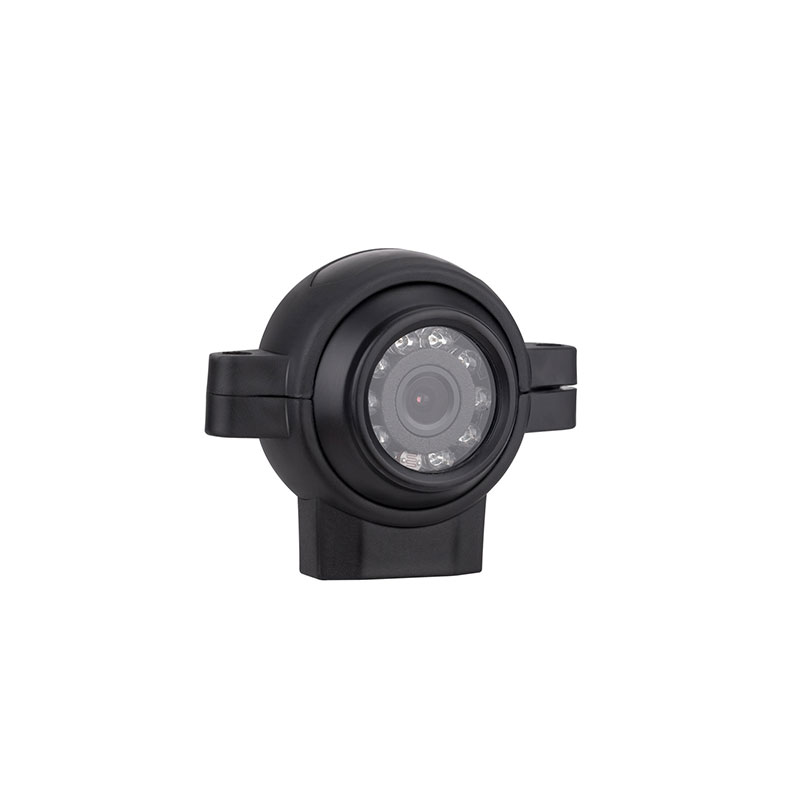

Side View Forklift Camera
Model:CA-730
* Sharp CCD
Lens:2.9mm fixed lens
*View angle: 130°
*Waterproof: IP68
Lens:2.9mm fixed lens
*View angle: 130°
*Waterproof: IP68
Features
Aluminum alloy shell is sprayed with anti-corrosion and heat dissipation
10 pcs 850nm infrared LED light with high light intensity and long distance
After fully sealed vacuum, nitrogen is filled to prevent fogging
10 pcs 850nm infrared LED light with high light intensity and long distance
After fully sealed vacuum, nitrogen is filled to prevent fogging
Parameter
TV System | NTSC/PAL |
Effective Pixels | 976(H)×592(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 9PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
