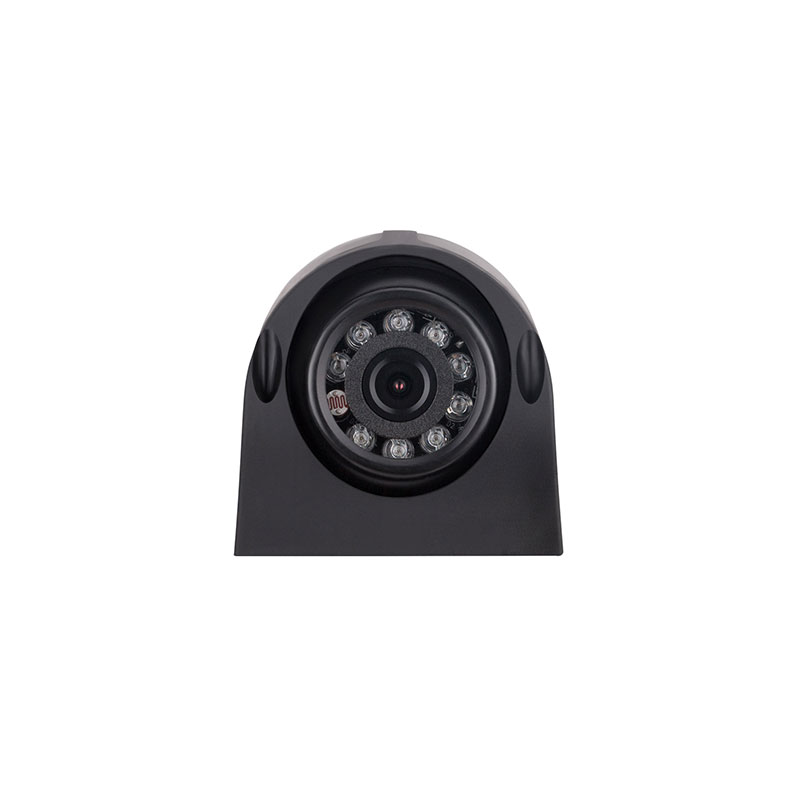

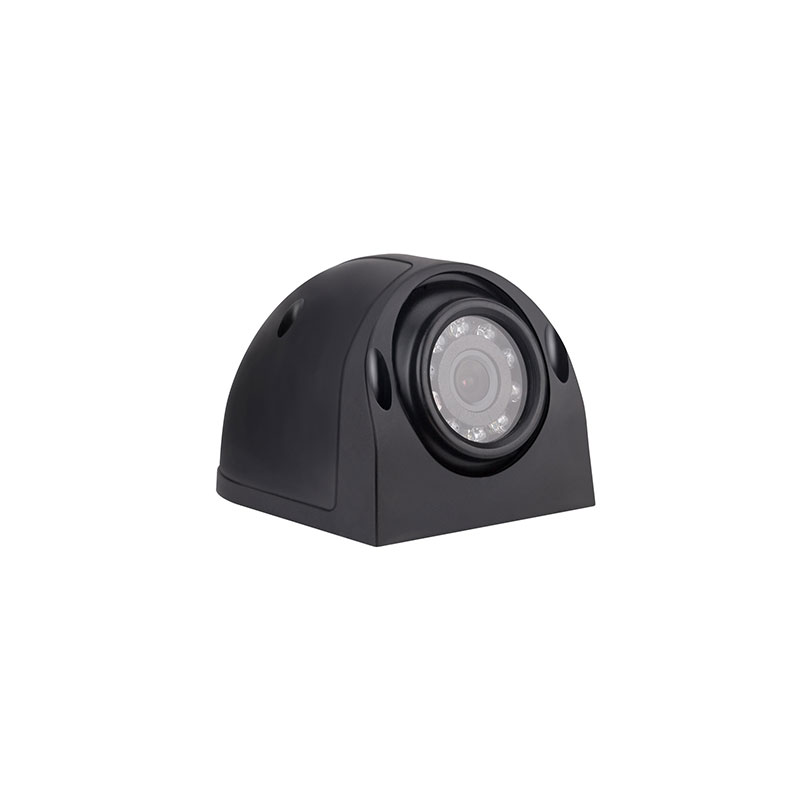

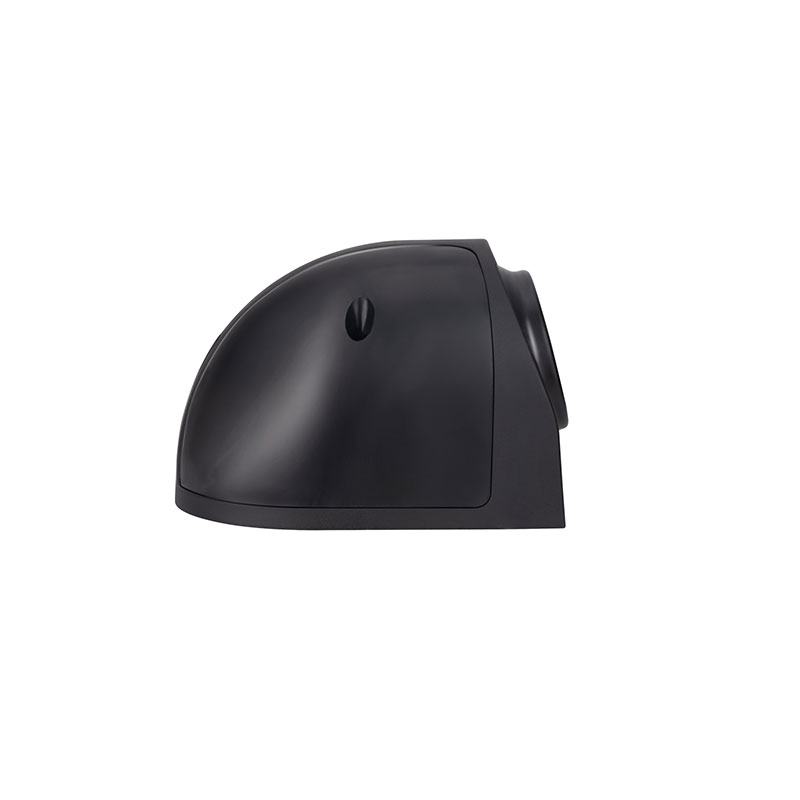

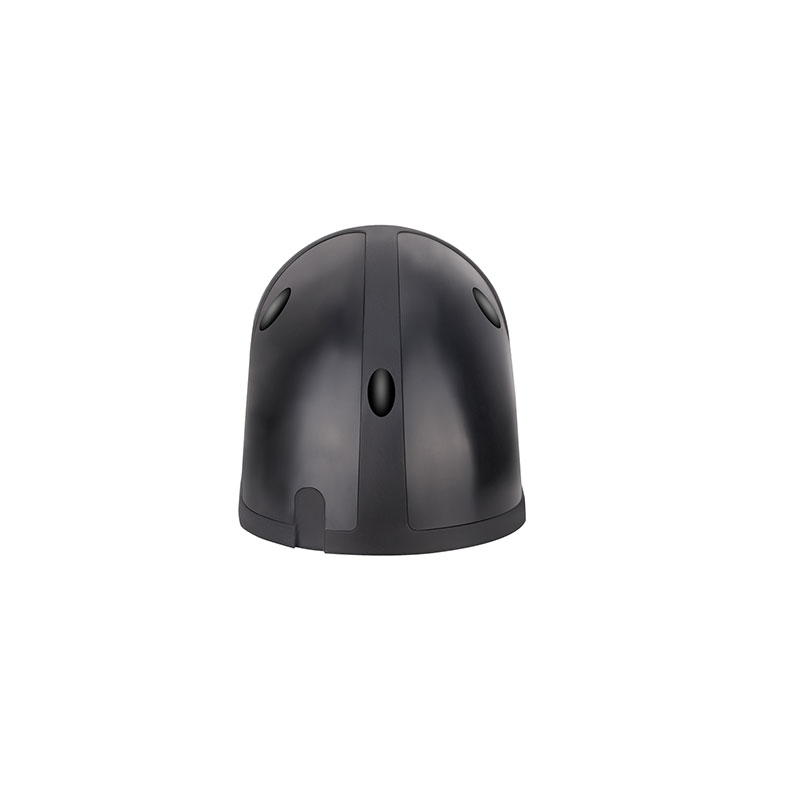

Side View Back Up Camera
Model:CA-725
Image Sensor 1/3 CMOS PC2099K
TV System NTSC/PAL
Effective Pixels 968(H)×488(V)
Sensing Area 4.880mm*3.670mm
Sync. System Internal
Resolution 700TVL
TV System NTSC/PAL
Effective Pixels 968(H)×488(V)
Sensing Area 4.880mm*3.670mm
Sync. System Internal
Resolution 700TVL
Features
Waterproof grade IP68
Support mirror switch and scale control function
With night vision function, infrared distance is 10 meters
It can be mounted on both sides of the vehicle
Support mirror switch and scale control function
With night vision function, infrared distance is 10 meters
It can be mounted on both sides of the vehicle
Parameter
TV System | NTSC/PAL |
Effective Pixels | 976(H)×592(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 9PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
