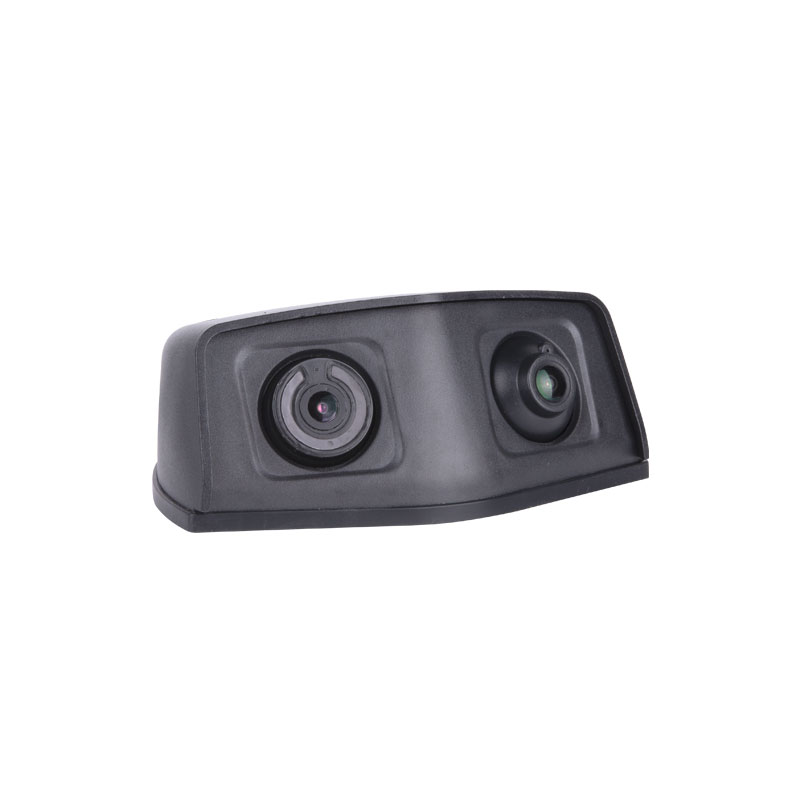

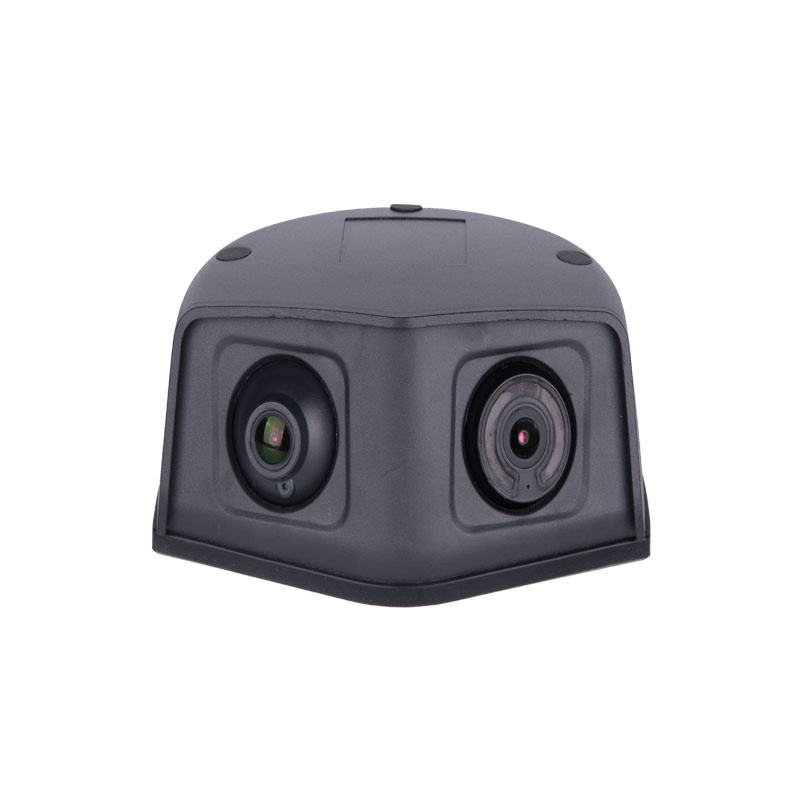

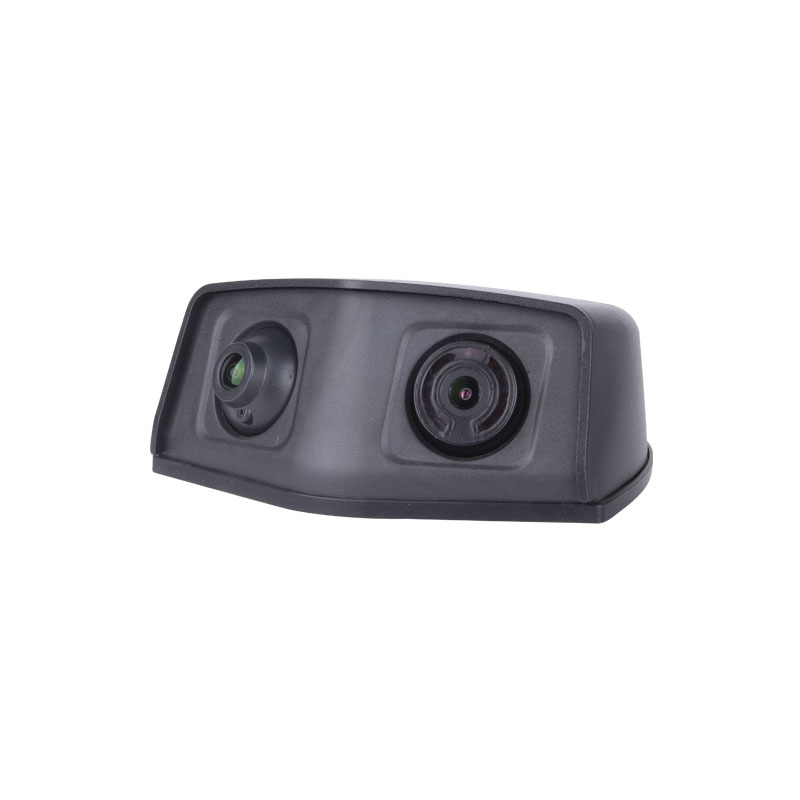

1080P HD Dual Lens Side View Camera
Model:CA-640
1080P starlight sensor
The illumination reaches 0.001Lux, and the low-light visibility of night vision images is clearer and more delicate
Wide dynamic (WDR) function, dynamic range up to 120dB. Clear and stable images can be achieved no matter day or night.
IP69K waterproof level design
Adaptive noise reduction processing, 2D-DNR, 3D-DNR
The illumination reaches 0.001Lux, and the low-light visibility of night vision images is clearer and more delicate
Wide dynamic (WDR) function, dynamic range up to 120dB. Clear and stable images can be achieved no matter day or night.
IP69K waterproof level design
Adaptive noise reduction processing, 2D-DNR, 3D-DNR
Features
driver can see more clearly with the monitor inside the vehicle
Parameter
Image Sensor | 1/2.8 Sony |
TV System | NTSC / PAL (optional) |
Effective Pixels | 1920(H)×1080(V) |
Frame Rate | 1080P@25fps / 1080P@30fps |
Sync. System | Internal |
Resolution | 1080p / 2 mega-pixel |
Minimum Illumination | 0.001 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | progressive scanning |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC 12V |
Lens Angle | High Lens: 4.3mm 40°(H) 80°(V) /Low Lens: 2.3mm 68°(H) 134°(V) |
Current Drain | Single Lens: 100±5mA / Dual Lens: 200±10mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Application
Accessories
