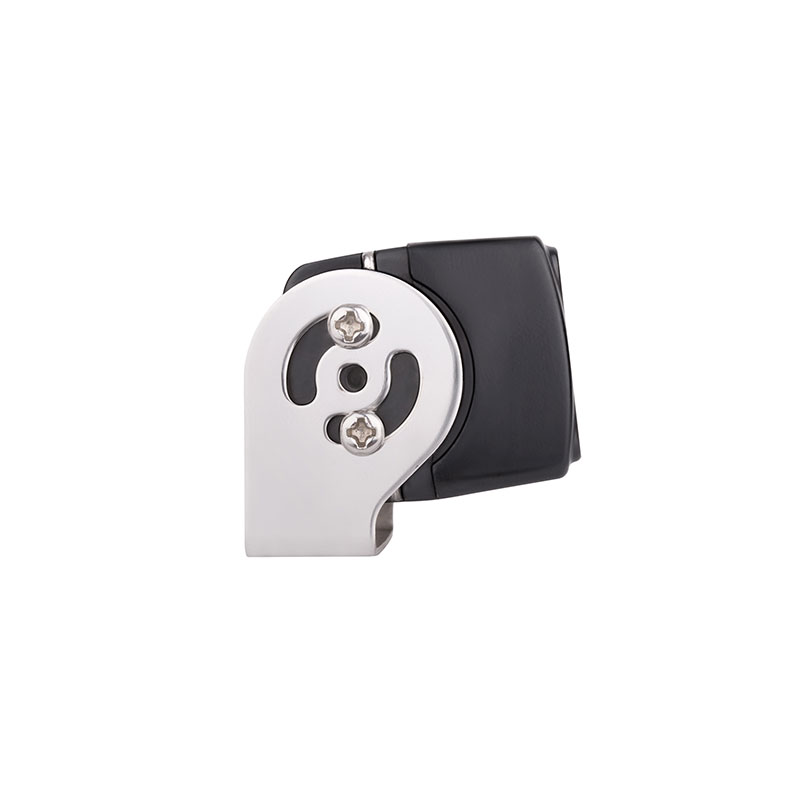

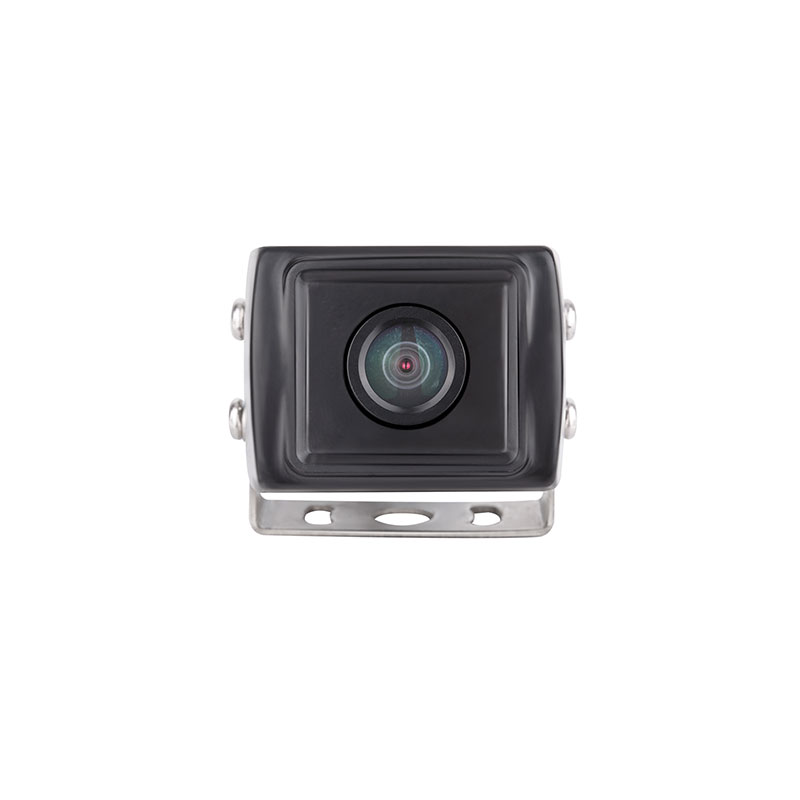

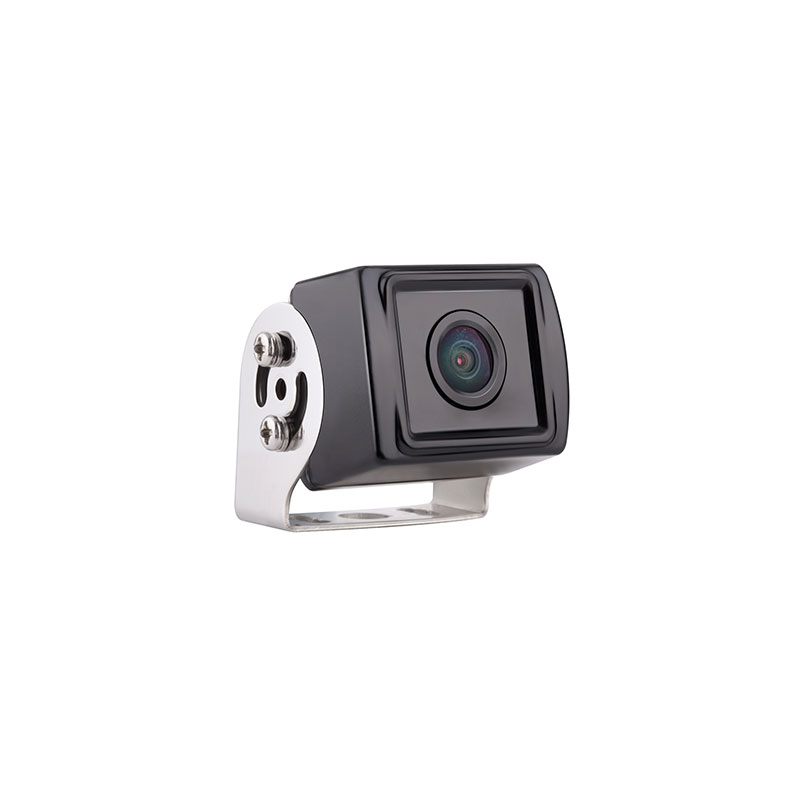

HD Side View Camera

TV System

NTSC/PAL

Effective Pixels

756(H)*504(V)

Sensing Area

4.880mm*3.670mm

Sync. System

Internal

Resolution

600 TVL

Minimum Illumination

0.1 Lux (day), 0 Lux (with IR)

Microphone

Optional

IR LED Qty

NO

Video Output

1.0 Vp-p/75 Ohm

Scanning System

interlace

AGC

AUTO

Signal to noise ratio

Better than 48dB

White balance

AUTO

Gamma Consumption

0.45

Electronic Shutter

AUTO

Backlight Compensation

AUTO

Power Supply

DC12V

Lens

2.25mm

Lens Angle

135°

Current Drain

65±5mA

Operating Temperature

-20℃-70℃,RH 95% MAX

Storage Temperature

-30℃-80℃,RH 95% MAX
