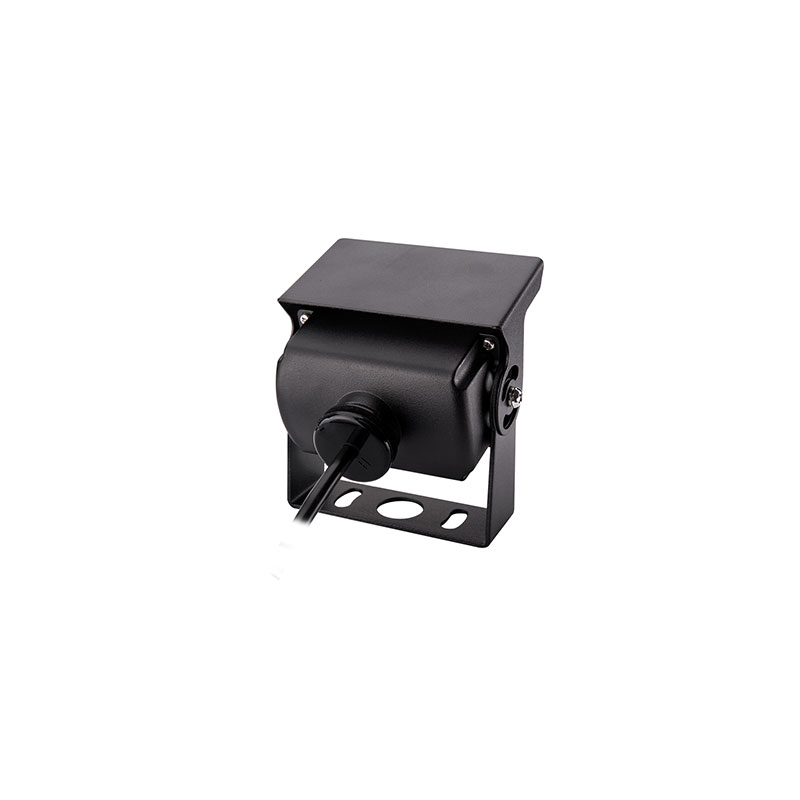

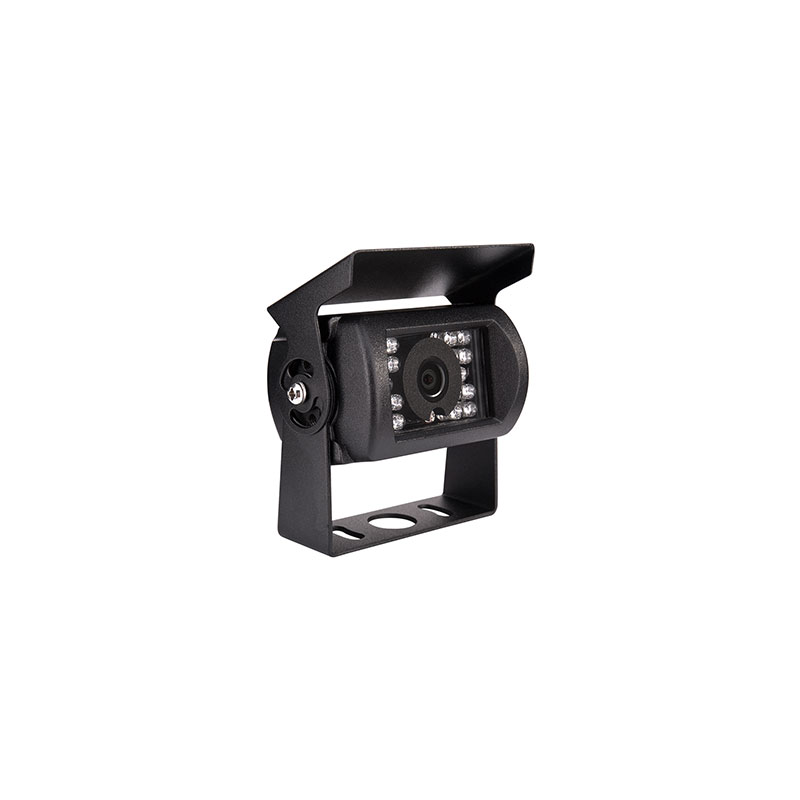

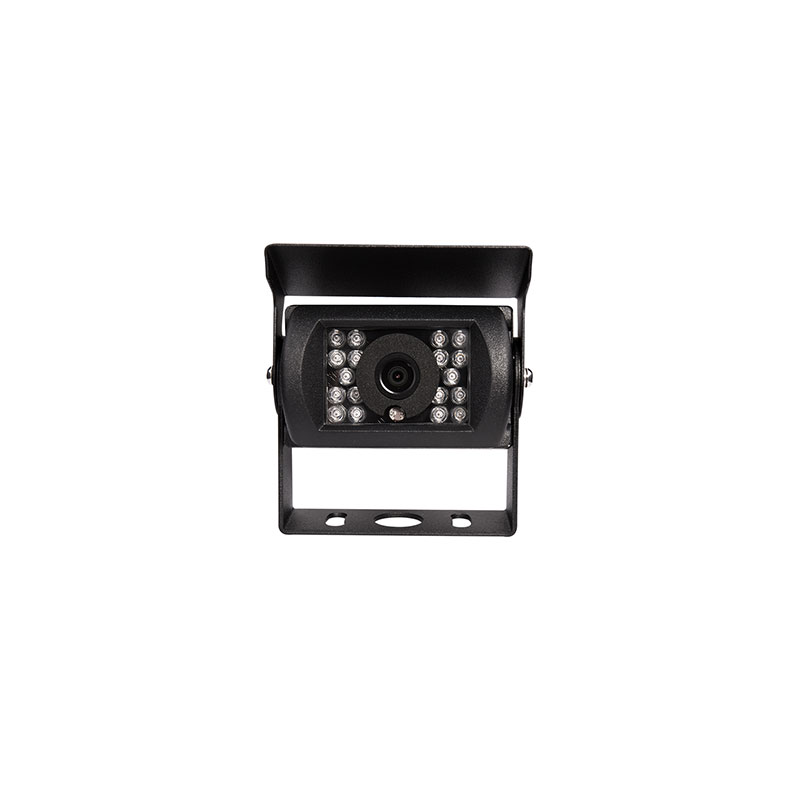

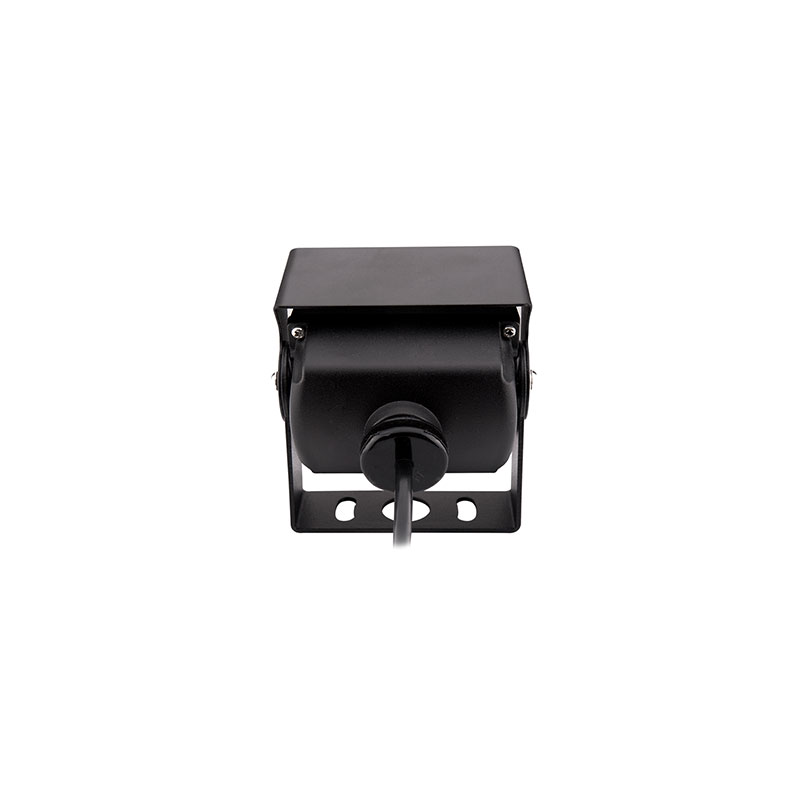

Backup Camera
Model:CA-731
Image Sensor 1/3 SHARP CCD
TV System NTSC/PAL
Effective Pixels P:752(H)×582(V) N:768(H)×494(V)
Sensing Area 4.880mm*3.670mm
Sync. System Internal
Resolution 480 TVL
TV System NTSC/PAL
Effective Pixels P:752(H)×582(V) N:768(H)×494(V)
Sensing Area 4.880mm*3.670mm
Sync. System Internal
Resolution 480 TVL
Features
Aluminum alloy shell is sprayed with anti-corrosion and heat dissipation
18 pcs 850nm infrared LED light with high light intensity and long distance
After fully sealed vacuum, nitrogen is filled to prevent fogging
suitable for all-weather environment
The visual window adopts acrylic glass and anti-seismic
The aviation connection interface adopts sealing, waterproof, fastening and anti-seismic
5G seismic rating is suitable for harsh roads
130 degree ultra wide viewing angle
18 pcs 850nm infrared LED light with high light intensity and long distance
After fully sealed vacuum, nitrogen is filled to prevent fogging
suitable for all-weather environment
The visual window adopts acrylic glass and anti-seismic
The aviation connection interface adopts sealing, waterproof, fastening and anti-seismic
5G seismic rating is suitable for harsh roads
130 degree ultra wide viewing angle
Parameter
Image Sensor | 1/3 SHARP CCD |
TV System | NTSC/PAL |
Effective Pixels | P:752(H)×582(V) N:768(H)×494(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 480 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 18PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 80±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
