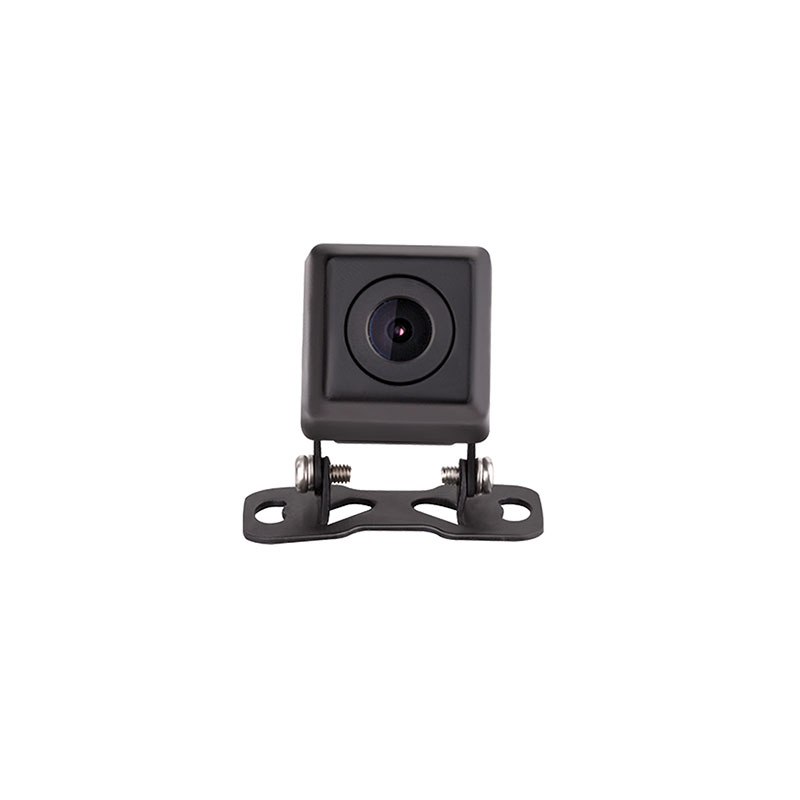

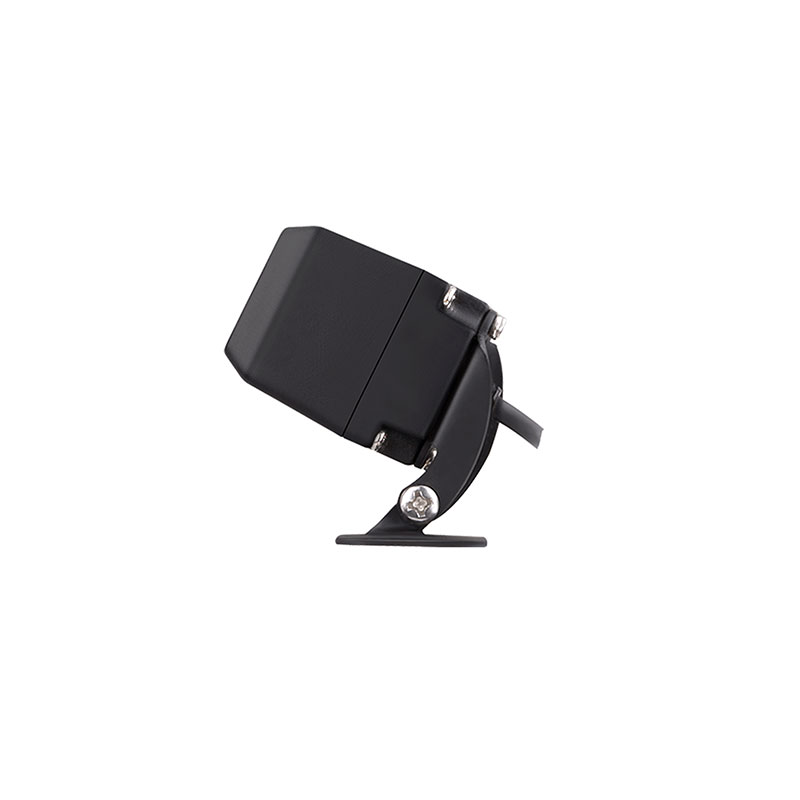

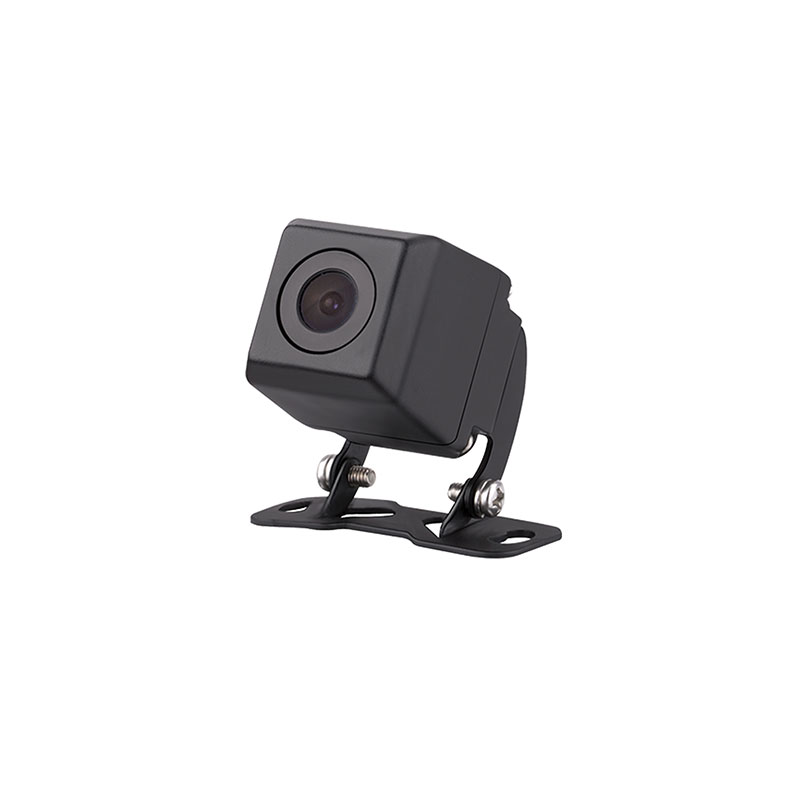

Mini Camera for Car
Model:CA-163
1.3 megapixel analog HD sensor
metal bracket
Waterproof grade IP69K
mirror switching and ruler control functions
metal bracket
Waterproof grade IP69K
mirror switching and ruler control functions
Features
clear and high-quality images
ultra-wide viewing angle of 145 degrees
ultra-wide viewing angle of 145 degrees
Parameter
Image Sensor | 1/3 CMOS PC2099K |
TV System | NTSC/PAL |
Effective Pixels | 968(H)*488(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | NO |
IR LED Qty | NO |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 1.7mm |
Lens Angle | 145° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Application
Accessories
