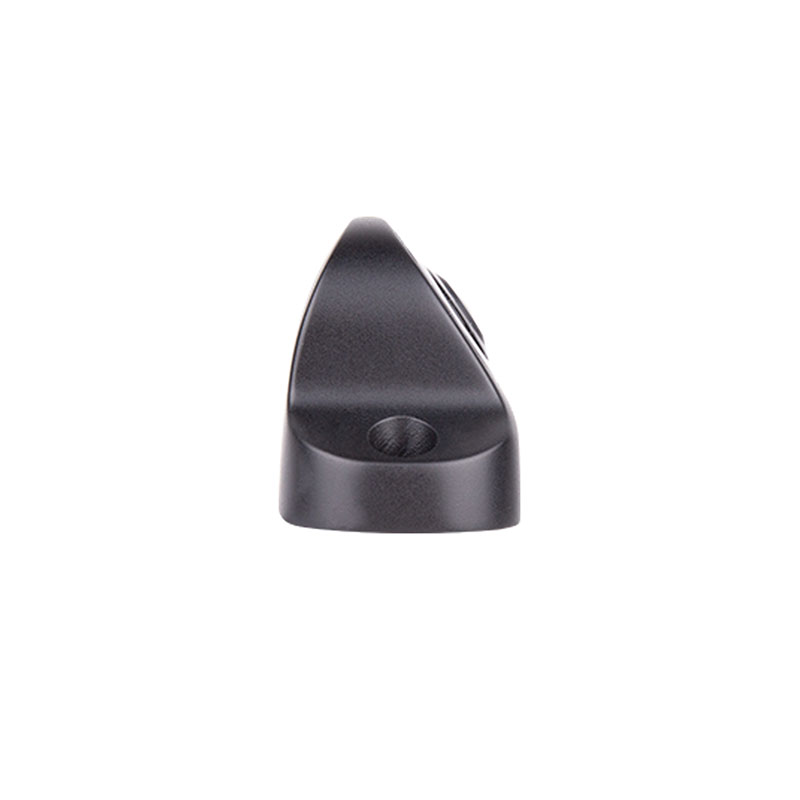

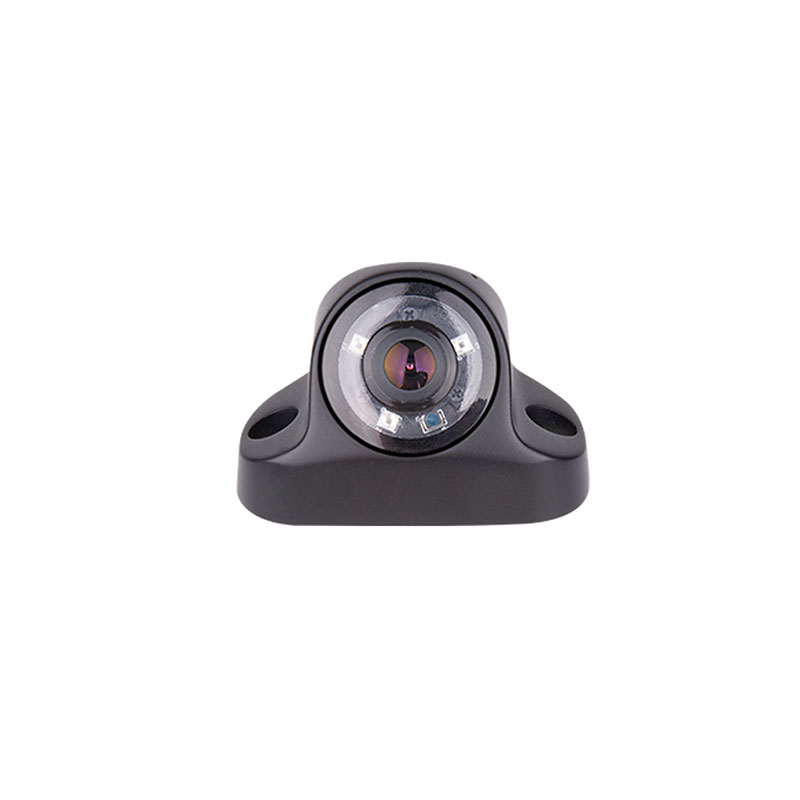

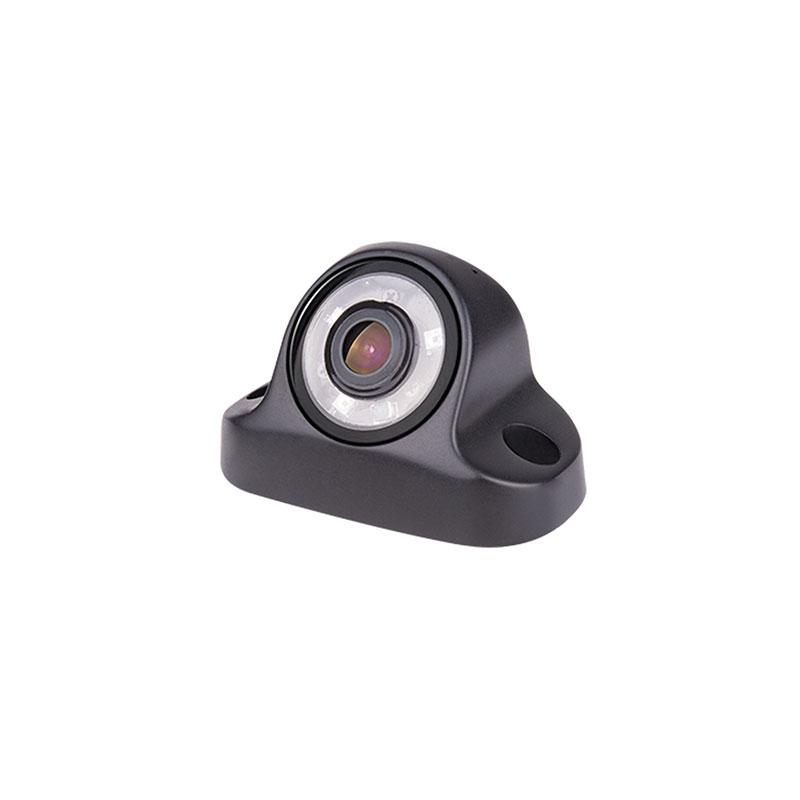

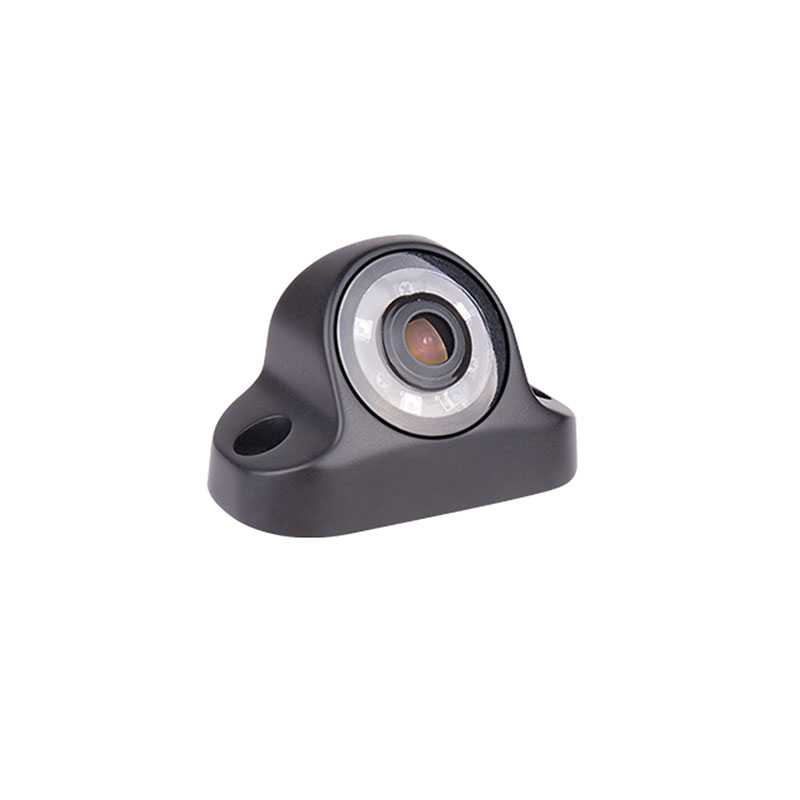

Mini Camera With Wide Sensor
Model:CA-168
Sony 2 million starlight wide dynamic sensor
an illuminance of 0.001 Lux
an illuminance of 0.001 Lux
Features
low-light visibility of night vision images
four-in-one signal output, AHD/TVI/CVI/CVBS
Adaptive noise reduction, 2d-dnr, 3d-dnr
four-in-one signal output, AHD/TVI/CVI/CVBS
Adaptive noise reduction, 2d-dnr, 3d-dnr
Parameter
Image Sensor | 1/2.8 Sony |
TV System | NTSC / PAL (optional) |
Effective Pixels | 1920(H)*1080(V) |
Sensing Area | 1080P@25fps / 1080P@30fps |
Sync. System | Internal |
Resolution | Default 1080p / 200W (720p switchable) |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 3PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | progressive scanning |
AGC | AUTO |
Signal to noise ratio | ≥48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC: 12V±1V |
Lens | 2.5mm |
Lens Angle | 150° |
Current Drain | Day：110±5mA/12V Night：310mA±10mA/12V |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
