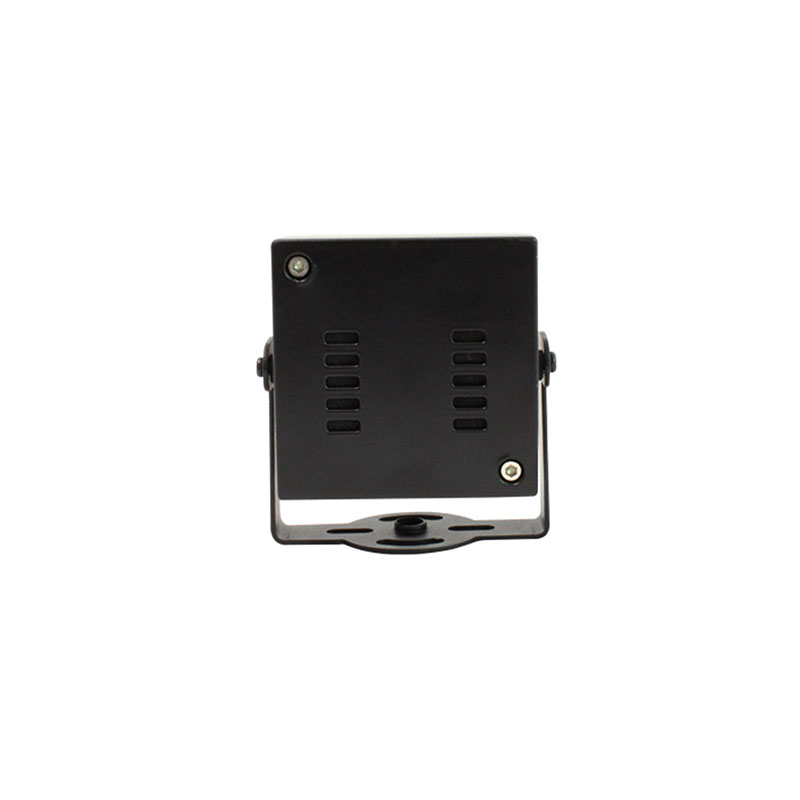

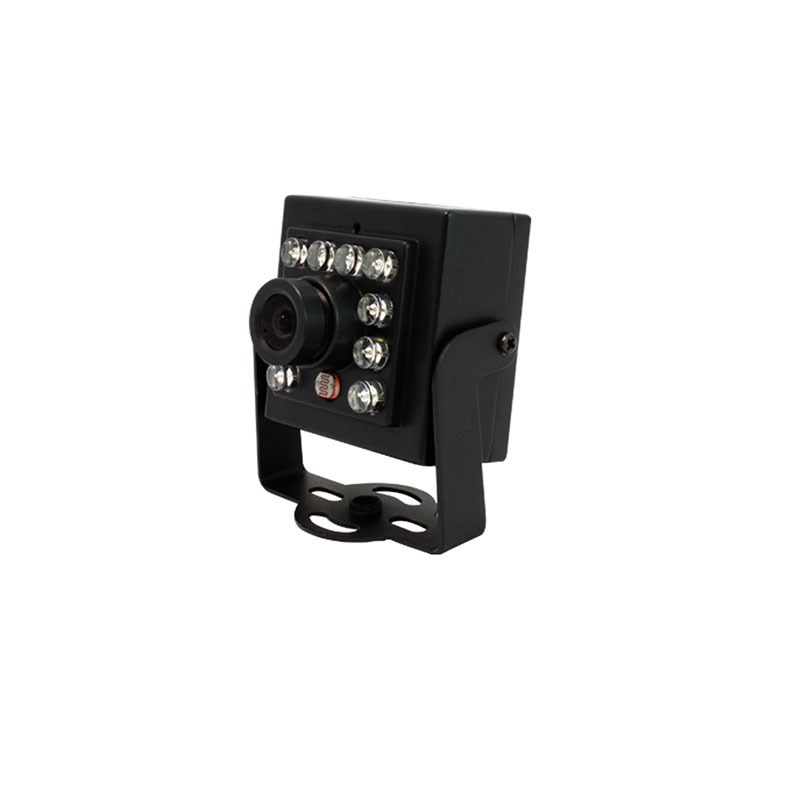

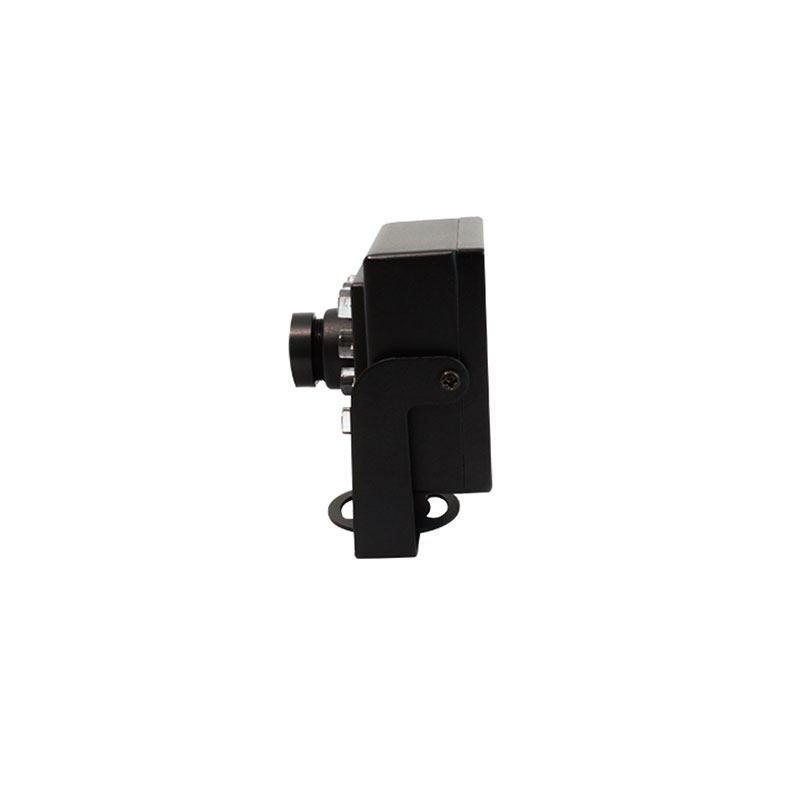

HD Inside Dome Bus Camera
Model:CA-604
angle of view of 122°
with 10 built-in infrared LED lamp beads
Support mirror switch
Support ICR switching
Superficial colors are optional
with 10 built-in infrared LED lamp beads
Support mirror switch
Support ICR switching
Superficial colors are optional
Features
high-performance 2 million pixel Sensor
signal filtering, and 3D noise reduction technology
signal filtering, and 3D noise reduction technology
Parameter
Image Sensor | 1/3 CMOS PC2099K |
TV System | NTSC/PAL |
Effective Pixels | 968(H)×488(V) |
Sensing Area | 4.880mmⅹ 3.670mm |
Sync. System | Internal |
Resolution | 700TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 10PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Application
Accessories
