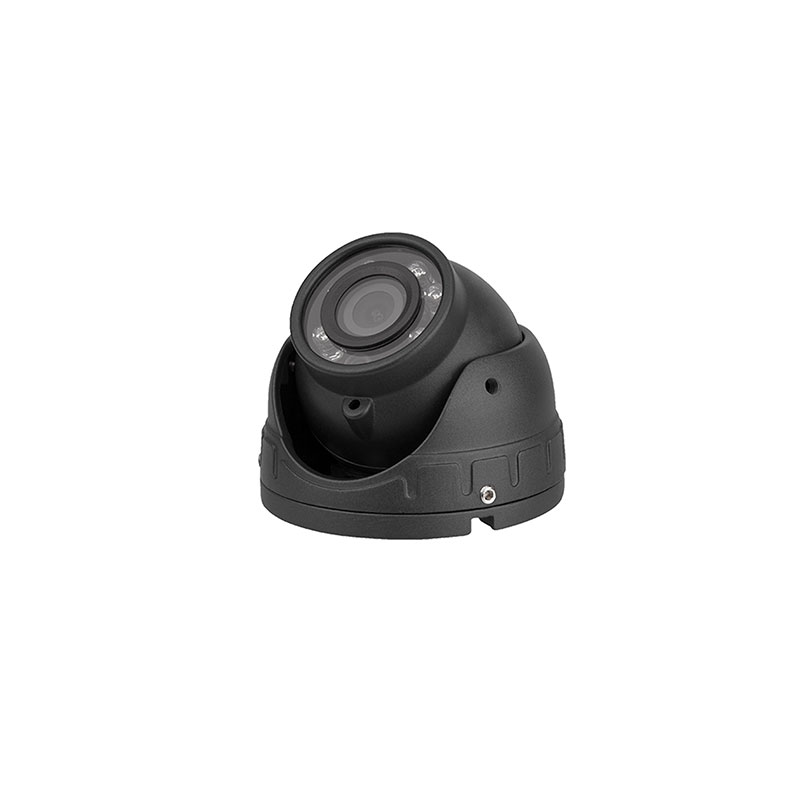

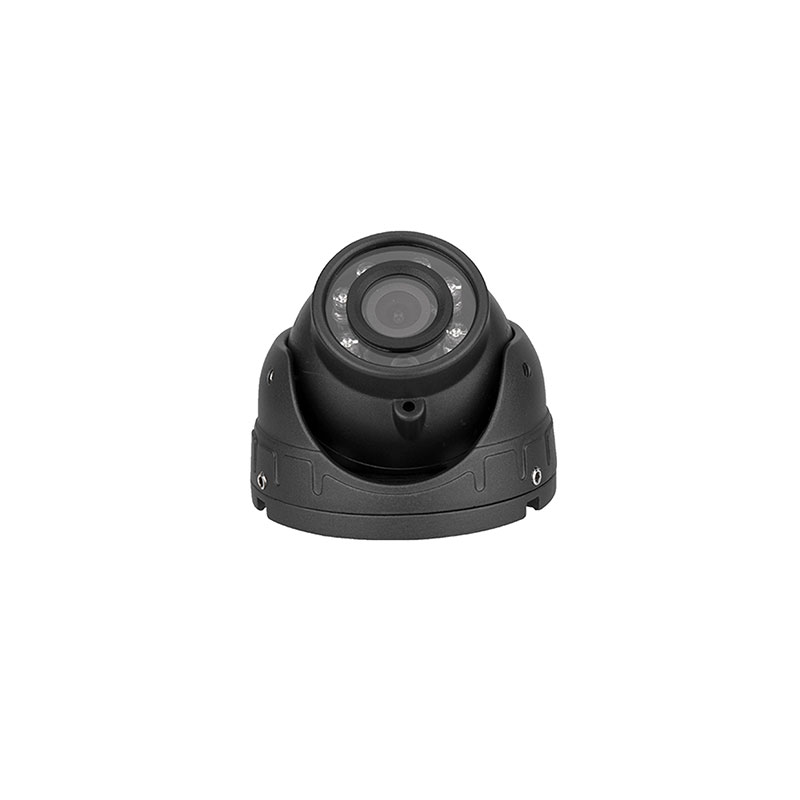

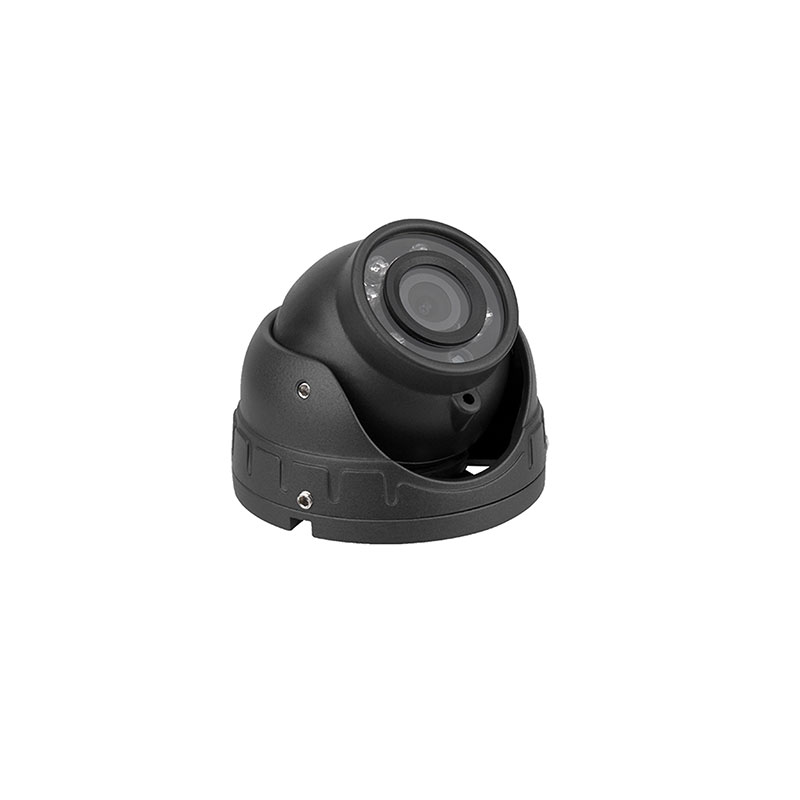

HD Inside Cabin Camera For Bus
Model:CA-733
700TVL
Support mirror switching
Support ruler control functions
With night vision function
Support mirror switching
Support ruler control functions
With night vision function
Features
multi-layer high transmittance glass lens
150 degree angle
150 degree angle
Parameter
Image Sensor | 1/3 CMOS PC2099K |
TV System | NTSC/PAL |
Effective Pixels | 968(H)×488(V) |
Sensing Area | 6.2um*7.4um |
Sync. System | Internal |
Resolution | 700TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 6PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.3mm |
Lens Angle | 150° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Application
Accessories
