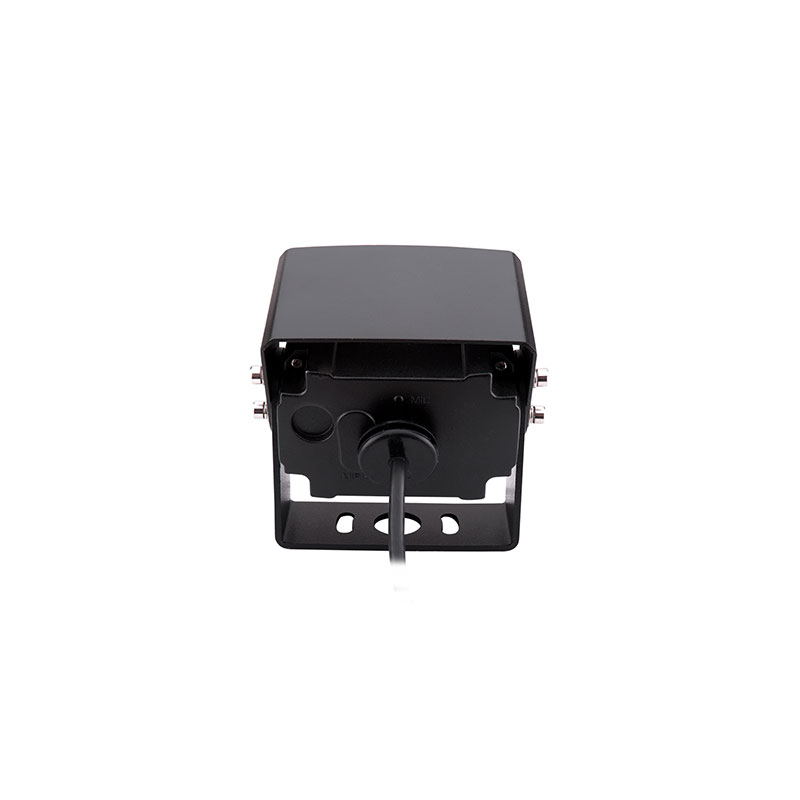

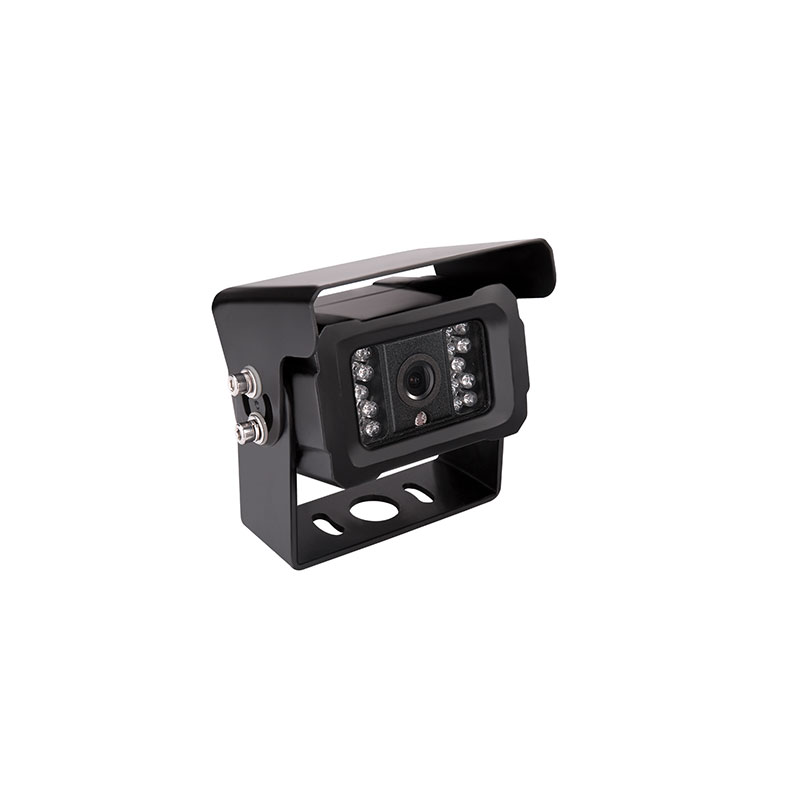

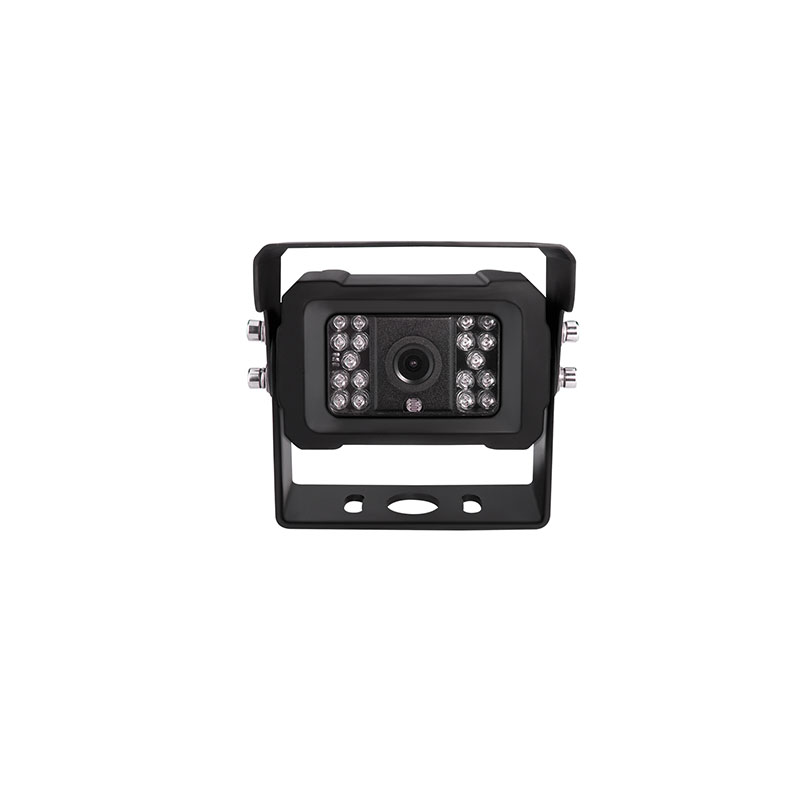

HD Heavy Duty Back Up Camera
Model:CA-722
Sharp CCD ,
* 420 TV Lines ,
* 120 degree,
*0 Lux AT Night(IR LED on)
*Waterproof: IP68
*Power:DC12
* 420 TV Lines ,
* 120 degree,
*0 Lux AT Night(IR LED on)
*Waterproof: IP68
*Power:DC12
Features
Support mirror switch
Support ICR switching
Infrared distance is 10m
With night vision functio
Support ICR switching
Infrared distance is 10m
With night vision functio
Parameter
Effective Pixels | 968(H)*488(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 18PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Application
Accessories
