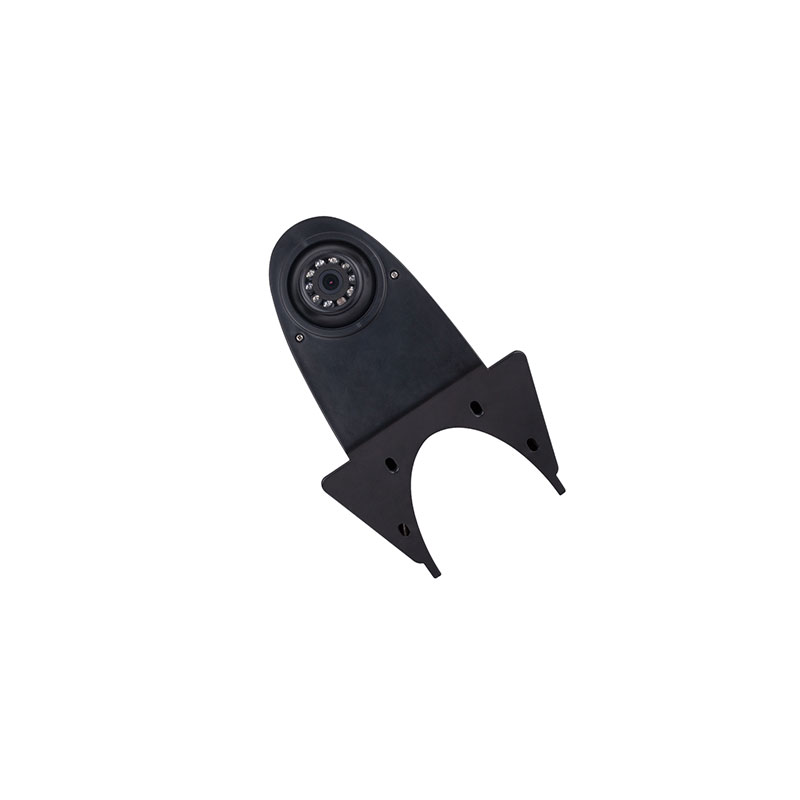

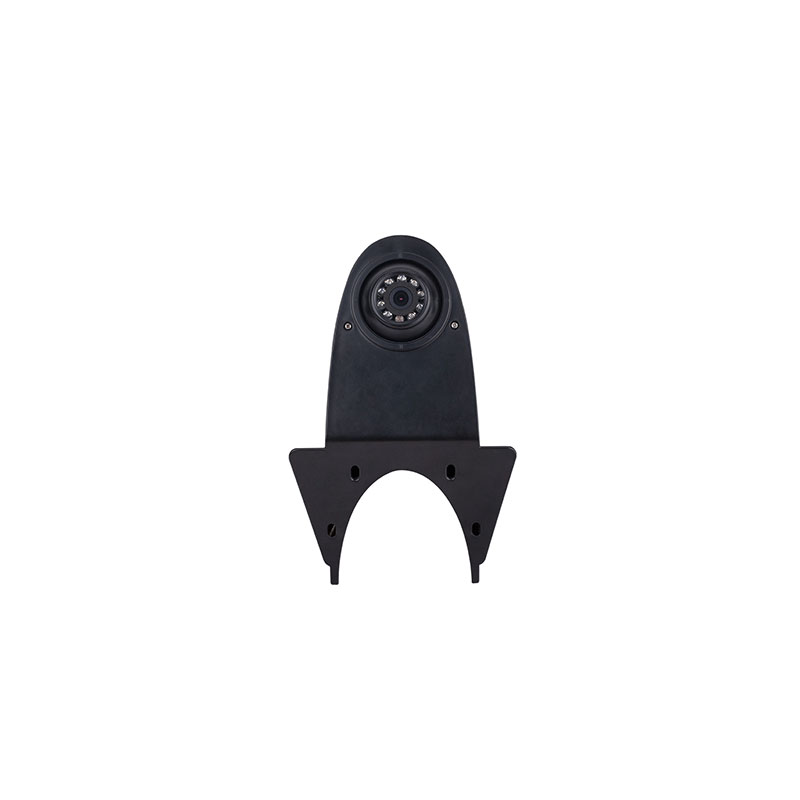

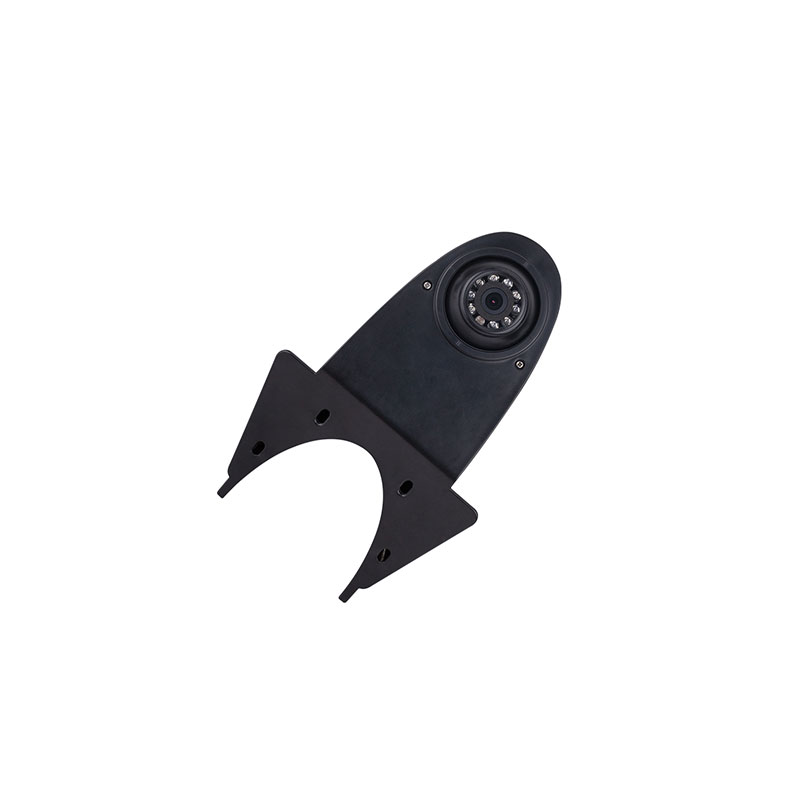

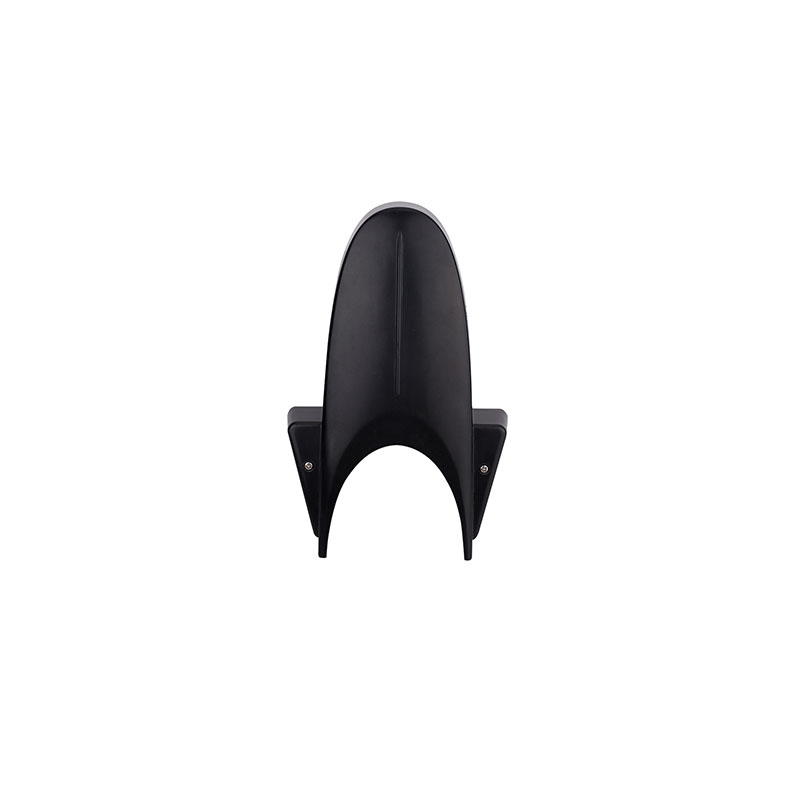

Rear View Camera
Model:CA-738
* Sharp CCD
Lens:2.5mm fixed lens
*View angle: 130°
*Waterproof: IP68
Lens:2.5mm fixed lens
*View angle: 130°
*Waterproof: IP68
Features
Infrared distance is 10m
With night vision function
With night vision function
Parameter
Effective Pixels | 1280（H）ⅹ960（V） |
Sensing Area | 3.75μm |
Sync. System | Internal |
Resolution | 130W |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 9PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 102° |
Current Drain | 70±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Application
Accessories
