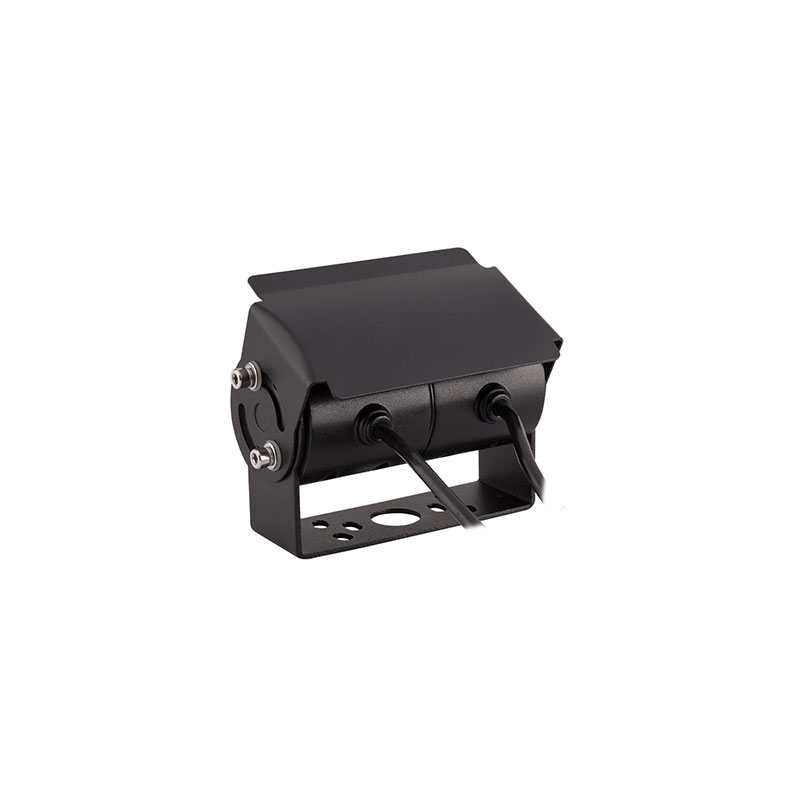

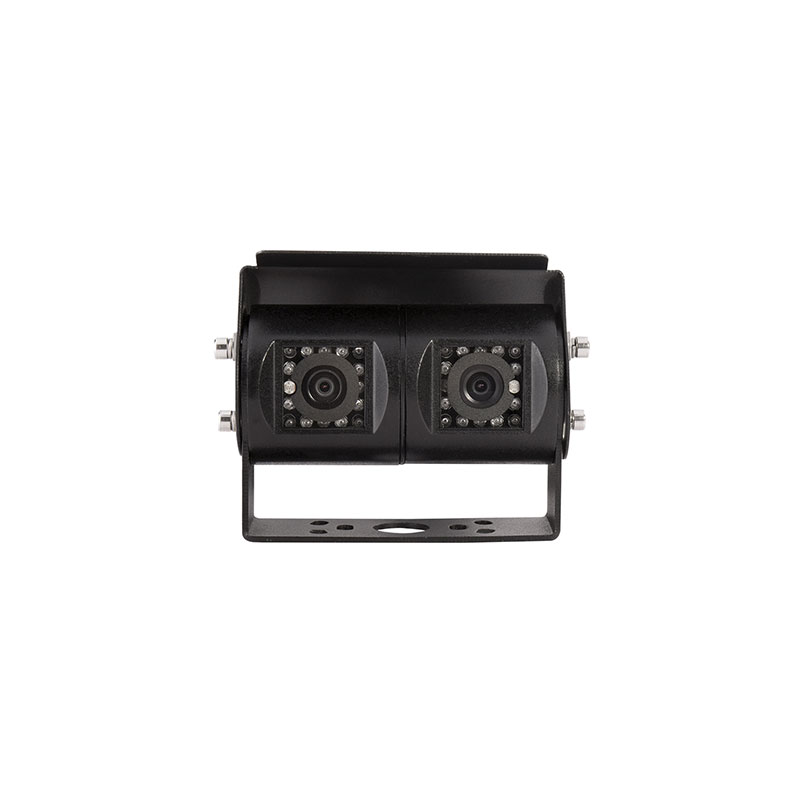

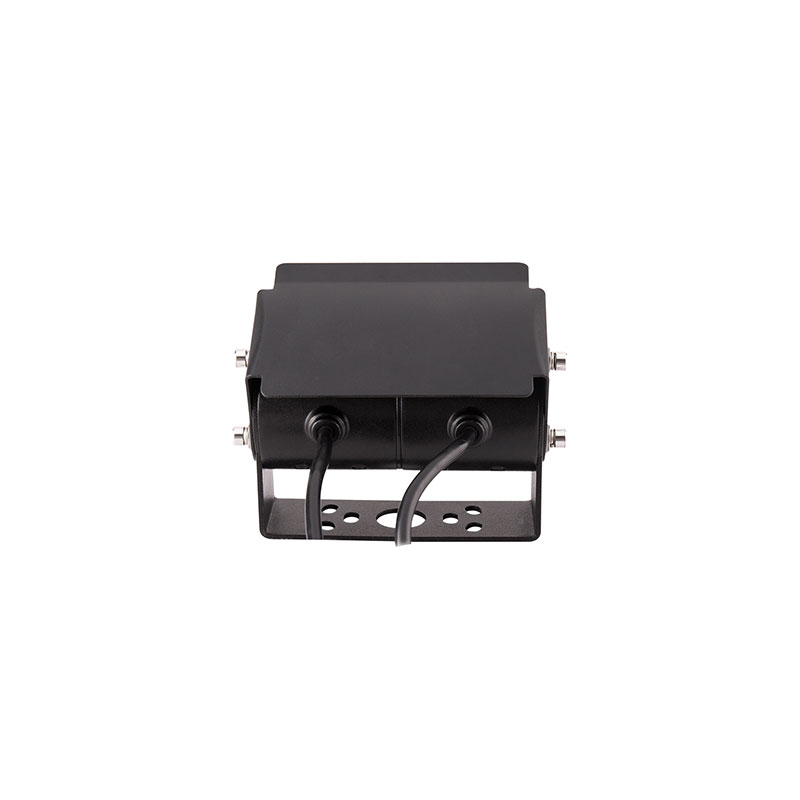

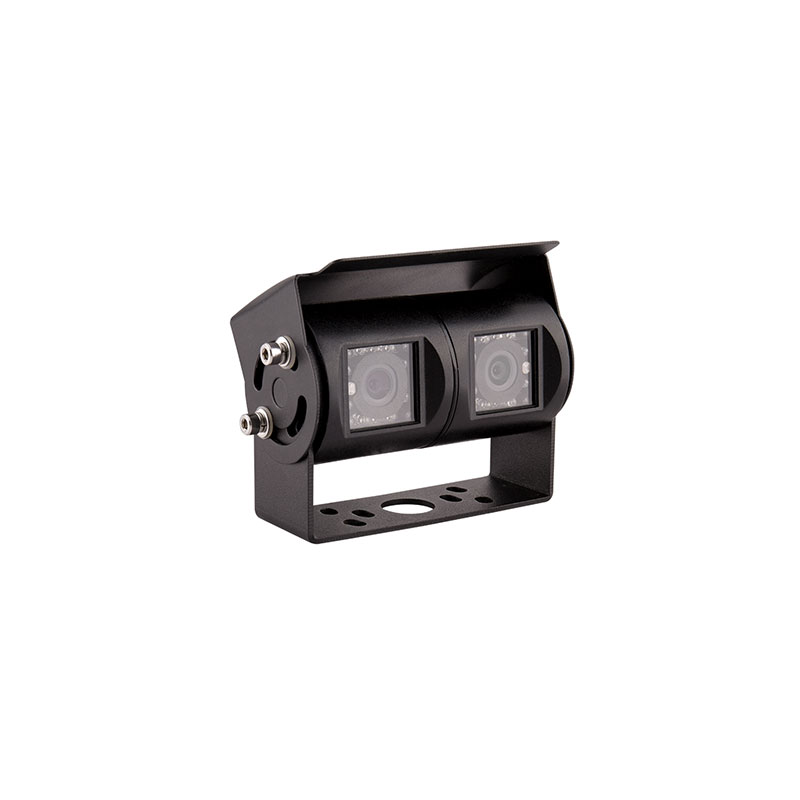

Dual Lens Reversing Camera
Model:CA-729
Sensor: 1/4″ SHARP CCD Sensor 420TVL
View angle: 120°/45°
Night vision: 15pcs IR LED Each Lens
IP rating: IP68 (Waterproof)
Voltage: 12V (+/- 10%)/ 1,5 Watt
View angle: 120°/45°
Night vision: 15pcs IR LED Each Lens
IP rating: IP68 (Waterproof)
Voltage: 12V (+/- 10%)/ 1,5 Watt
Features
Support ICR switching
Infrared distance is 10m
Infrared distance is 10m
Parameter
Image Sensor | 1/3 CMOS PC2099K |
TV System | NTSC/PAL |
Effective Pixels | 968(H)*488(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 15PCS/15PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Application
Accessories
