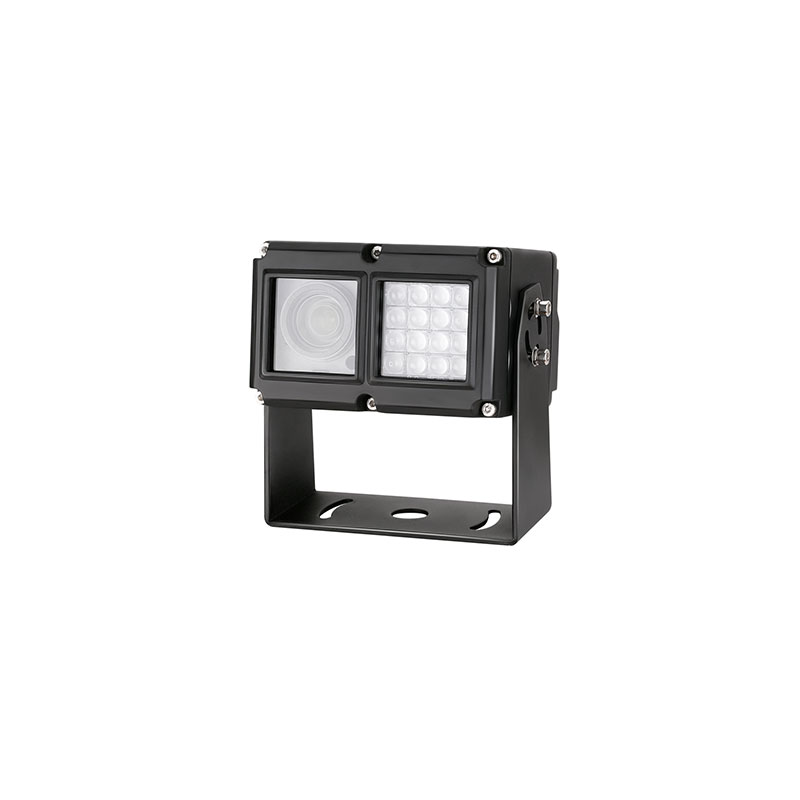

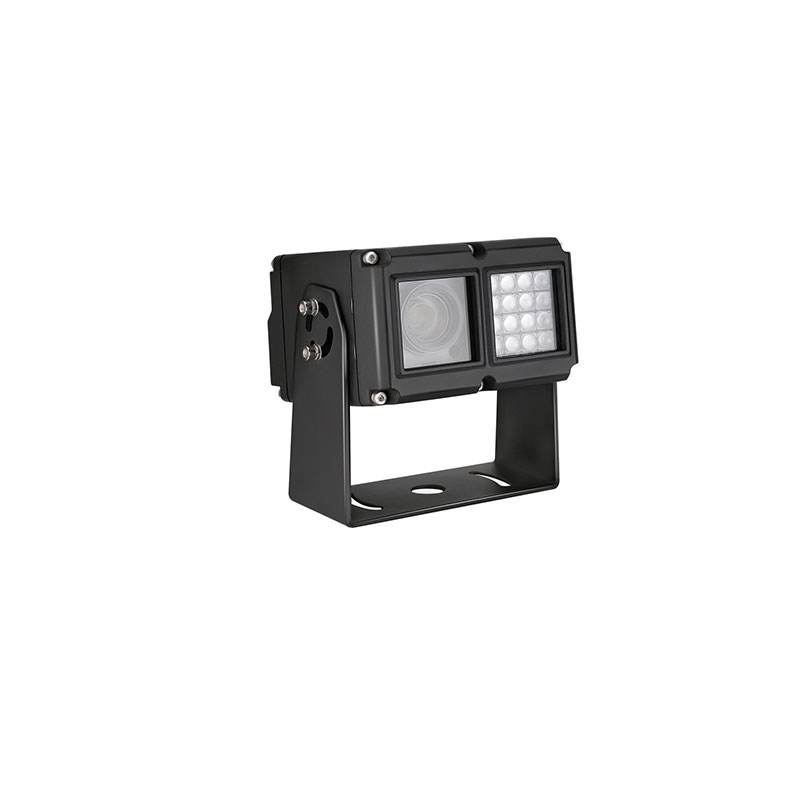

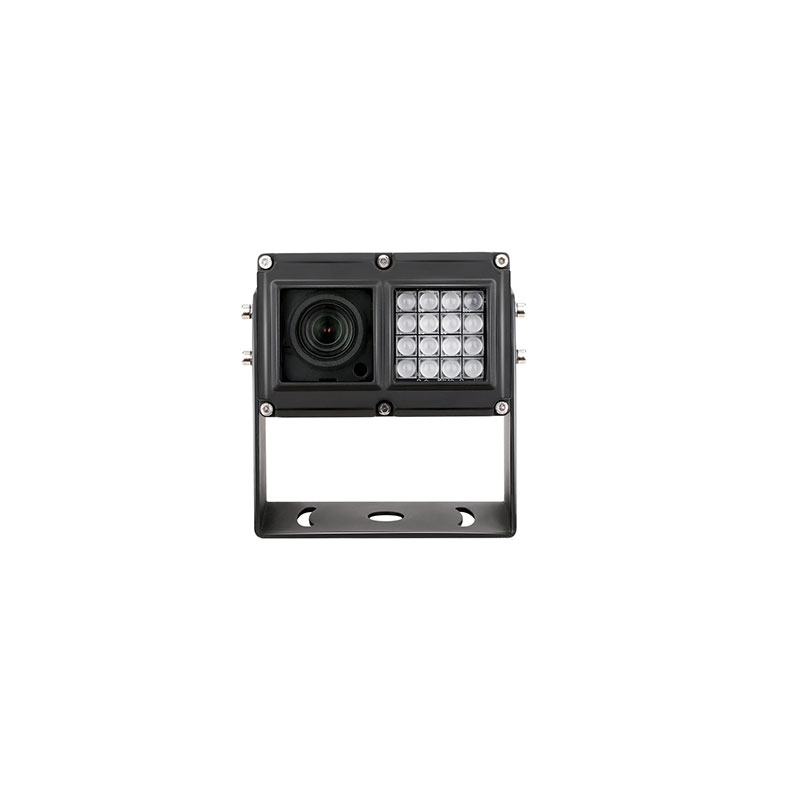

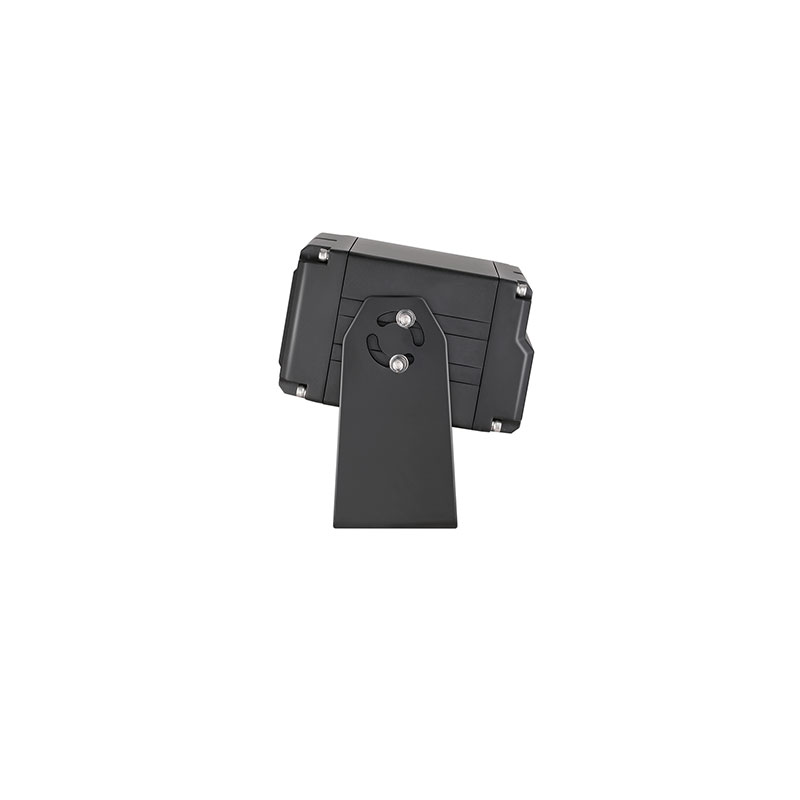

Tower Crane Zoom Camera
Model:CA-616
Waterproof IP68
Wireless focus control
Constant current circuit design
Intelligent infrared control technology
High efficiency heat dissipation structure
Wireless focus control
Constant current circuit design
Intelligent infrared control technology
High efficiency heat dissipation structure
Features
a wide glow up to 50 meters away – while its intelligent wireless infrared control technology adjusts
SMD infrared lamps and high-transmittance imported cup lights
SMD infrared lamps and high-transmittance imported cup lights
Parameter
Image Sensor | 1/3 AR0130 |
Effective Pixels | 1280(H)×960(V) |
Sensing Area | 3.75μm |
Resolution | 1.3 mega pixels |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | NO |
IR LED Qty | 15PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | PAL:1/25~1/10000s NTSC:1/30~1/12000s |
Backlight Compensation | AUTO |
Focal length | 5~90mm |
Optical zoom | 18-fold |
Focusing | Manual/automatic |
Signal output | AHD 960P/default setting CVBS |
Infrared range | 30-50M |
Infrared lamp power | 3.6W |
Infrared open mode | Low illumination 0.1Lux on |
Power Supply | 12V |
Power Dissipation | 12W |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Application
Accessories
