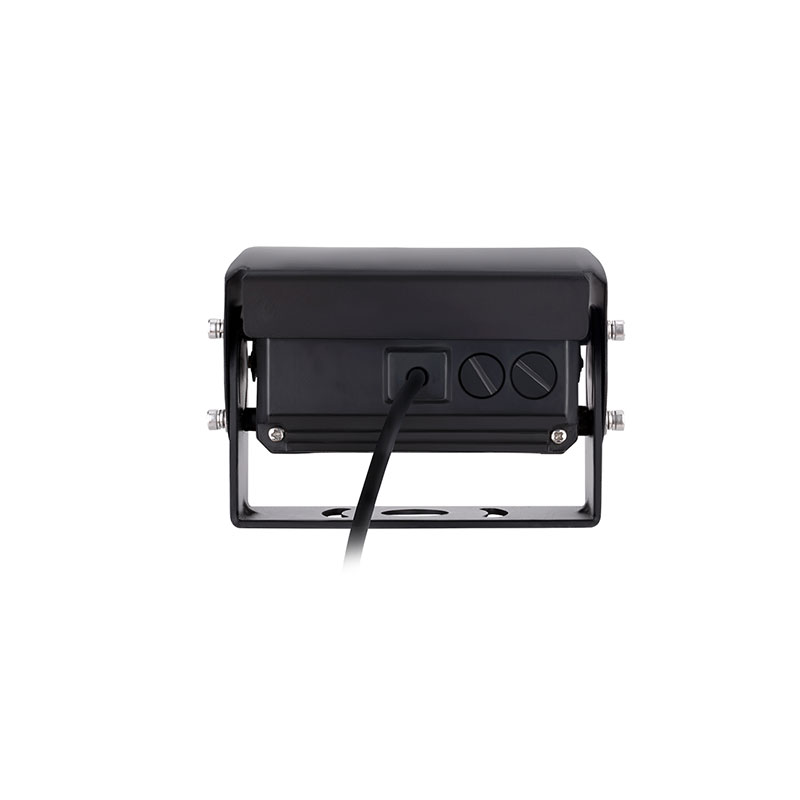

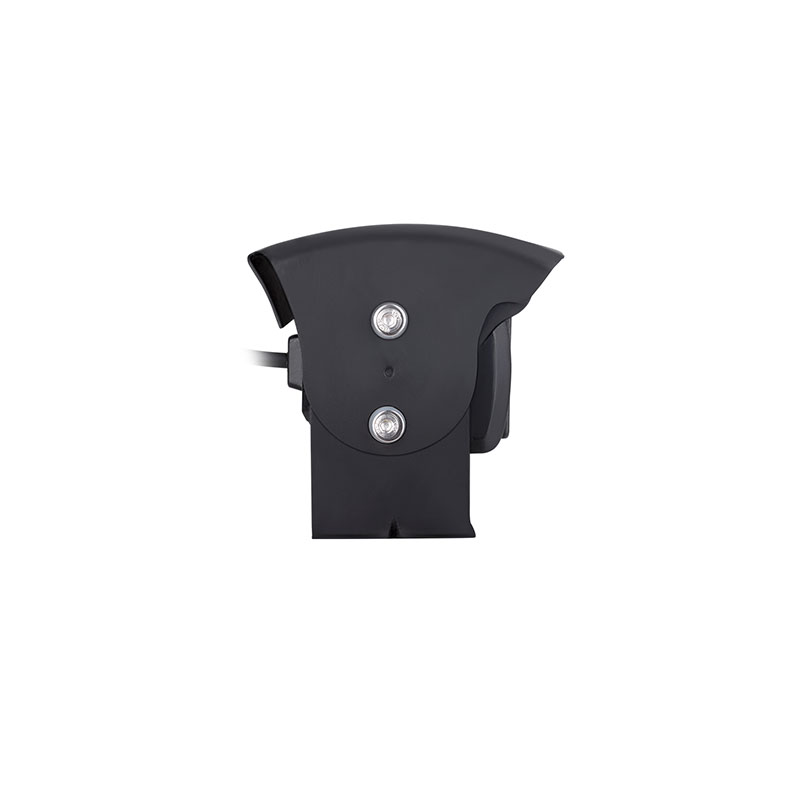

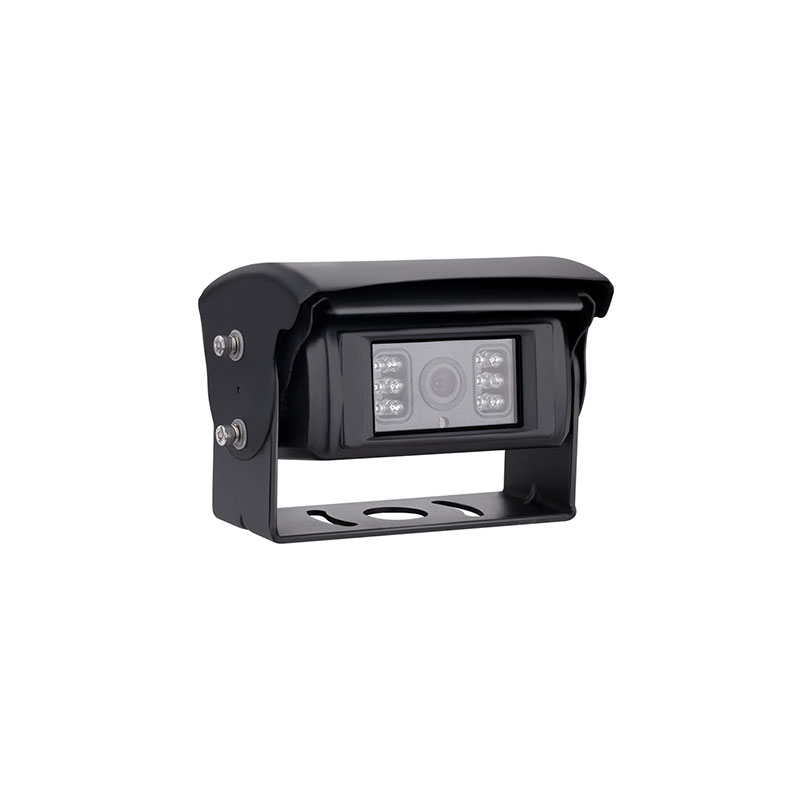

Auto Shutter AHD Sensor Rear View Camera
Model:CA-636
*Auto Shutter
*1/4" Sharp CCD
*12pcs IR LED
*View angle: 120°
*1/4" Sharp CCD
*12pcs IR LED
*View angle: 120°
Features
Heavy-duty Color Auto shutter backup camera with Infrared LED.
Automatic protective shutter closes when not in use
Waterproof rating IP68
Produced specifically to withstand the rigors of use in the transport industry
Automatic protective shutter closes when not in use
Waterproof rating IP68
Produced specifically to withstand the rigors of use in the transport industry
Parameter
Effective Pixels | N:968(H)×488(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 12PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12-24V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
Application
Accessories
