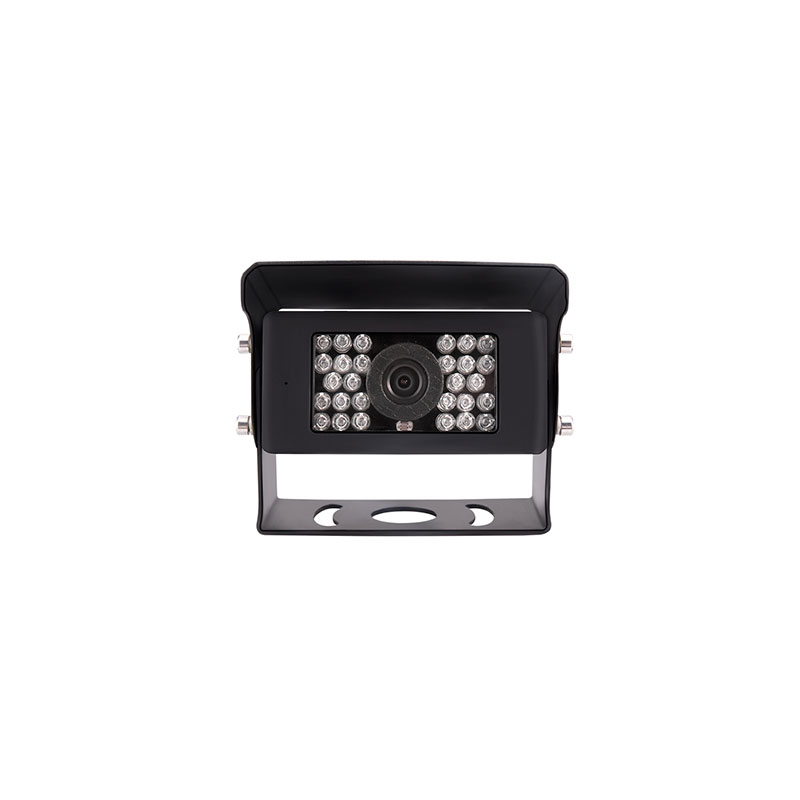

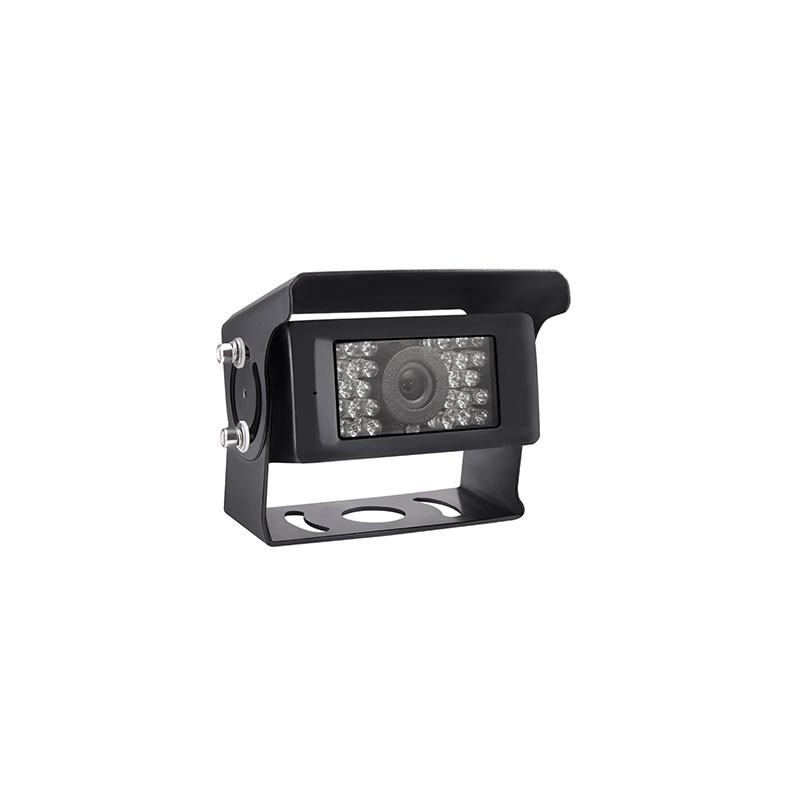

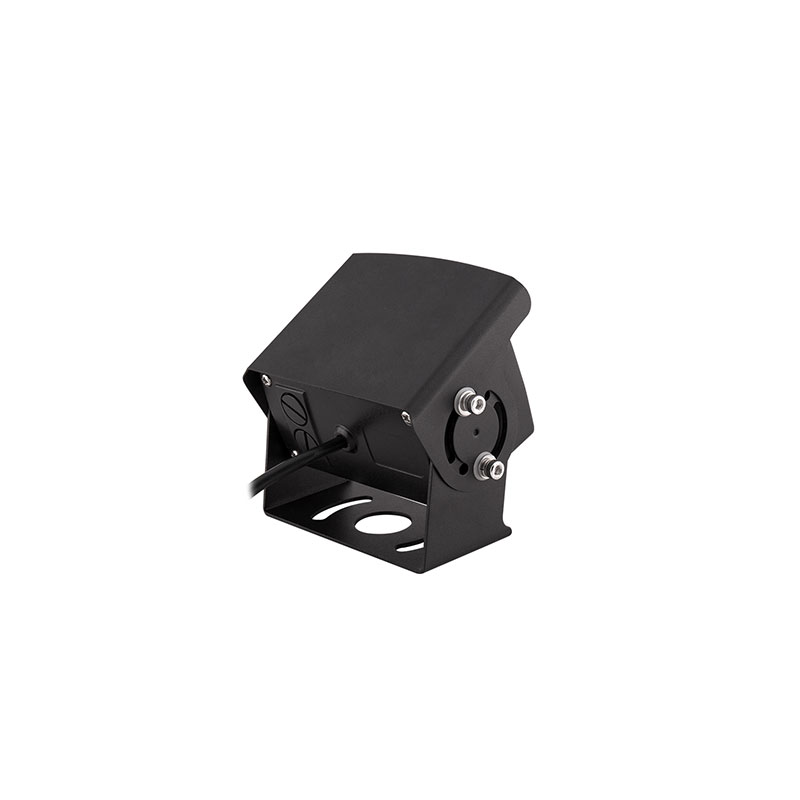

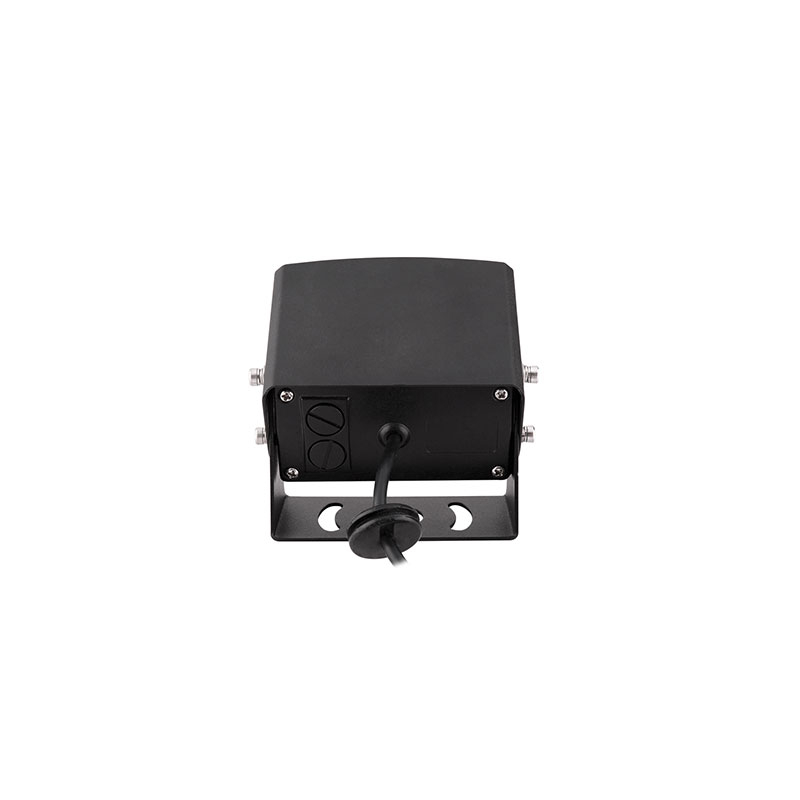

Reversing Camera
Model:CA-723
IR Led: 28pcs
Night Vision distance: 15 M
Lens Angle: 120 Degree
Waterproof Rate: IP69K
Heavy duty design
Night Vision distance: 15 M
Lens Angle: 120 Degree
Waterproof Rate: IP69K
Heavy duty design
Features
IP69K waterproof night vision rear view camera
Infrared distance is 13m
Good performance at night
Infrared distance is 13m
Good performance at night
Parameter
Effective Pixels | 968(H)*488(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 28PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 115° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
