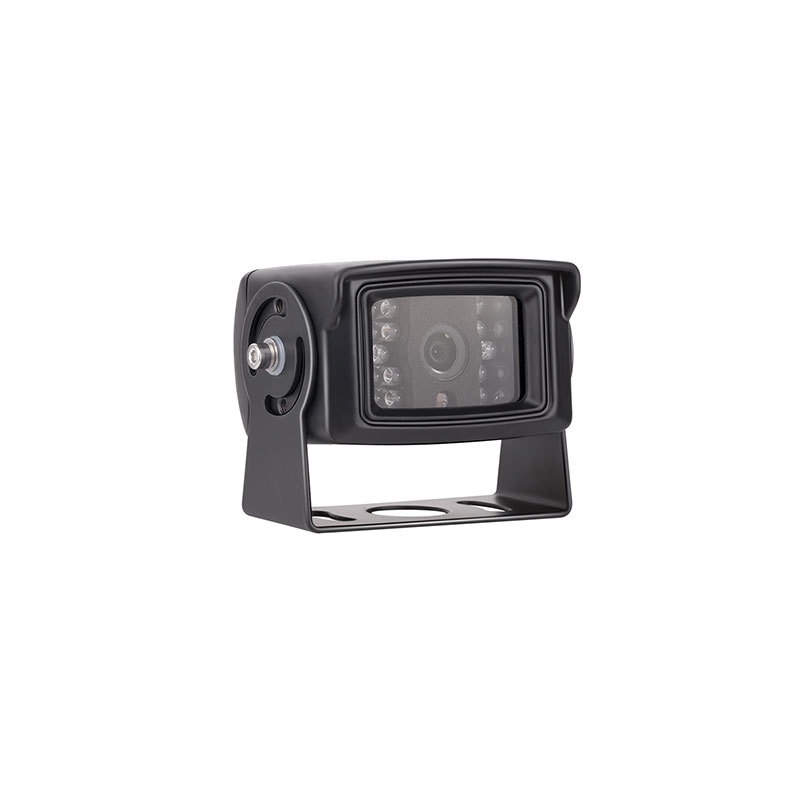

Rear View Camera
Model:CA-724
Sharp CCD
*18pcs IR LED
*View angle: 120°*
Waterproof: IP69k
*Power:DC12V( DC24V optional)
*18pcs IR LED
*View angle: 120°*
Waterproof: IP69k
*Power:DC12V( DC24V optional)
Features
Aluminum alloy case for oxidation resistance and heat dissipation
100% vacuum and nitrogen filling to prevent fogging
Cold resistant low impedance cable suitable for harsh ambient temperature

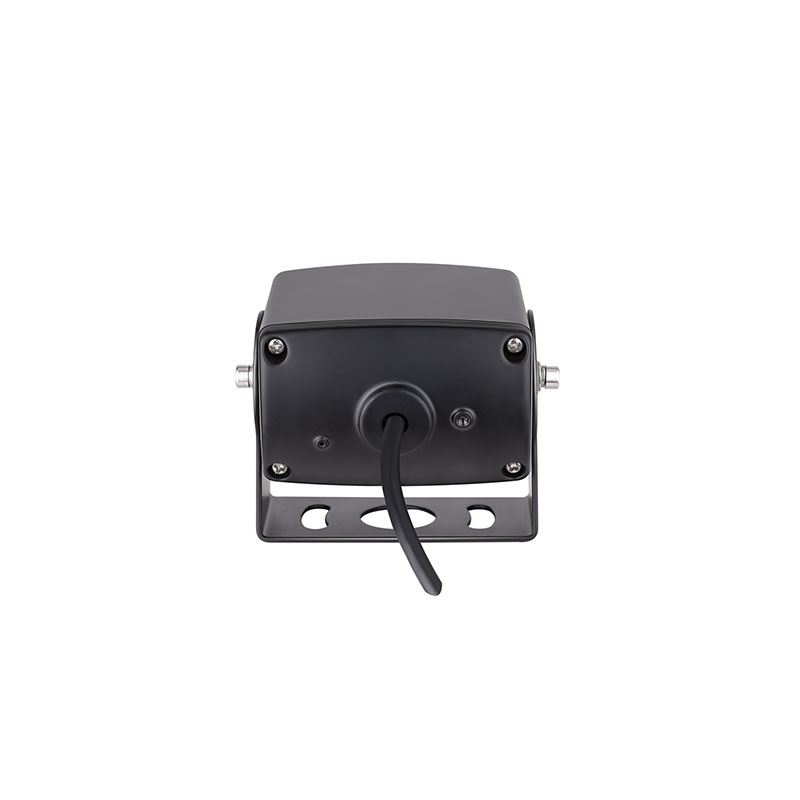

The aviation connection interface adopts sealing, waterproof, fastening and anti-seismic
Viewing window acrylic glass for anti-seismic

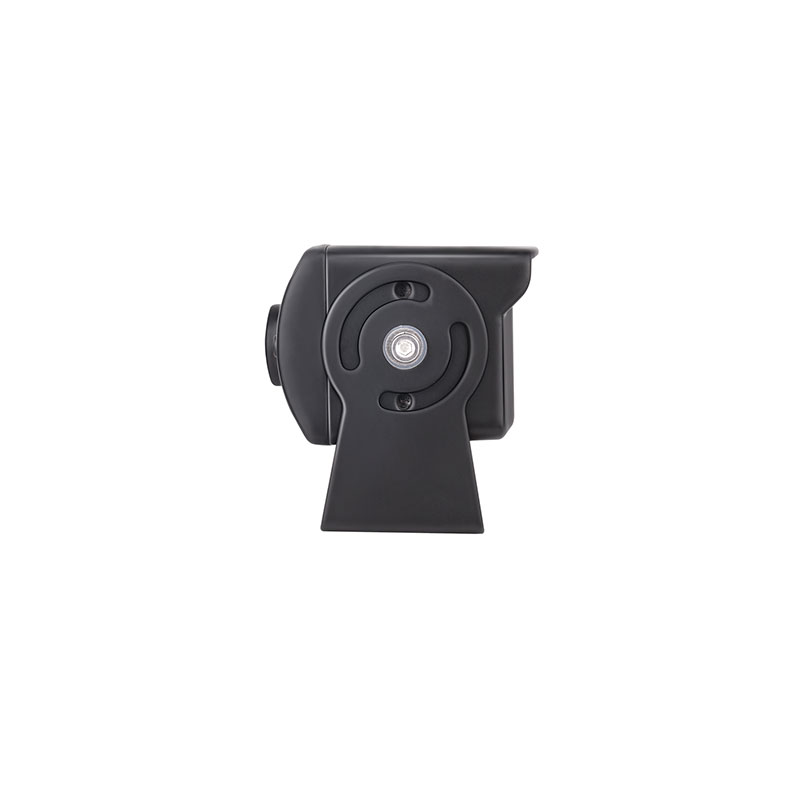

U-shaped + bilateral fastening support anti-seismic design
5G seismic rating is suitable for harsh roads
DC 12V operating voltage from rear view monitor
100% vacuum and nitrogen filling to prevent fogging
Cold resistant low impedance cable suitable for harsh ambient temperature
The aviation connection interface adopts sealing, waterproof, fastening and anti-seismic
Viewing window acrylic glass for anti-seismic
U-shaped + bilateral fastening support anti-seismic design
5G seismic rating is suitable for harsh roads
DC 12V operating voltage from rear view monitor
Parameter
TV System | NTSC/PAL |
Effective Pixels | N:968(H)×488(V) |
Sensing Area | 4.880mm*3.670mm |
Sync. System | Internal |
Resolution | 700 TVL |
Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
Microphone | Optional |
IR LED Qty | 18PCS |
Video Output | 1.0 Vp-p/75 Ohm |
Scanning System | interlace |
AGC | AUTO |
Signal to noise ratio | Better than 48dB |
White balance | AUTO |
Gamma Consumption | 0.45 |
Electronic Shutter | AUTO |
Backlight Compensation | AUTO |
Power Supply | DC12V |
Lens | 2.8mm |
Lens Angle | 120° |
Current Drain | 65±5mA |
Operating Temperature | -20℃-70℃,RH 95% MAX |
Storage Temperature | -30℃-80℃,RH 95% MAX |
