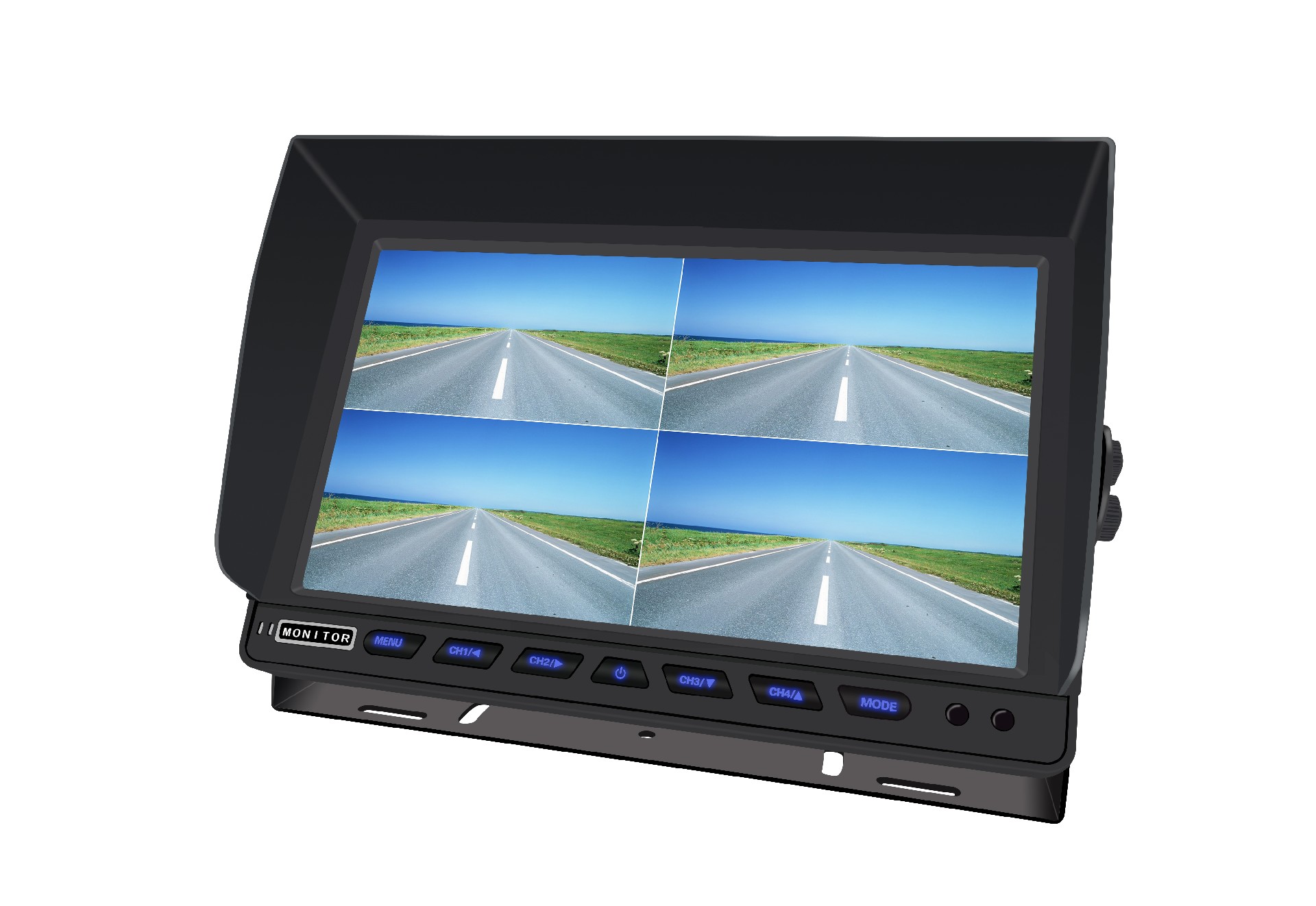

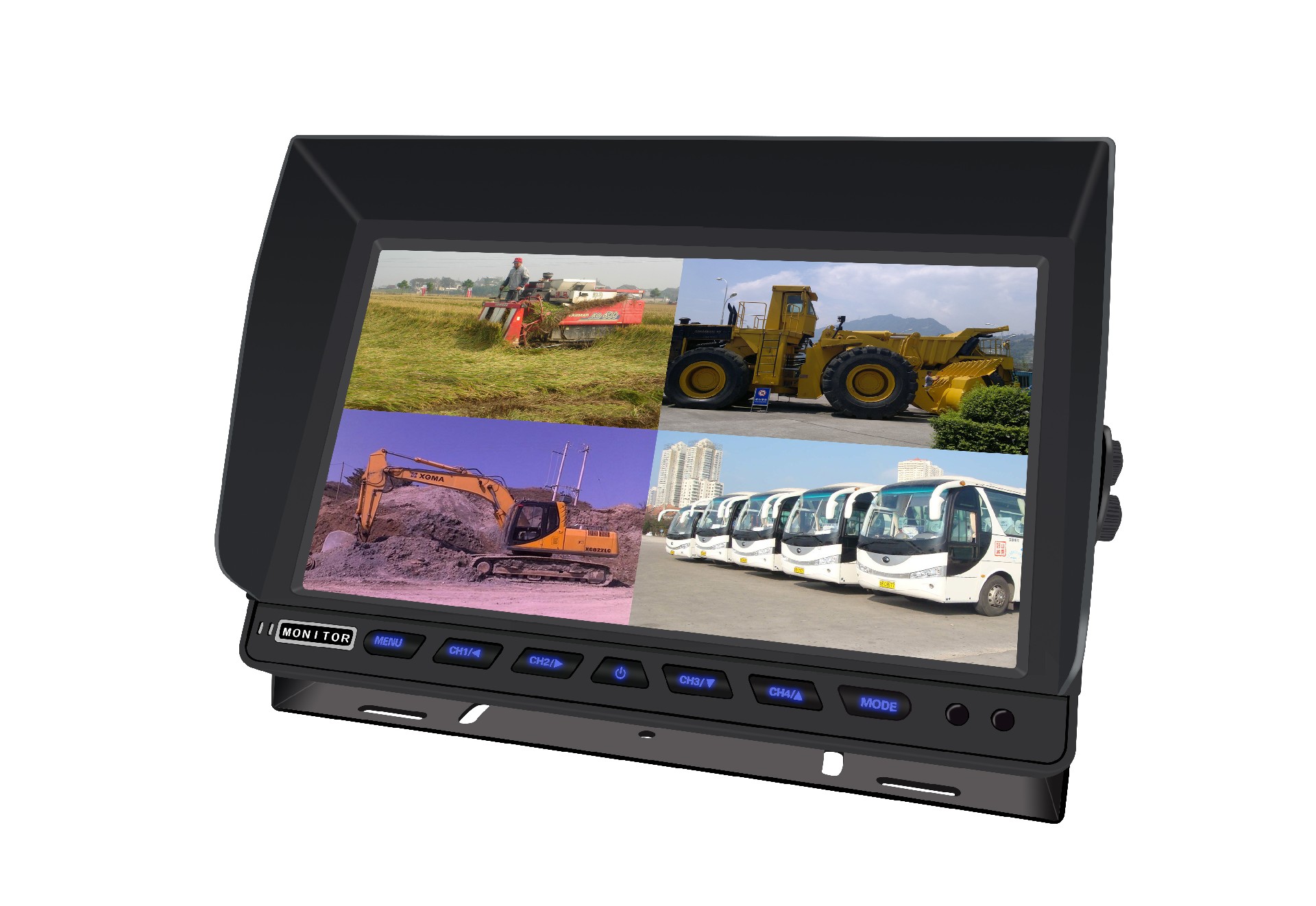

10 Inch HD Quad View Monitor
Model:MO-1010Q
Resolution 1024xRGBx600
Compatible system NTSC & PAL (automatically)
AV Inputs 4 way video input，
1 way audio input(Optional）
Number of Trigger and display 4 triggers
Montior AndCameraConnector RCA/ 4pin connector (Optional)
Other features 4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor
Screen Ratio | 10.1”high digital new panel ,16:9image |
Resolution | 1024xRGBx600 |
Compatible system | NTSC & PAL (automatically) |
OSD control | Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
View angle | Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
Image reversion | UP/Down and Left/Right |
Power requirement | 9-45V DC |
Power consumption | 7W |
Storage temperature | -30℃ to 80℃ |
Working temperature | -20℃ to 70℃ |
Size | 255*167*78MM (with shade) |
Exterior color | Black rubber oiling, &Metal,U type bracket |
AV Inputs | 4 way video input， 1 way audio input(Optional） |
Number of Trigger and display | 4 triggers |
Montior AndCameraConnector | RCA/ 4pin connector (Optional) |
Other features | 4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor |
Accessories | Remote controller, Power supply cable , User manual, Bracket |
