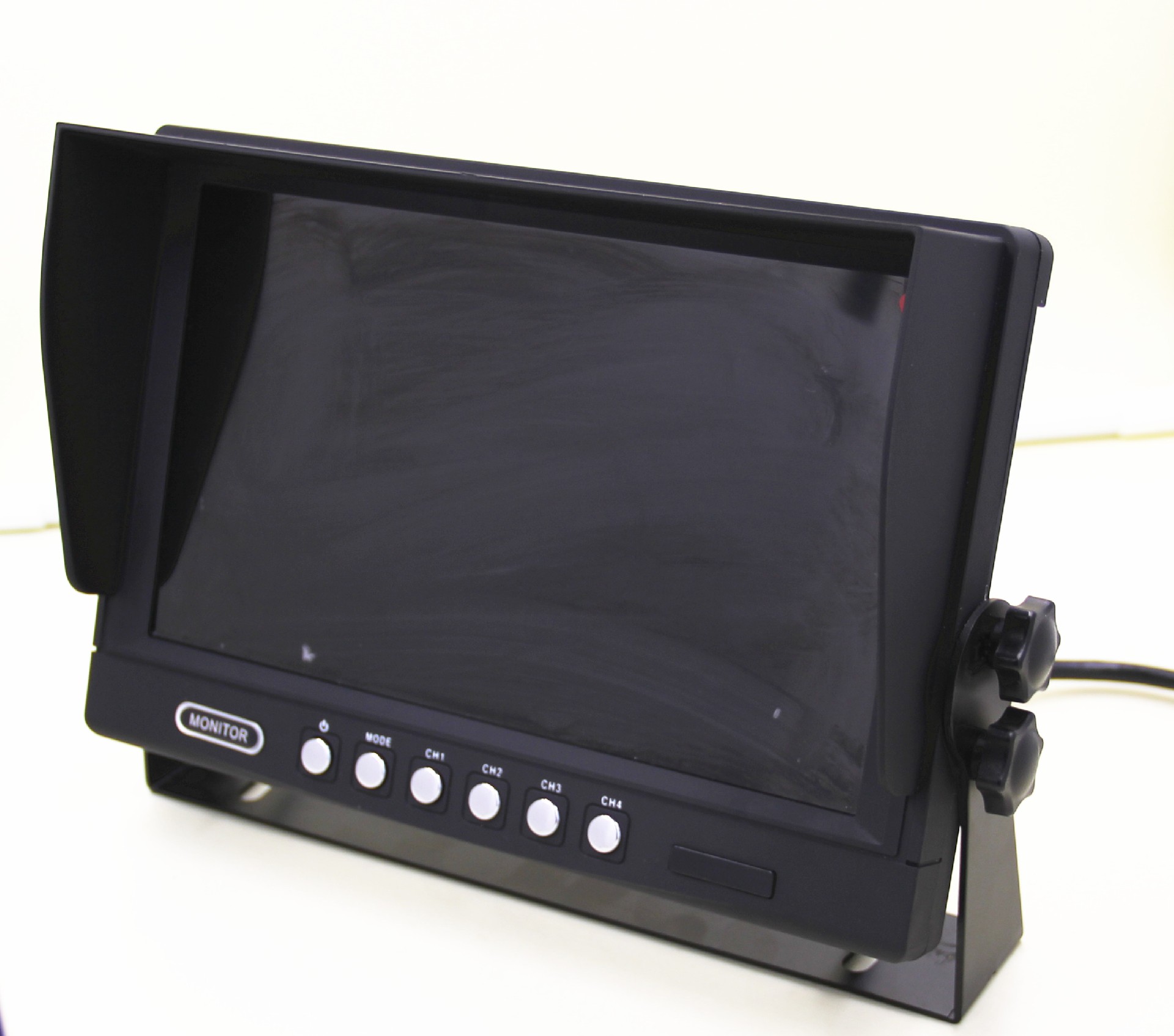

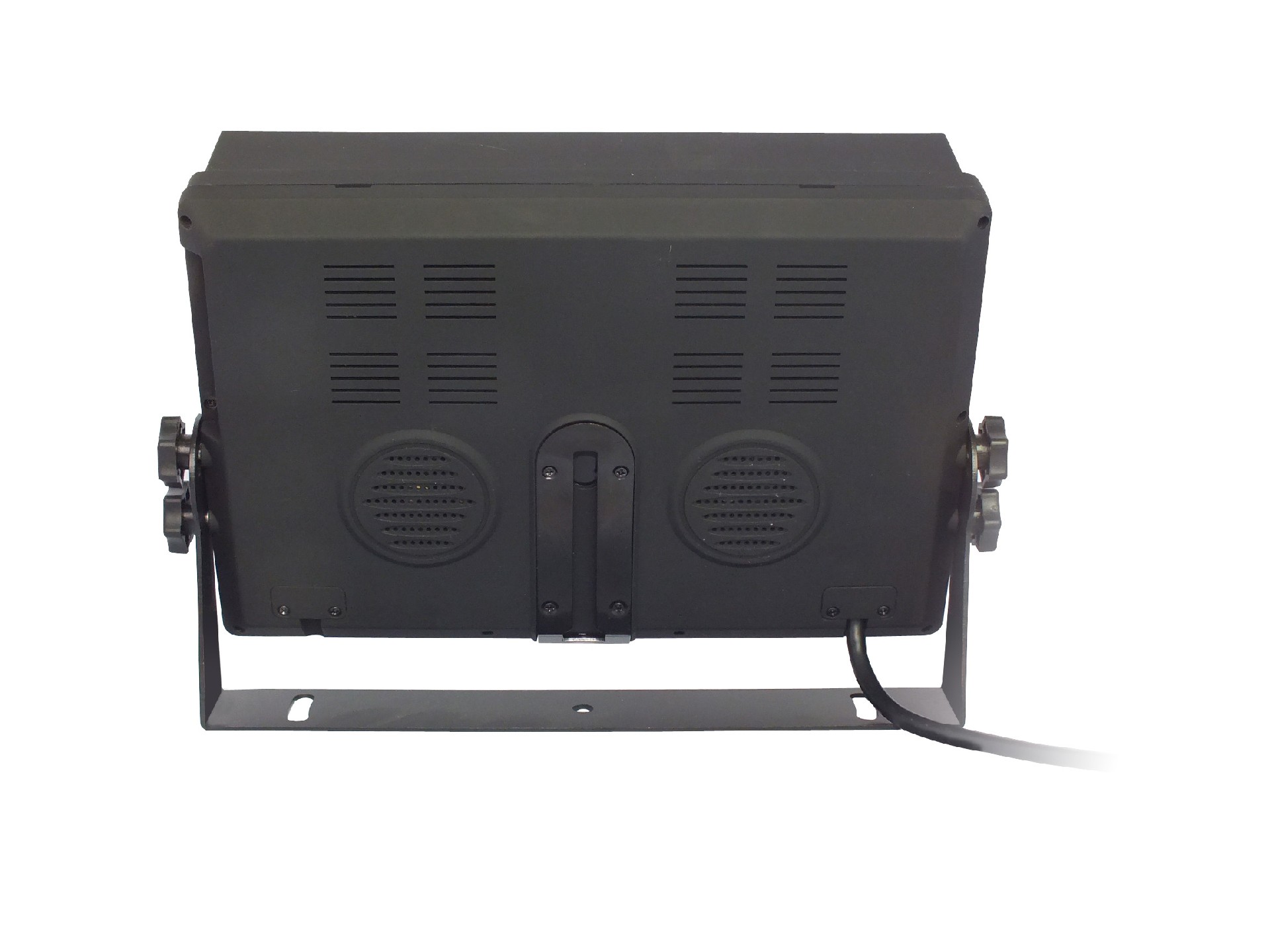

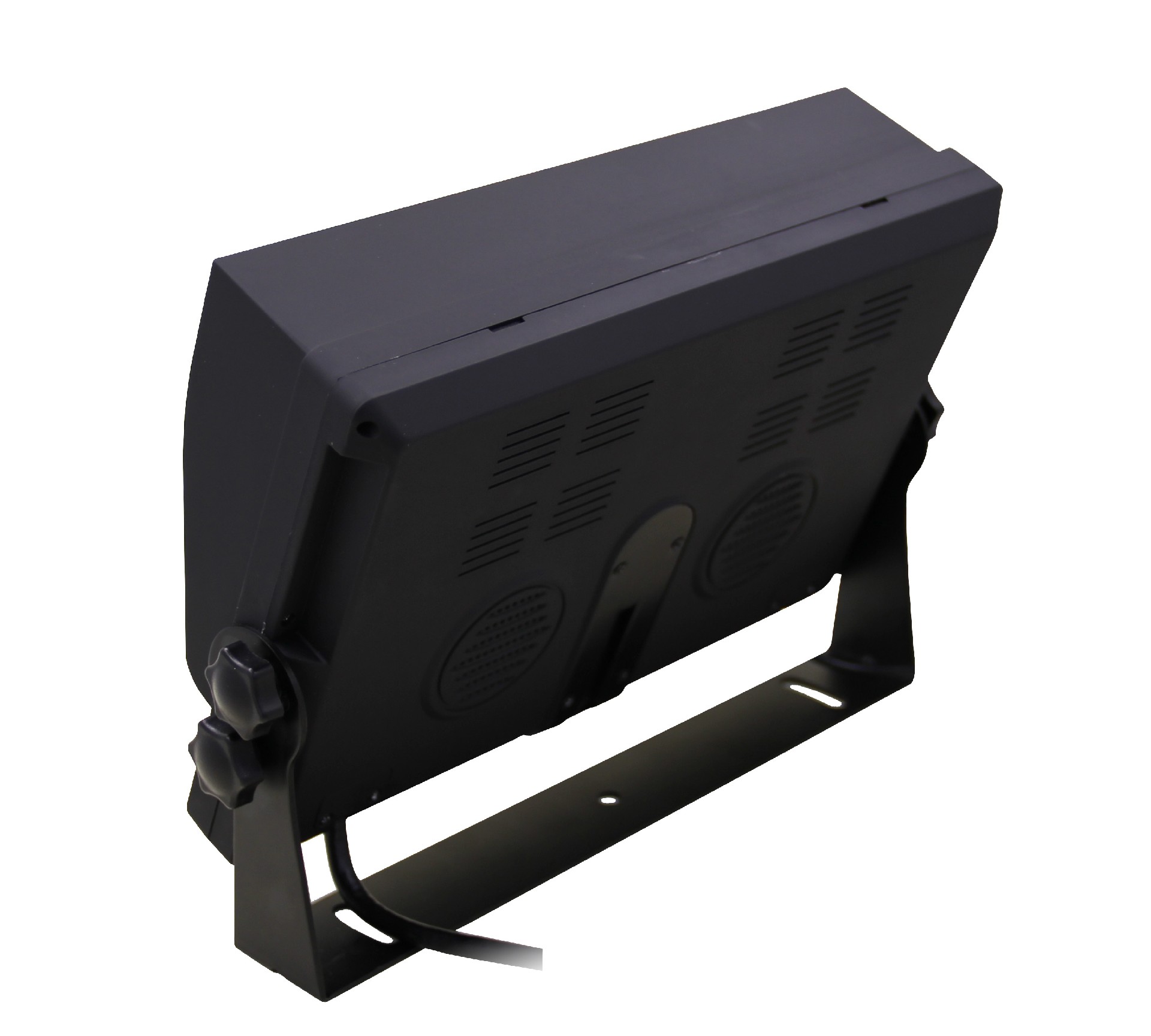

9 Inch Quad View Monitor
Model:MO-9030Q
Back Light Luminance LED, 250cd/㎡（350cd/㎡,optional)
Resolution 800xRGBx480
Compatible system NTSC & PAL (automatically)
AV Inputs 4 way video input，
1 way audio input(Optional）
Number of Trigger and display 4 triggers
MontiorAndCameraConnector RCA/ 4pin connector (Optional)
Other features 4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor
Screen Ratio | 9”high digital new panel ,16:9image |
Back Light Luminance | LED, 250cd/㎡（350cd/㎡,optional) |
Resolution | 800xRGBx480 |
Compatible system | NTSC & PAL (automatically) |
OSD control | Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
View angle | Hor. L(70) R(70) Ver. UP(60) DOWN(70) |
Image reversion | UP/Down and Left/Right |
Power requirement | 9-45V DC |
Power consumption | 7W |
Storage temperature | -30℃ to 80℃ |
Working temperature | -20℃ to 70℃ |
Size | 255*172*77MM (with shade) |
Exterior color | Black rubber oiling, &Metal,U type bracket |
AV Inputs | 4 way video input， 1 way audio input(Optional） |
Number of Trigger and display | 4 triggers |
MontiorAndCameraConnector | RCA/ 4pin connector (Optional) |
Other features | 4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor |

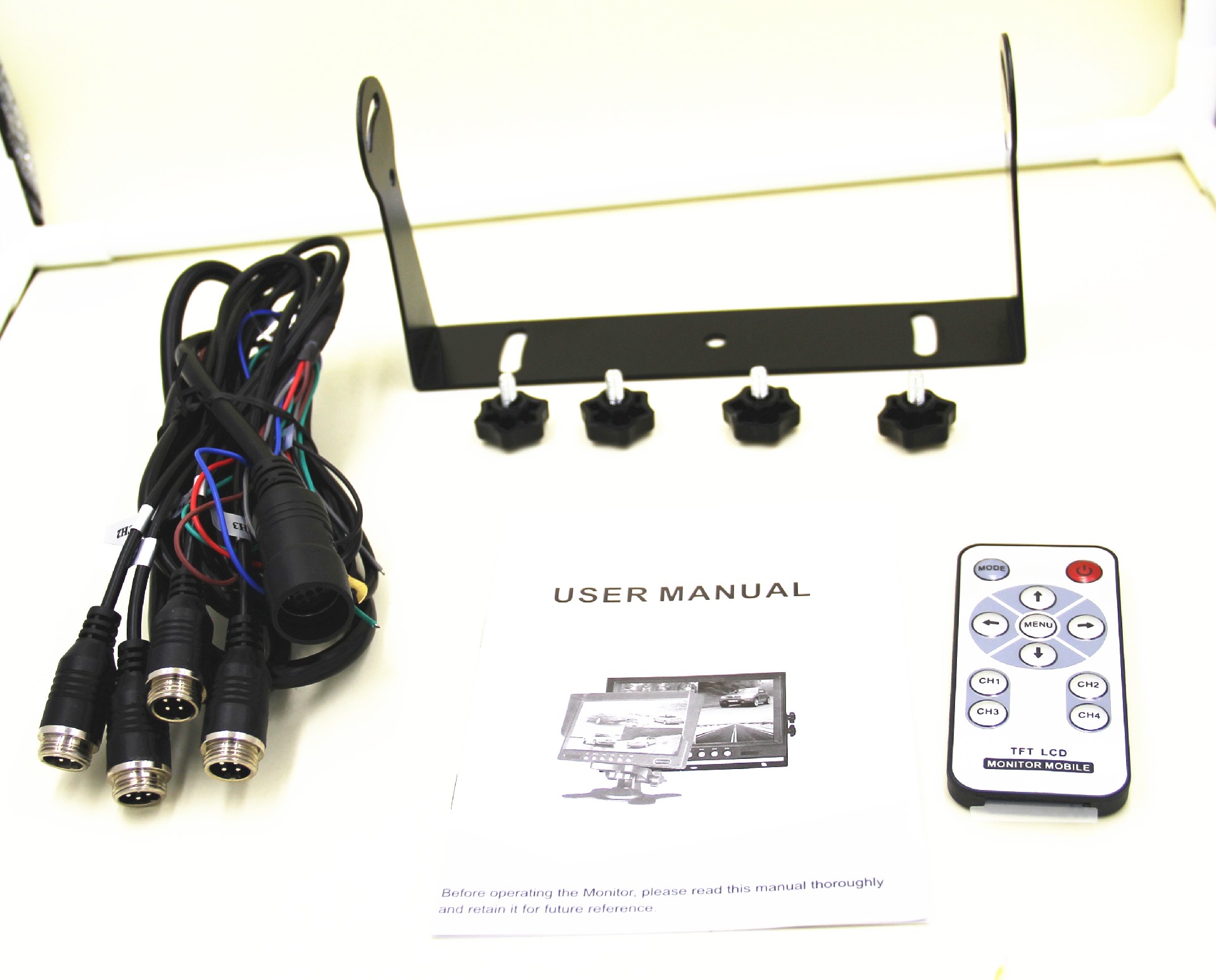

Accessories | Remote controller, Power supply cable , User manual, Bracket |
Package | 10pcs/box net weight:12.7KGS gross weight:13.5KGS M: 62.4*46*24cm |
