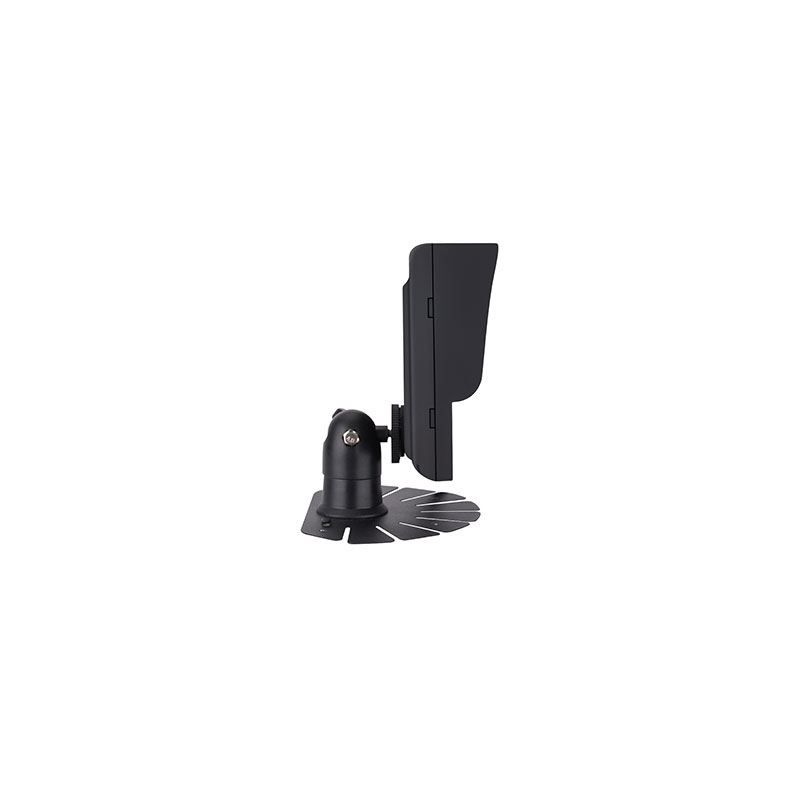

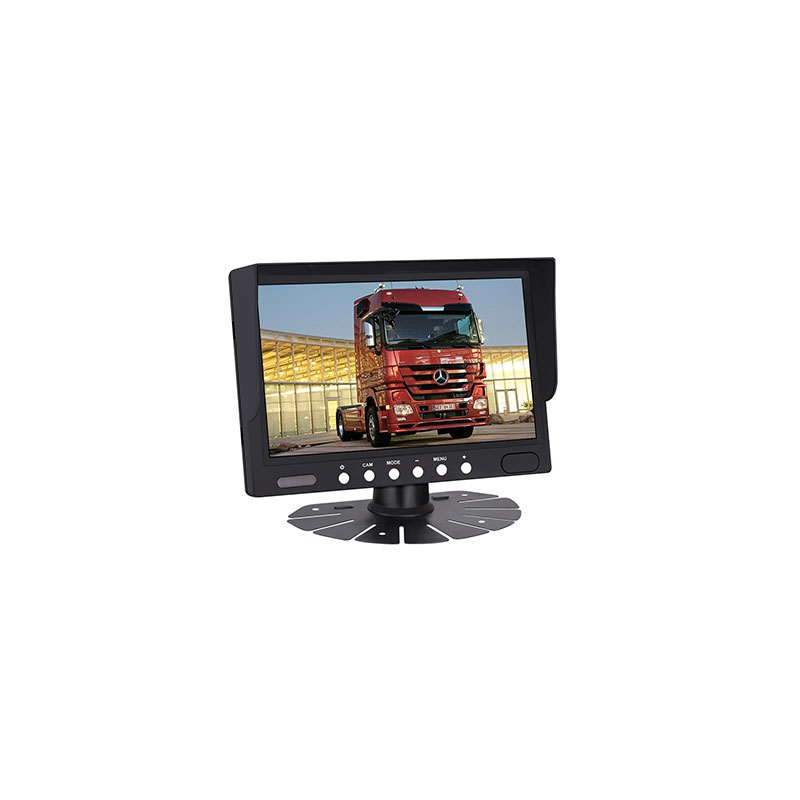

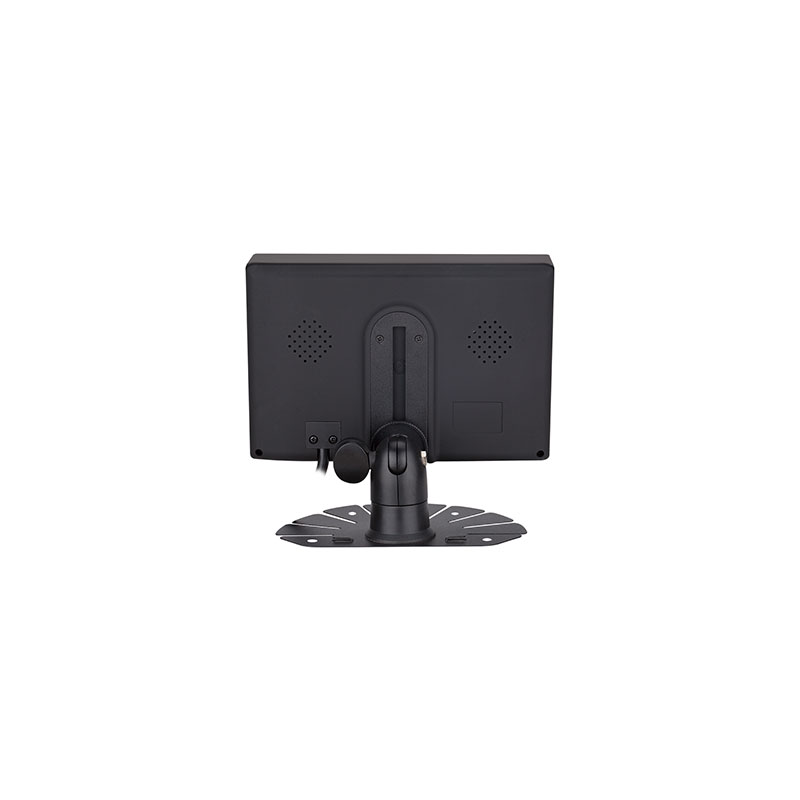

HD Backup Monitor
Model:MO-7120
*Screen size: 7 inch (diagonal length)
*Brand new panel, high resolution
*Wide screen display: 16:9
*2 ways video & 2 audio inputs
*PAL & NTSC auto switching
*Resolution: 1440x234 dots
*Power supply: DC 12 V/24V compatible
*Brand new panel, high resolution
*Wide screen display: 16:9
*2 ways video & 2 audio inputs
*PAL & NTSC auto switching
*Resolution: 1440x234 dots
*Power supply: DC 12 V/24V compatible
Features
*Built in speaker
*Remote control, OSD menu;
*RCA A/V connector input, 4 PIN connector (optional) for special camera.
*View angel range :(left/right)65°(top)40°(down)15°/DIV>
*Remote control, OSD menu;
*RCA A/V connector input, 4 PIN connector (optional) for special camera.
*View angel range :(left/right)65°(top)40°(down)15°/DIV>
Parameter
Screen Size | 7"/16：9 |
Resolution | 800（W）* R.G.B * 480(H) |
TV System | PAL/NTSC/AUTO |
Brightness | 300cd/㎡ |
Contrast | 500:1 |
Active Area | 154.08(W) × 85.92(H) mm |
Viewing Angle | U/D:50°/70°,R/L:70°/70° |
Image Settings | Brightness、Color、Contrast |
Video Format | CVBS |
Mirror Flip | Non-mirror, mirror, flip, mirror flip |
Video Channel | Two channel video input |
Reverse Function | Single way back (ruler setting function) |
Reversing Delayed | 0-15s |
Scale Function | Two scale ruler and automatic ruler switch |
Power Supply | 12/24V，DC/<6W |
Operating Temperature | -20℃ to +65℃ |
Storage Temperature | -25℃ to +70℃ |
