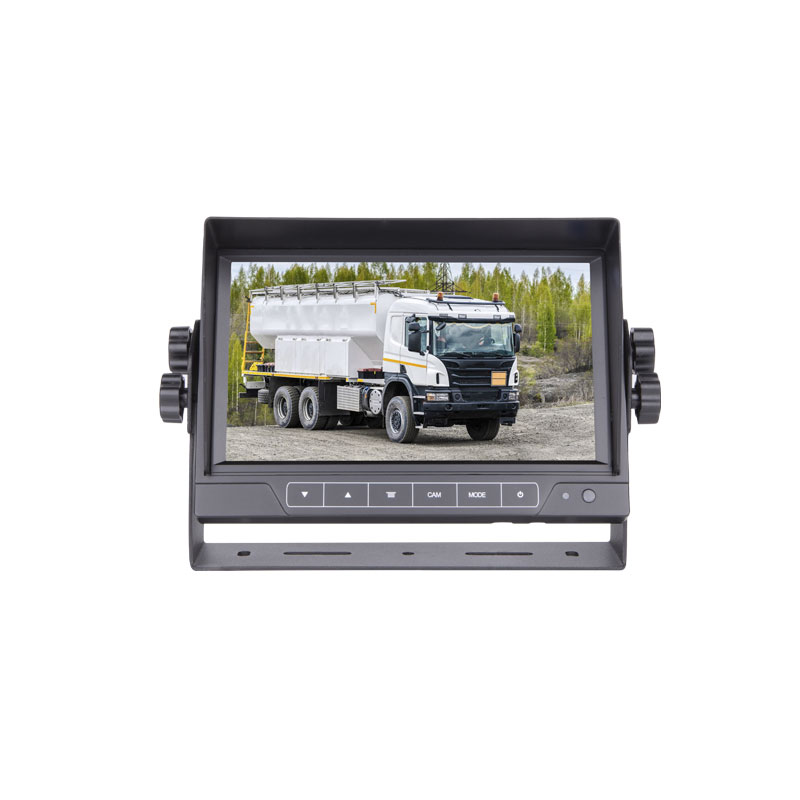

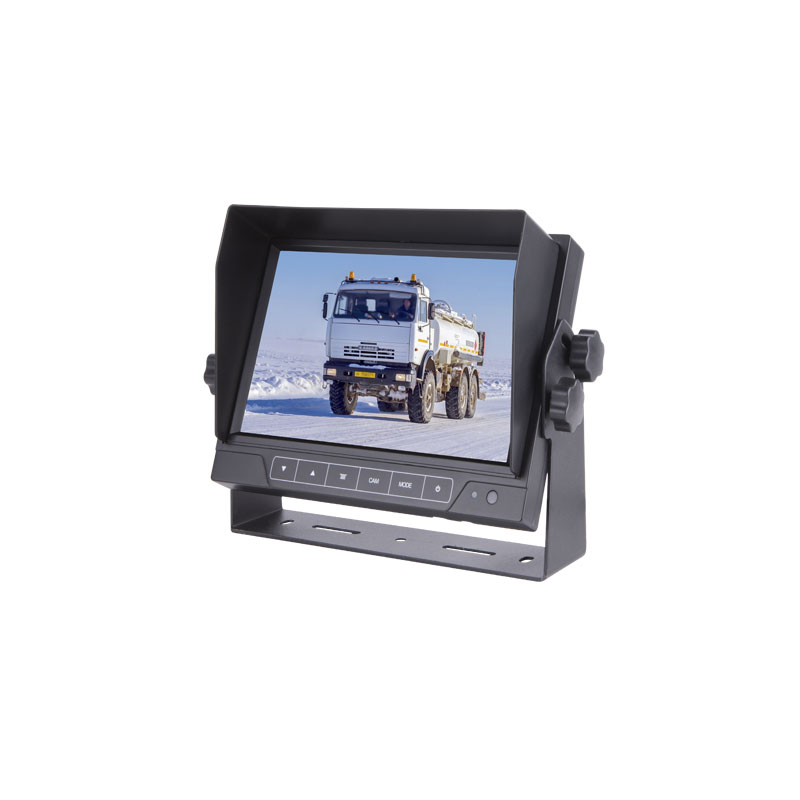

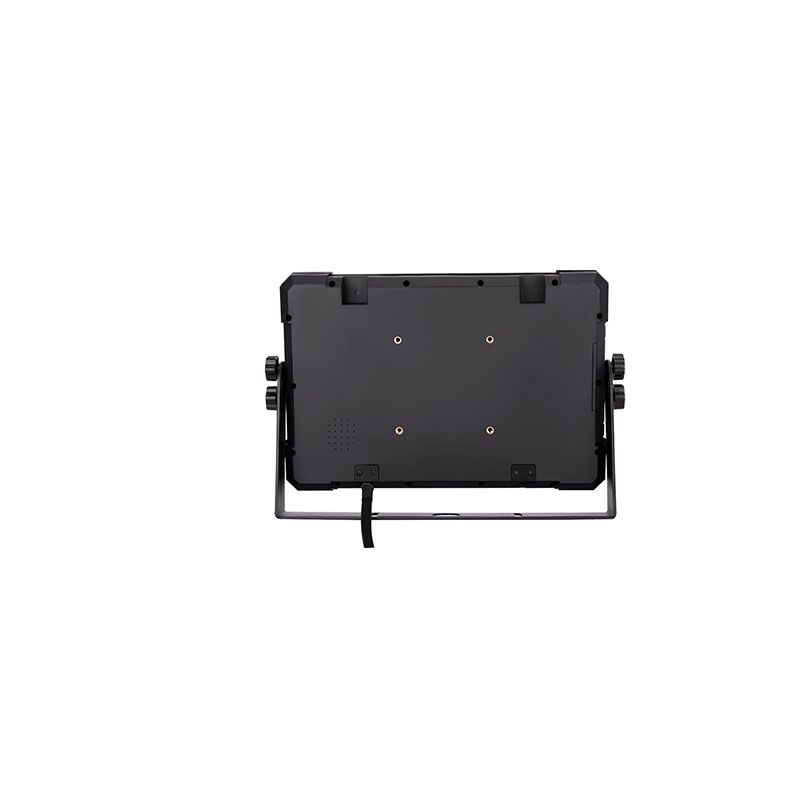

7 Inch Touch Button Rear View Monitor
Model:MO-7280
Video inputs 2-CH inputs
Screen size 7" digital LCD monitor
Type 16:9 wide screen
Resolution 800 R.G.B x480 dots
Color system AUTO
Power requirement 12/32V DC
Power consumption ≤8.64W
Operating temperature -10℃ to +65℃
Reverse guide Yes
MIRROR/NORMAL switch Yes
Reverse trigger Automatically
Screen size 7" digital LCD monitor
Type 16:9 wide screen
Resolution 800 R.G.B x480 dots
Color system AUTO
Power requirement 12/32V DC
Power consumption ≤8.64W
Operating temperature -10℃ to +65℃
Reverse guide Yes
MIRROR/NORMAL switch Yes
Reverse trigger Automatically
Features
7 inch digital LCD monitor, sunshades and U bracket
12-32V DC input
Automatic Trigger/manual switcher
Optional audio monitoring
Blue backlight for OSD buttons, Automatic brightness adjust
12-32V DC input
Automatic Trigger/manual switcher
Optional audio monitoring
Blue backlight for OSD buttons, Automatic brightness adjust
Parameter
Screen Size | 7"/16：9 |
Resolution | 1024（W）* R.G.B * 600(H) |
TV System | PAL/NTSC/AUTO |
Brightness | 300cd/㎡ |
Contrast | 400:1 |
Active Area | 154.08(W) × 85.92(H) mm |
Viewing Angle | U/D:40°/65°,R/L:65°/65° |
Image Settings | Brightness、Color、Contrast |
Video Format | AHD/CVBS |
Mirror Flip | Non-mirror, mirror, flip, mirror flip |
Video Channel | Two channel video input |
Reverse Function | Single way back (ruler setting function) |
Reversing Delayed | 0-15s |
Scale Function | Two scale ruler and automatic ruler switch |
Power Supply | 12/24V，DC/<9W |
Operating Temperature | -20℃ to +65℃ |
Application
Accessories
