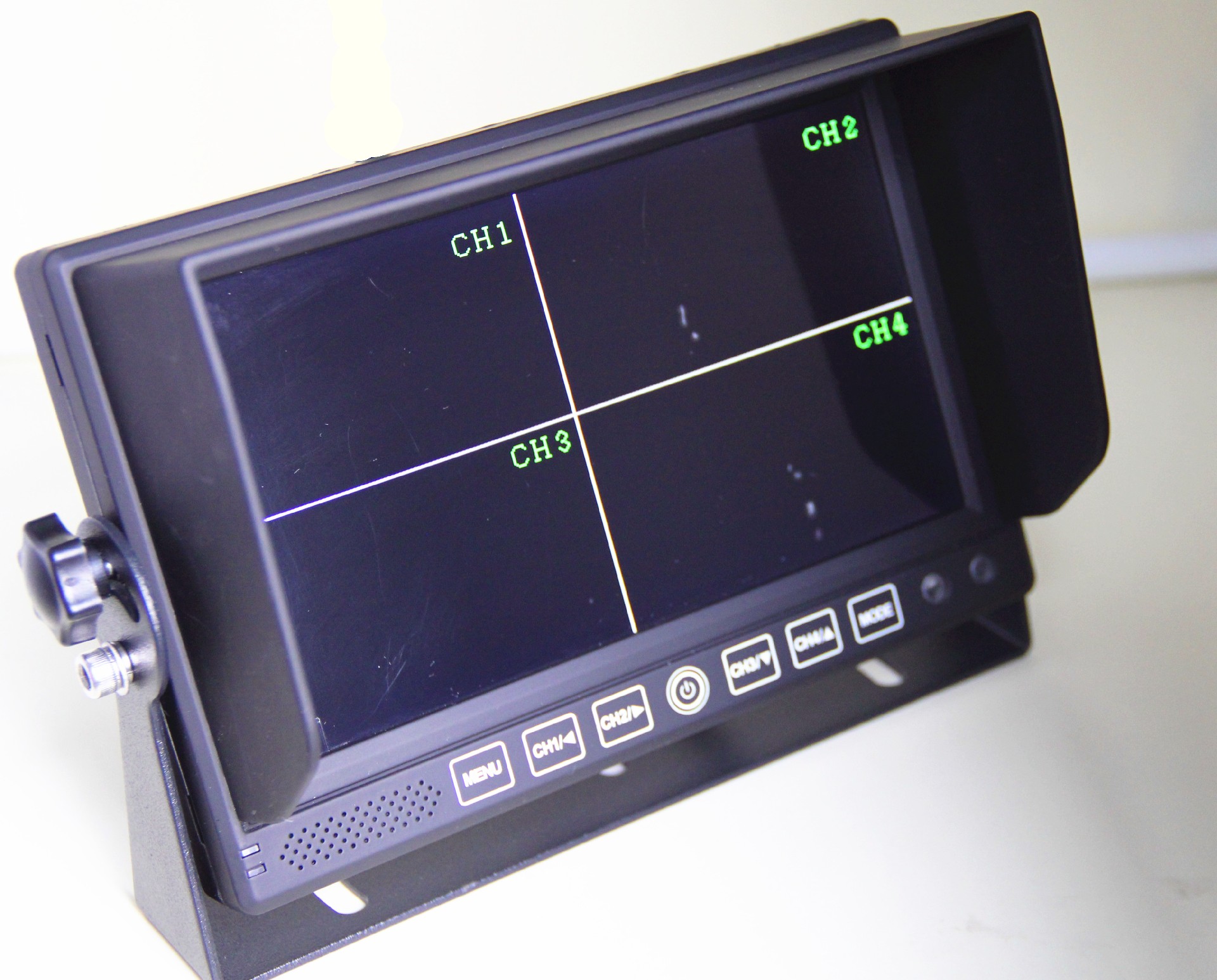

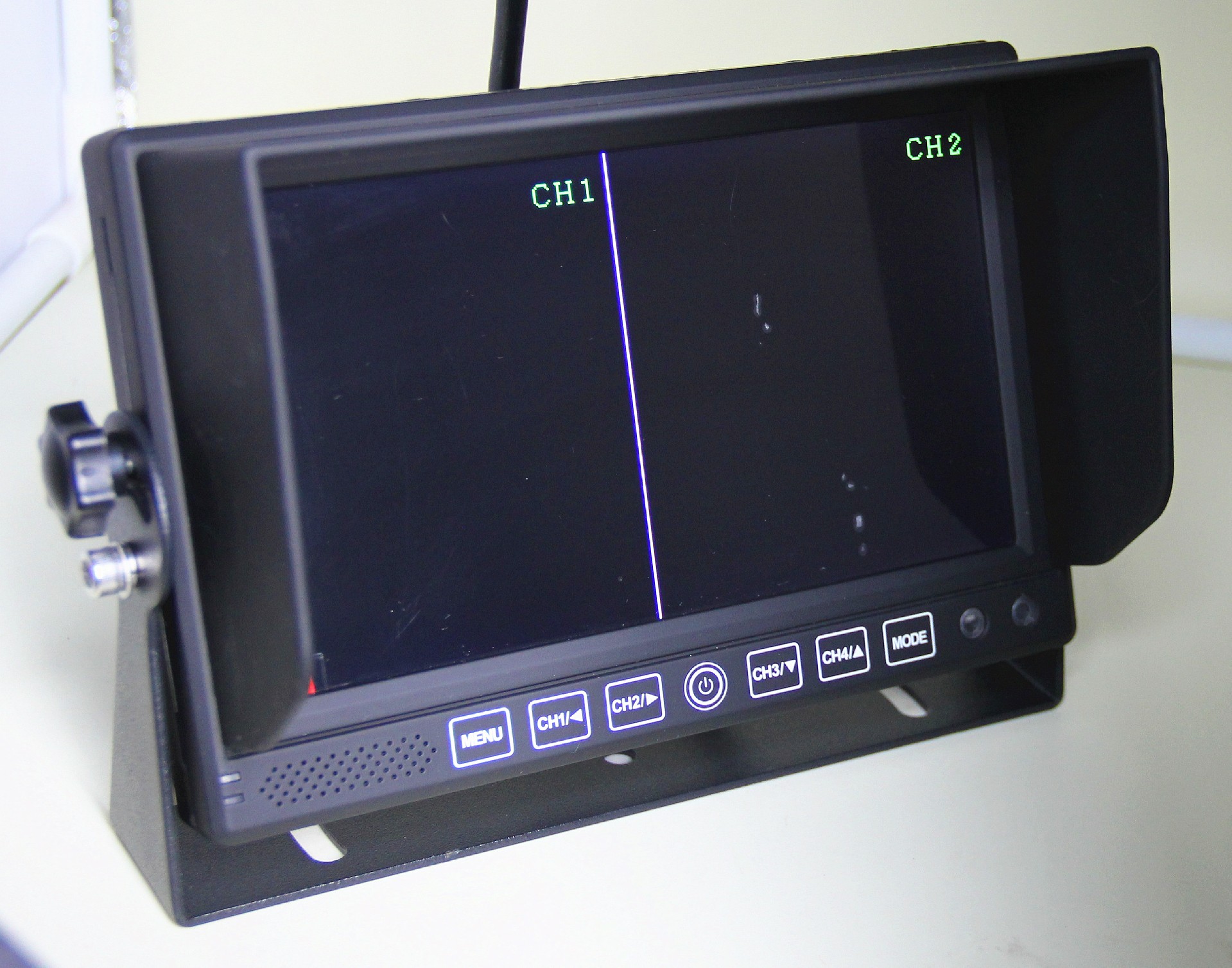

Quad View Monitor
Model:MO-7080Q
Back Light LED,400cd/㎡
Resolution 800xRGBx480
function Light sensor automatic adjustment
AV Inputs 4 way video input, 1 way audio input（quad images,2/3/4 images optional）
Number of Trigger and display 4 triggers
Monitor And Camera Connector RCA/ 4pin connector (Optional)
Screen Ratio | 7″high digital new panel ,16:9image |
Back Light | LED,400cd/㎡ |
Resolution | 800xRGBx480 |
function | Light sensor automatic adjustment |
Compatible system | NTSC & PAL (automatically) |
OSD control | Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
View angel | Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
Power requirement | 9-45V DC |
Power consumption | 7W |
Storage temperature | -30〜80℃ |
Working temperature | -20℃ to 70℃ |
Impact rating | 4G |
Size | 210*134*26(76)mm |
Exterior color | Black rubber oiling,Detachable sunshade&Metal,U type bracket |
AV Inputs | 4 way video input, 1 way audio input（quad images,2/3/4 images optional）
|
Number of Trigger and display | 4 triggers |
Monitor And Camera Connector | RCA/ 4pin connector (Optional) |
Accessories | Remote controller, Power supply cable , User manual, Bracket |
