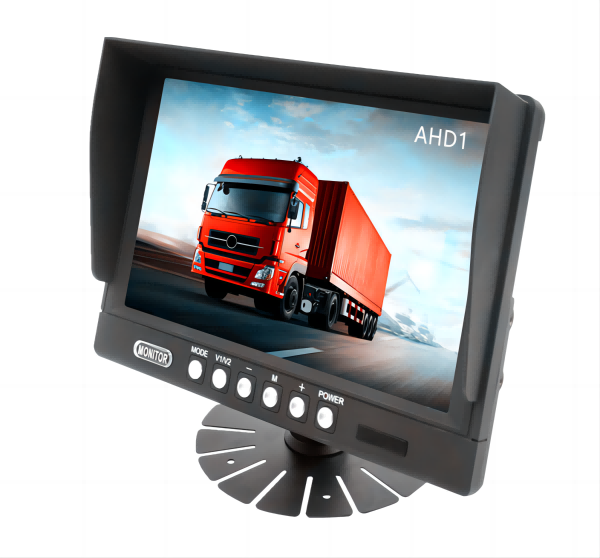

7 Inch HD Rear View Truck Monitor
Model:MO-7015
AV Resolution:1024*R.G.B*600，
Back Light Luminance：LED, 500-650cd/㎡
View angle: L/R:85°,UP:85°,down:85° degree
2 channel AHD video input, single image display,
support 720P/ 960P/1080P (Video Compatibility:（CVBS/ AHD)
Back Light Luminance：LED, 500-650cd/㎡
View angle: L/R:85°,UP:85°,down:85° degree
2 channel AHD video input, single image display,
support 720P/ 960P/1080P (Video Compatibility:（CVBS/ AHD)
Features
2 channel AHD video input, single image display, support 720P/ 960P/1080P (Video Compatibility:（CVBS/ AHD)
1 way audio input(V2)
Automatically switch to V2 when reversing，Reverse reference point
High-low voltage protection&short circuit protection
Suction Cup holder / Headrest frame (optional)
RCA/ 4pin connector (Optional)
1 way audio input(V2)
Automatically switch to V2 when reversing，Reverse reference point
High-low voltage protection&short circuit protection
Suction Cup holder / Headrest frame (optional)
RCA/ 4pin connector (Optional)
Parameter
7"9"inch AHD vehicle mounted display (Non - detachable )
AV Resolution | 1024*R.G.B*600 |
Back Light Luminance： | LED, 500-650cd/㎡ |
View angle | L/R 85°,UP85°,down 85° degree |
System | PAL&NTSC auto-switching |
Power supply | Automobile storage battery (12-36V) ，12V output |
Working temperature | -20℃ to 70℃ |
Storage temperature | -30℃ to 80℃ |
Appearance color | black rubber paint |
Standard： | Butterfly bracket |

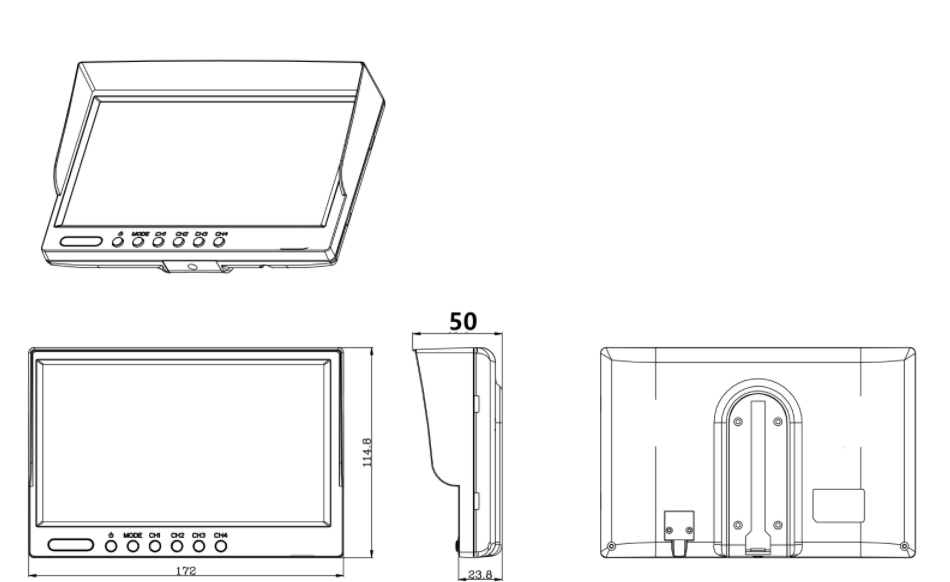

Dimension | 172*115*24mm(47) |
Application

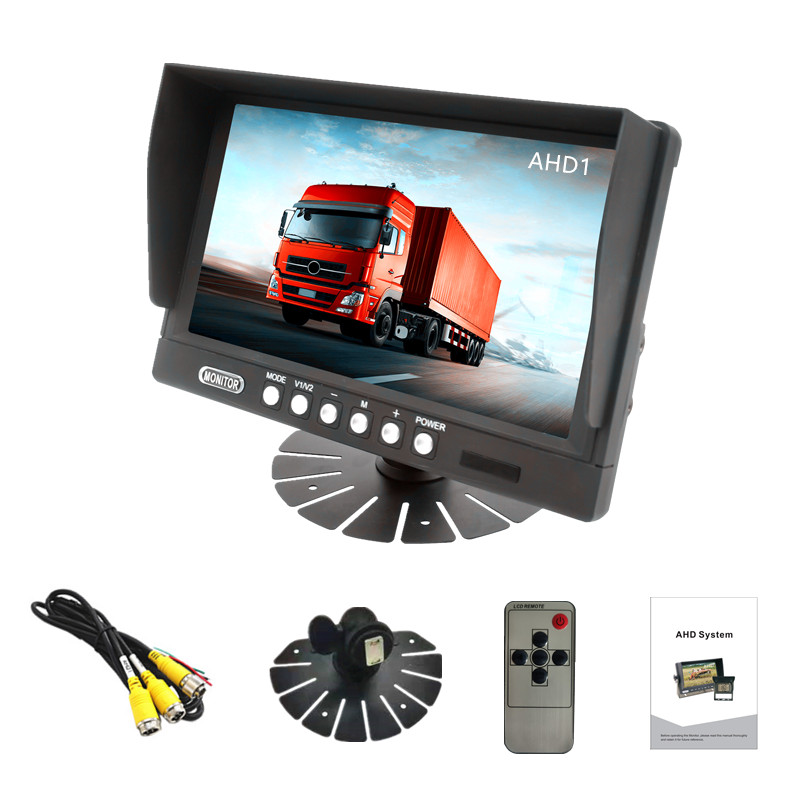

Accessories
