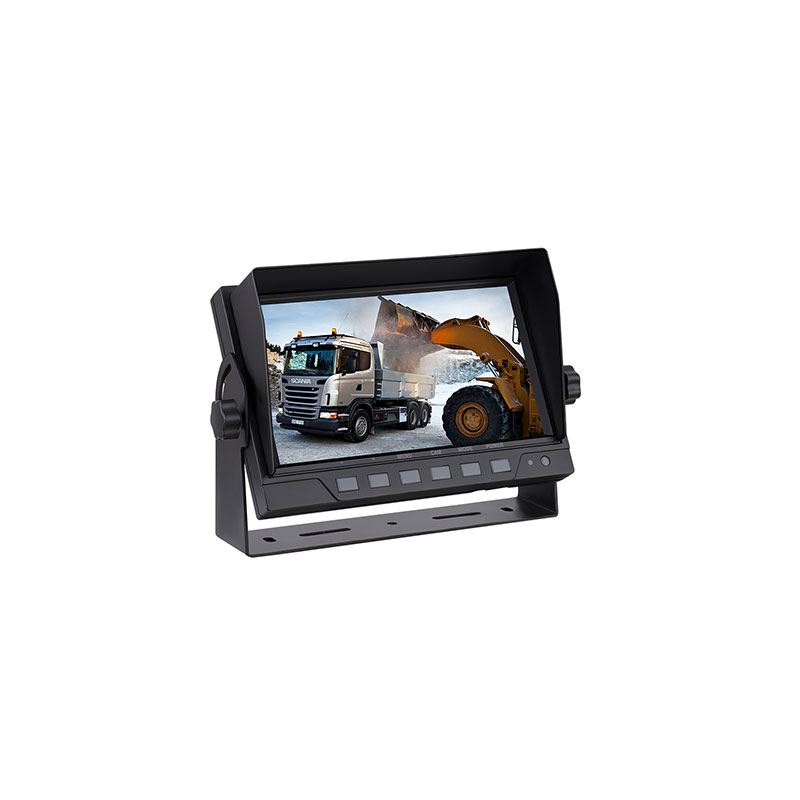

HD Reversing Monitor
Model:MO-7240
4CH 7 Inch Digital Color LCD monitor
* Resolution:800 X 3 X（RGB）X 480
* Brightness: 400cd/㎡; Contrast: 500 :1
* Rating: 20,000 hours
* Normal or mirrored picture can be switched separately on each camera
* The trigger delay time can be adjusted (0-4s) on each camera
* Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German with remote control
* Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
* Screen display mode can be switched the day mode & night mode by pressing button
* Self-protect of the DC voltage at the Short-Circuit.
* Working voltage: 12-32V
* Resolution:800 X 3 X（RGB）X 480
* Brightness: 400cd/㎡; Contrast: 500 :1
* Rating: 20,000 hours
* Normal or mirrored picture can be switched separately on each camera
* The trigger delay time can be adjusted (0-4s) on each camera
* Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German with remote control
* Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops.
* Screen display mode can be switched the day mode & night mode by pressing button
* Self-protect of the DC voltage at the Short-Circuit.
* Working voltage: 12-32V
Features
With speakers
With remote control function
Supports video input from 2 cameras at the same time
Support audio input from 1 camera at a time (optional)
Images can be flipped up and down from left to right
12/24V，DC/<6W
With remote control function
Supports video input from 2 cameras at the same time
Support audio input from 1 camera at a time (optional)
Images can be flipped up and down from left to right
12/24V，DC/<6W
Parameter
Screen Size | 7"/16：9 |
Resolution | 1024（W）* R.G.B * 600(H) |
TV System | AUTO |
Brightness | 300cd/㎡ |
Contrast | 500:1 |
Active Area | 154.08(W) × 85.92(H) mm |
Viewing Angle | U/D:40°/65°,R/L:65°/65° |
Image Settings | Brightness、Color、Contrast |
Video Format | AHD/CVBS |
Mirror Flip | Non-mirror, mirror, flip, mirror flip |
Video Channel | Two channel video input |
Reverse Function | Single way back (ruler setting function) |
Reversing Delayed | 0-15s |
Scale Function | Two scale ruler and automatic ruler switch |
Power Supply | 12/24V，DC/<9W |
Operating Temperature | -20℃ to +65℃ |
Storage Temperature | -25℃ to +70℃ |
Application
Accessories
