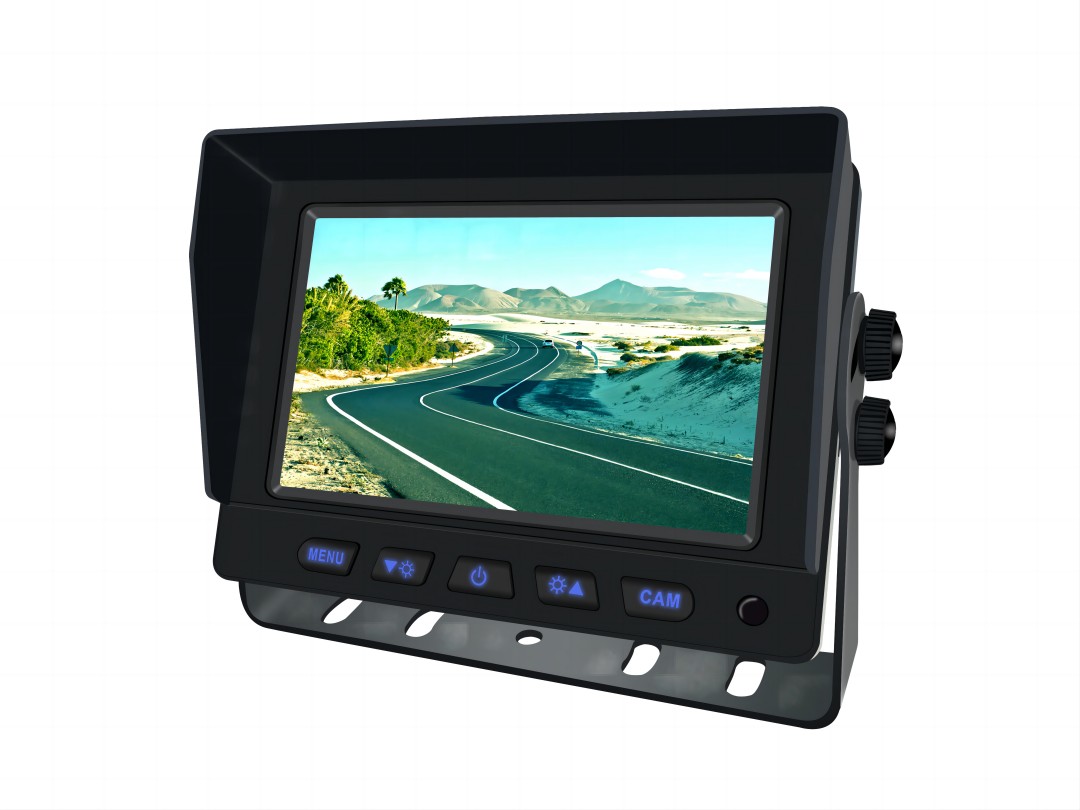

5 Inch Car Monitor
Model:MO-5050
5"inch AHD vehicle mounted display (Detachable sunshade)
AV Resolution:800*R.G.B*480 Back Light Luminance：LED, 500cd/㎡
View angle: L/R:70°,UP:50°,down: 70° degree
2channel HD video input, single image display,support720P/960P/1080P (Video Compatibility: CVBS /AHD)
AV Resolution:800*R.G.B*480 Back Light Luminance：LED, 500cd/㎡
View angle: L/R:70°,UP:50°,down: 70° degree
2channel HD video input, single image display,support720P/960P/1080P (Video Compatibility: CVBS /AHD)
Features
Audio Input：Built-in speaker，1 way audio input(V2)
Automatically switch to V2 when reversing，Reverse reference point
(optional)3 channel HD video input, single image display, support720P/960P/1080P (Video Compatibility: CVBS /AHD)
Audio Input：Built-in speaker，1 way audio input(V2)
3 ways Trig Trigger priority:V2>V1>V3
Reference point and time control for reverse gear setting
System:PAL&NTSC auto-switching
Power supply: Automobile storage battery (12-36V) ，12V output
Automatically switch to V2 when reversing，Reverse reference point
(optional)3 channel HD video input, single image display, support720P/960P/1080P (Video Compatibility: CVBS /AHD)
Audio Input：Built-in speaker，1 way audio input(V2)
3 ways Trig Trigger priority:V2>V1>V3
Reference point and time control for reverse gear setting
System:PAL&NTSC auto-switching
Power supply: Automobile storage battery (12-36V) ，12V output
Parameter
5"inch AHD vehicle mounted display (Detachable sunshade)
AV Resolution | 800*R.G.B*480 |
Back Light Luminance： | 70°,UP50°,down70° degree |
View angle | L/R 70°,UP50°,down70° degree |
Audio Input： | Built-in speaker，1 way audio input(V2) |
Compatibility | CVBS /AHD |
Audio Input： | Built-in speaker，1 way audio input(V2) |
3 ways Trig Trigger priority | V2>V1>V3 Reference point and time control for reverse gear setting |
System | PAL&NTSC auto-switching |
Power supply | Automobile storage battery (12-36V) ，12V output |
Working temperature | -20℃ to 70℃ Storage temperature-30℃ to 80℃ |
Appearance color | black rubber paint |
standard： | Metal U type bracket,detachable sunshade/Butterfly bracket/fan bracket (optional) |
Dimension | 140*102*26(56)mm |
Application

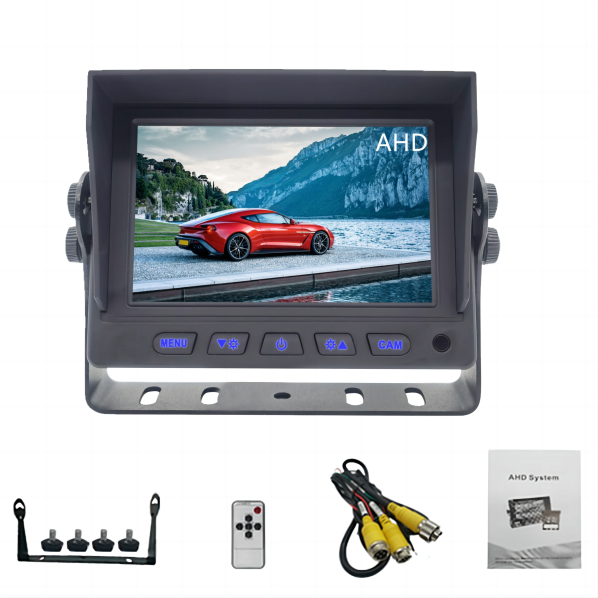

Accessories
