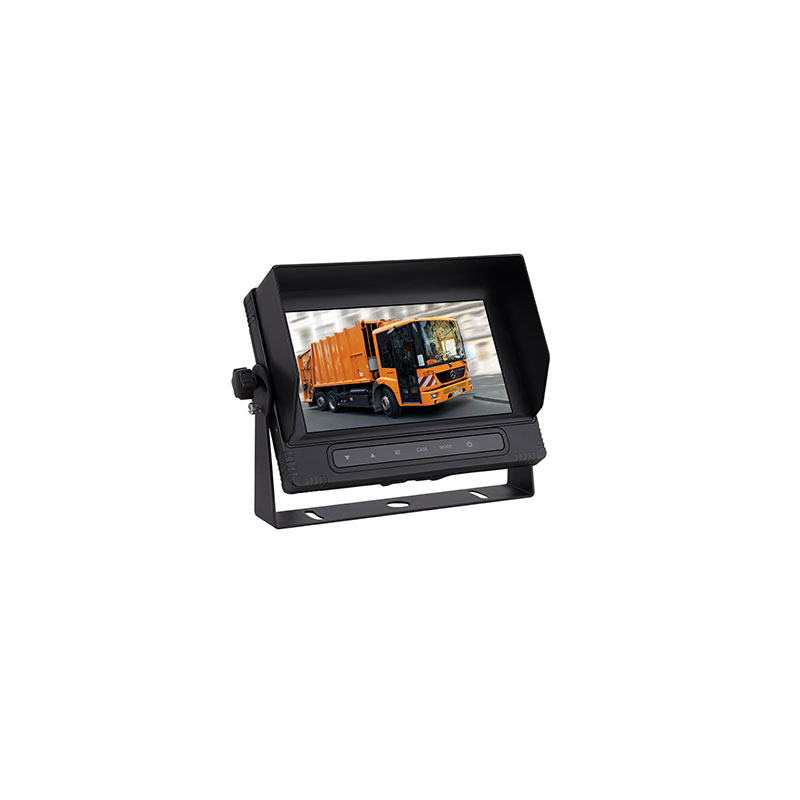

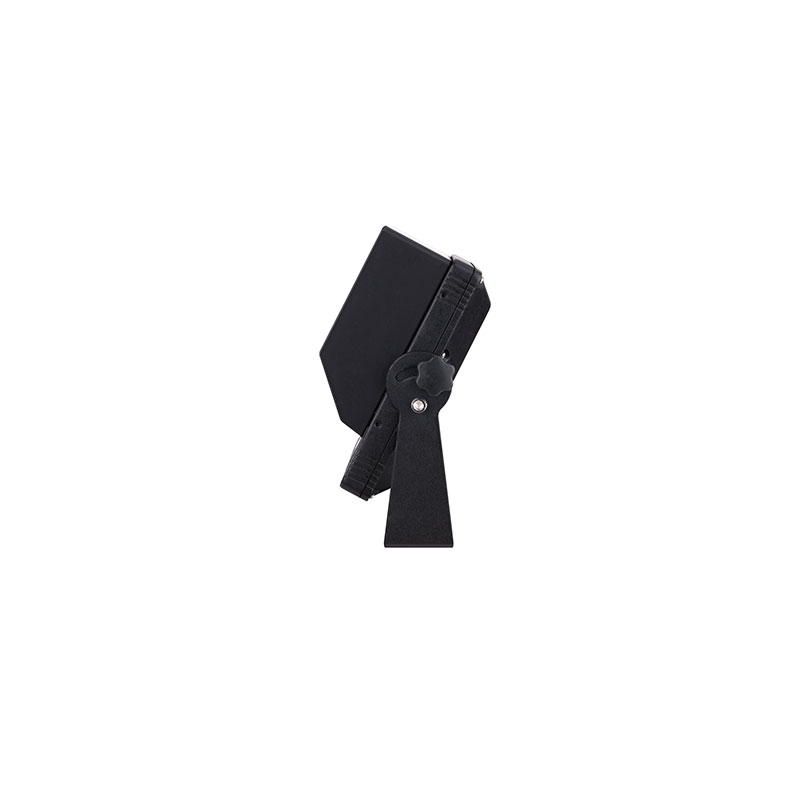

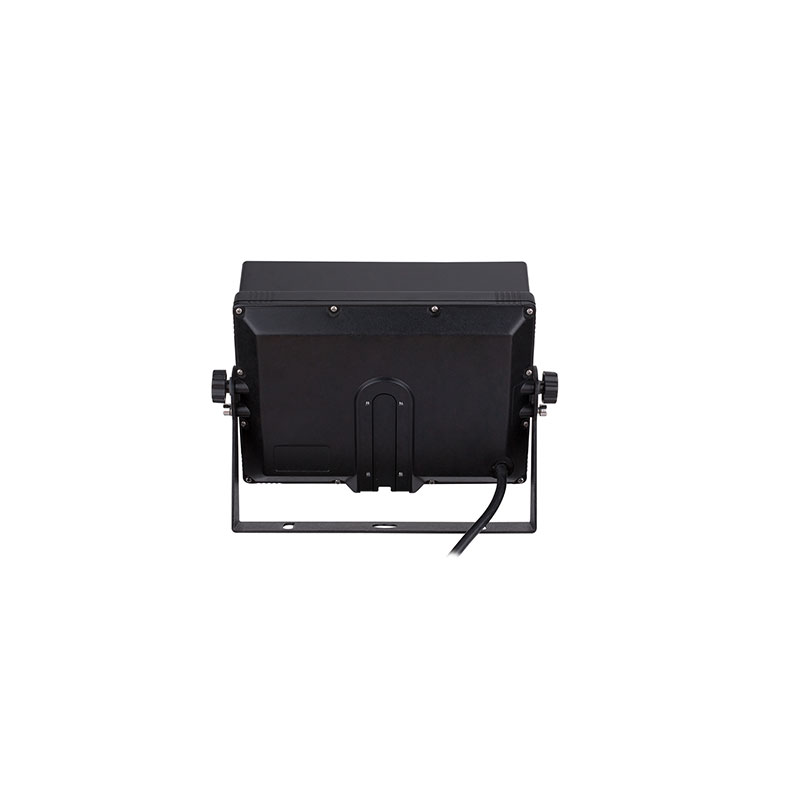

IP67 Waterproof Lcd Monitor
Model:MO-7720
Video inputs 2-CH inputs
Screen size 7" waterproof digital LCD monitor
Type 16:9 wide screen
Resolution 800 R.G.B x480 dots
Color system AUTO
Power requirement 12/32V DC
Power consumption ≤8.64W
Operating temperature -10℃ to +65℃
Reverse guide Yes
Screen size 7" waterproof digital LCD monitor
Type 16:9 wide screen
Resolution 800 R.G.B x480 dots
Color system AUTO
Power requirement 12/32V DC
Power consumption ≤8.64W
Operating temperature -10℃ to +65℃
Reverse guide Yes
Features
Waterproof IP67
With remote control function
Multi-languages of display available
Supports video input from 2 cameras at the same time
Images can be flipped up and down from left to right
With remote control function
Multi-languages of display available
Supports video input from 2 cameras at the same time
Images can be flipped up and down from left to right
Parameter
Screen Size | 7"/16：9 |
Resolution | 800（W）* R.G.B * 480(H) |
TV System | PAL/NTSC/AUTO |
Brightness | 300cd/㎡ |
Contrast | 500:1 |
Active Area | 154.08(W) × 85.92(H) mm |
Viewing Angle | U/D:50°/70°,R/L:70°/70° |
Image Settings | Brightness、Color、Contrast |
Video Format | CVBS |
Mirror Flip | Non-mirror, mirror, flip, mirror flip |
Video Channel | Two channel video input |
Reverse Function | Single way back (ruler setting function) |
Reversing Delayed | 0-15s |
Scale Function | Two scale ruler and automatic ruler switch |
Power Supply | 12/24V，DC/<9W |
Operating Temperature | -20℃ to +65℃ |
Storage Temperature | -25℃ to +70℃ |
