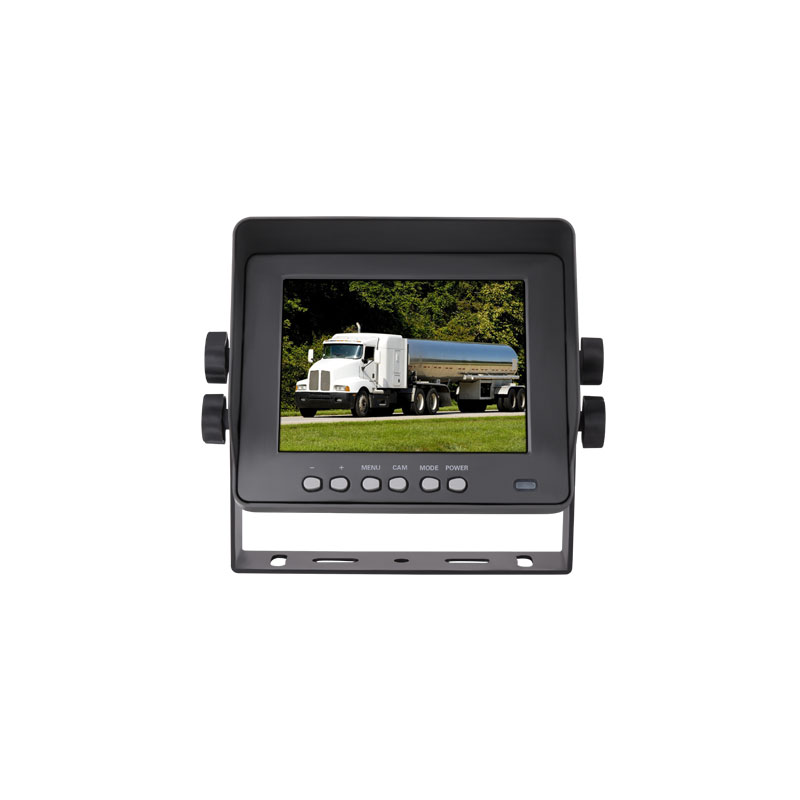

Waterproof Monitor
Model:MO-5120
Resolution:800*R.G.B*480 digital
Built in parking guide line
Color system: PAL/NTSC (auto switch)
Operated power: DC 12V~24V
2 Videos Input
Waterproof rate IP69K
Working environment: -20 ~ +70 degrees
Built in parking guide line
Color system: PAL/NTSC (auto switch)
Operated power: DC 12V~24V
2 Videos Input
Waterproof rate IP69K
Working environment: -20 ~ +70 degrees
Features
Waterproof, IP69K
Full aluminum alloy housing, Heavy duty
Support two camera inputs
With remote controller
Single View
7 languages OSD display
PAL/NTSC optional, MIRROR/NORMAL image optional
Automatically turn on when the reversing gear is engaged
With high-low voltage protection and short circuit protection
Full aluminum alloy housing, Heavy duty
Support two camera inputs
With remote controller
Single View
7 languages OSD display
PAL/NTSC optional, MIRROR/NORMAL image optional
Automatically turn on when the reversing gear is engaged
With high-low voltage protection and short circuit protection
Parameter
Screen Size | 5"/4:3 |
Resolution | 640*480 |
TV System | PAL/NTSC/AUTO |
Brightness | 400cd/㎡ |
Contrast | 500:1 |
Active Area | 117.65(W) × 76.17(H) mm |
Viewing Angle | U/D:50°/70°,R/L:70°/70° |
Image Settings | Brightness、Color、Contrast |
Video Format | CVBS |
Mirror Flip | Non-mirror, mirror, flip, mirror flip |
Video Channel | Two channel video input |
Reverse Function | Single way back |
Scale Function | 2-way ruler, automatic switching of ruler |
Power Supply | 12/24V，DC/<9W |
Operating Temperature | -20℃ to +65℃ |
