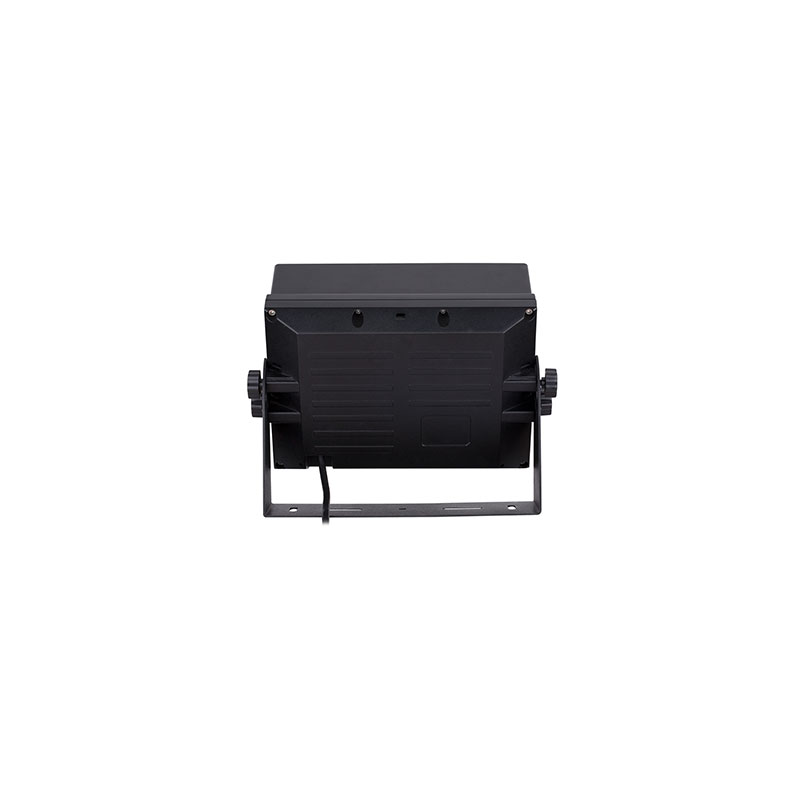

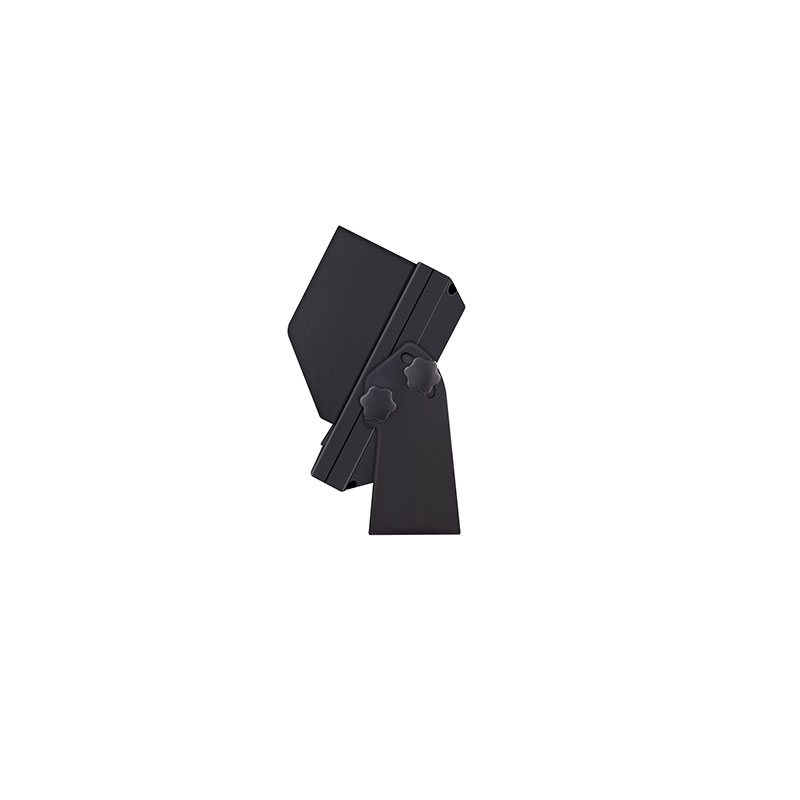

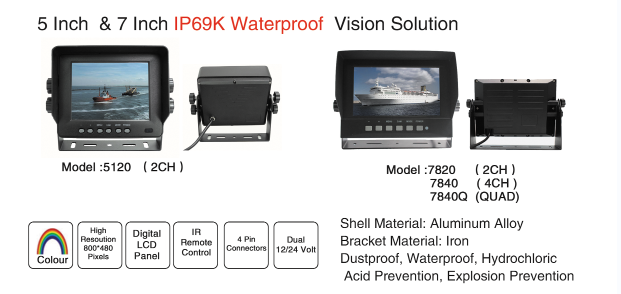

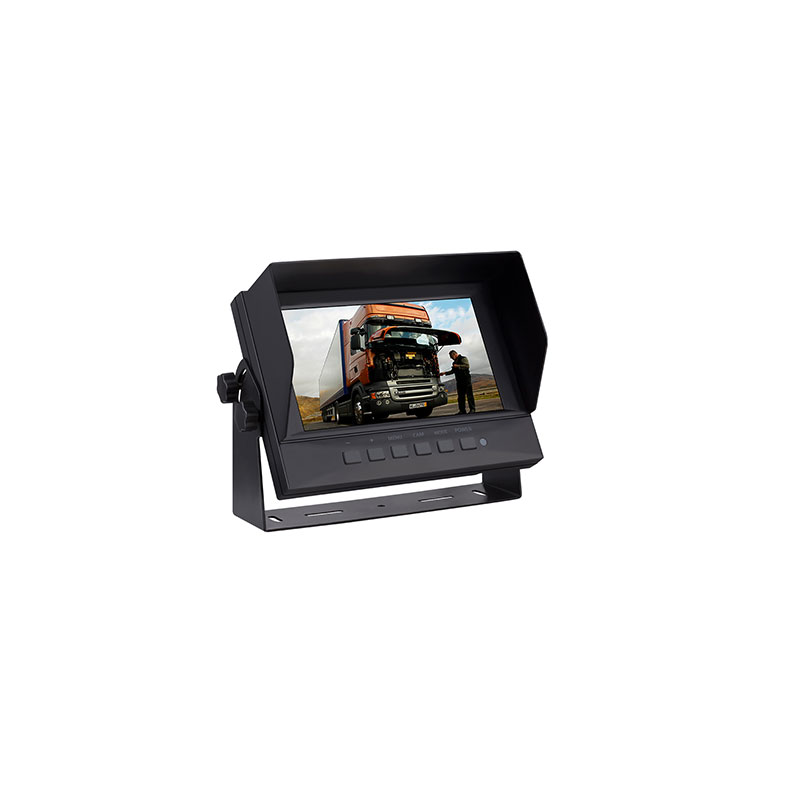

7 Inch Waterproof Monitor
Model:MO-7820
Waterproof, IP69K
Full aluminium alloy housing, Heavy duty
Support two camera input/4 cameras input split display
With remote controller
7 languages OSD display
PAL/NTSC
MIRROR/NORMAL image adjustable
12-24 VDC
for extreme environment application scene. Such as high humidity, low temperatures, outdoor vehicle, underwater purpose etc.
IP69K
With speakers
With remote control function
Multi-languages of display available
support both 2 channels video input
and 4 channels video input
with split display, triple display, dual display, single display and alternate switch display function.
Screen size: | 7 inches | |
Waterproof rating | IP69K | |
Screen size ratio | 16 : 9 | |
Resolution: | 800 x R.G.B x 480 dots | |
Brightness: | 400cd/m2 | |
Contrast: | 500 : 1 | |
Viewing angle: | U: 50/ D: 60, R/L: 70 Degree | |
TV system | NTSC / PAL | |
Video input: | 2CHs video input | |
Display mode | Switch, interval | |
Mirroring support | Horizontal/Vertical 180 degree turned | |
Parking guide line | Adjust when camera finished install | |
Reference distance unit | Feet/Meter | |
Video delay display | 1-20 second (after triggered) | |
Menu language | English, French, Russian, Spanish, Portuguese, Italian, German | |
Panel light source | LED | |
Connector type | M12 4pins male connector / RCA Female | |
Power supply: | 12~24VDC | |
Output voltage | 12VDC | |
Power consumption | Less than 7W | |
Bracket: | U-type bracket | |
Outer dimension: | 223mm x 163mm x 55mm (Max) | |
Net weight | 1800g |
